Home >> Scion >> 2005 >> xB Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Engine Hood/Door >> Back Door >> Components

Back Door: Components

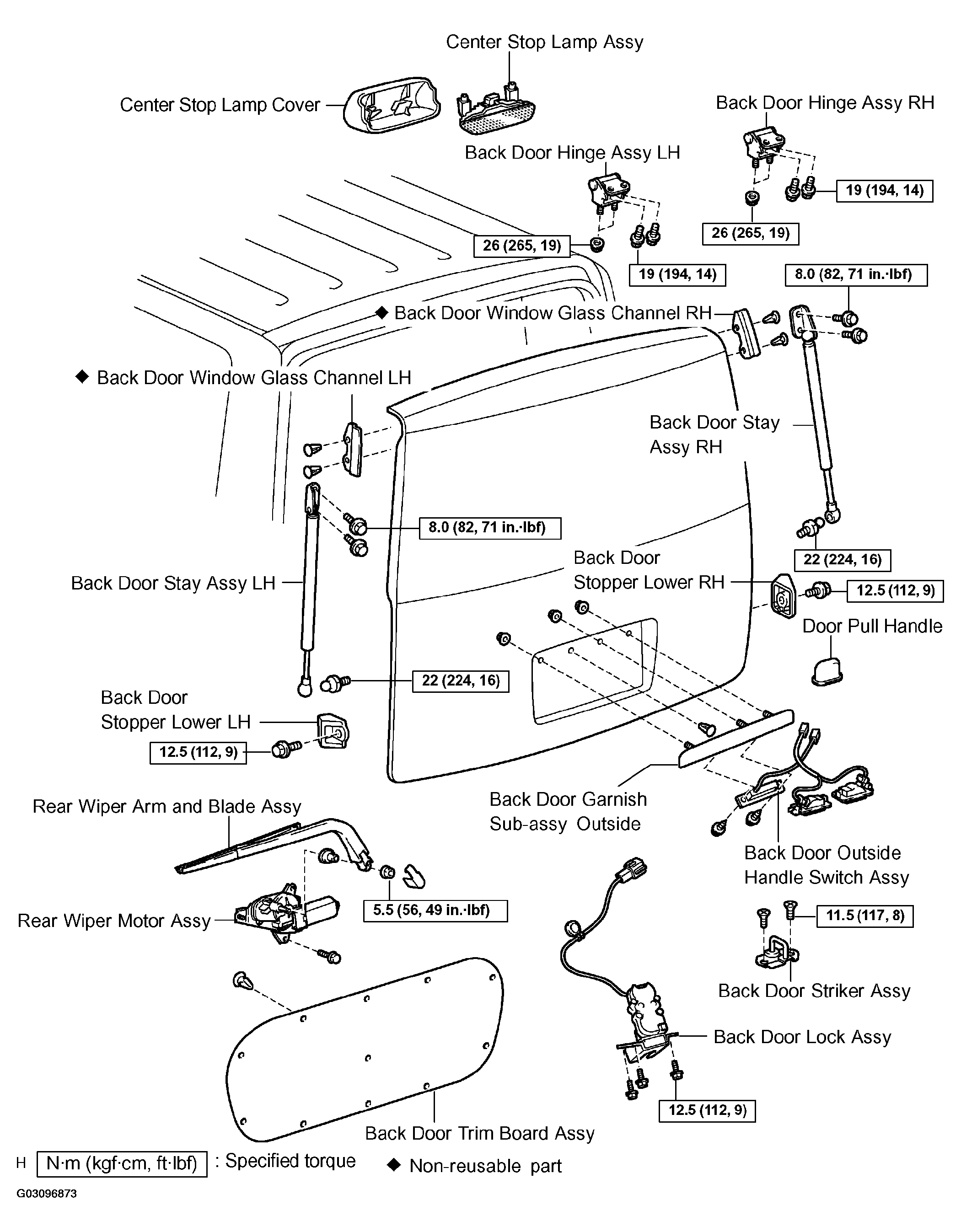

Fig 1: Identifying Back Door Components

G03096873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
