lemon-mirror
:
Home
>>
Scion
>>
2006
>>
tC Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield/Window Glass
>>
Power Window Control System
>>
Parts Location
Parts Location

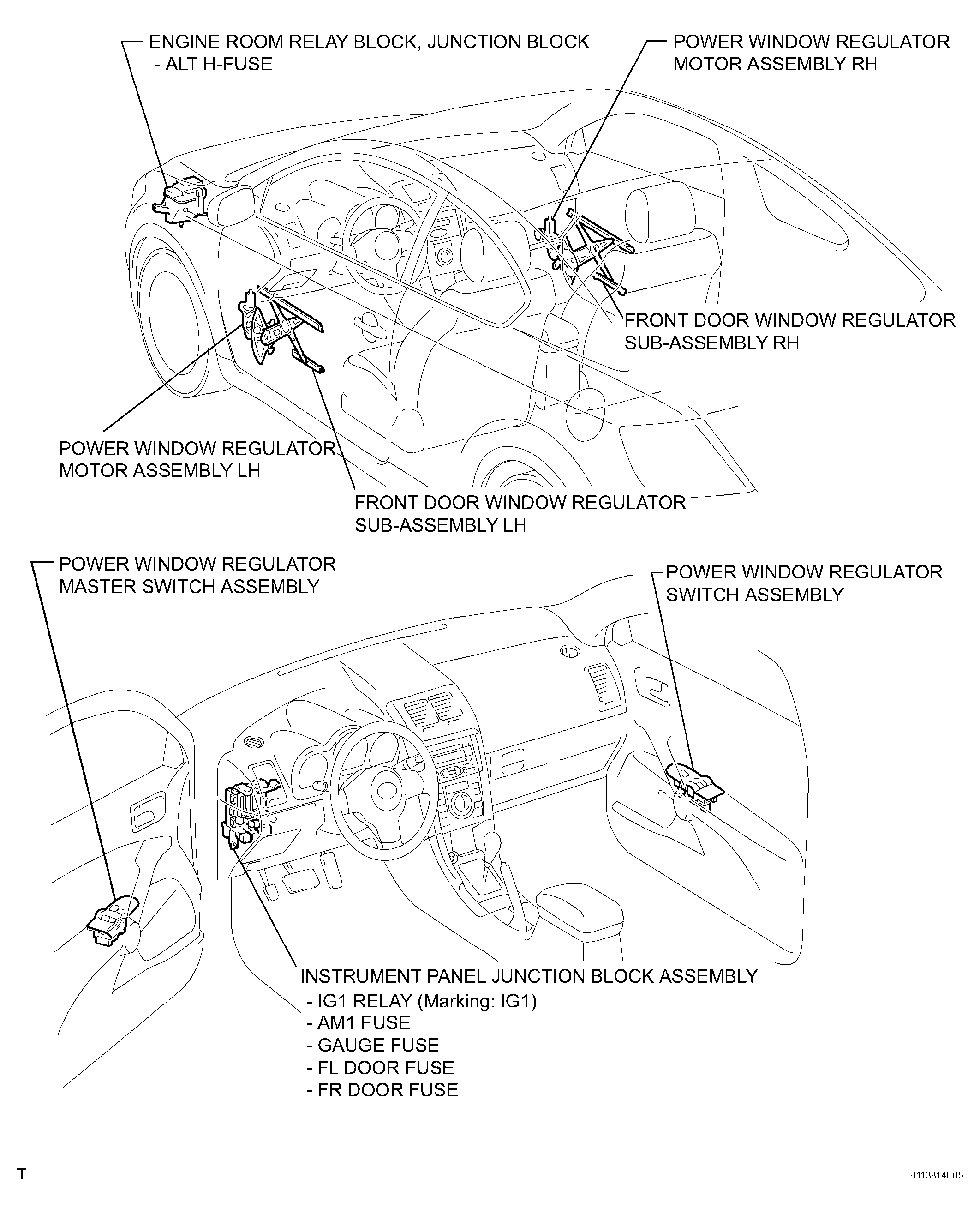

Fig 1: Identifying Power Window Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
