Quarter Window Glass: Components

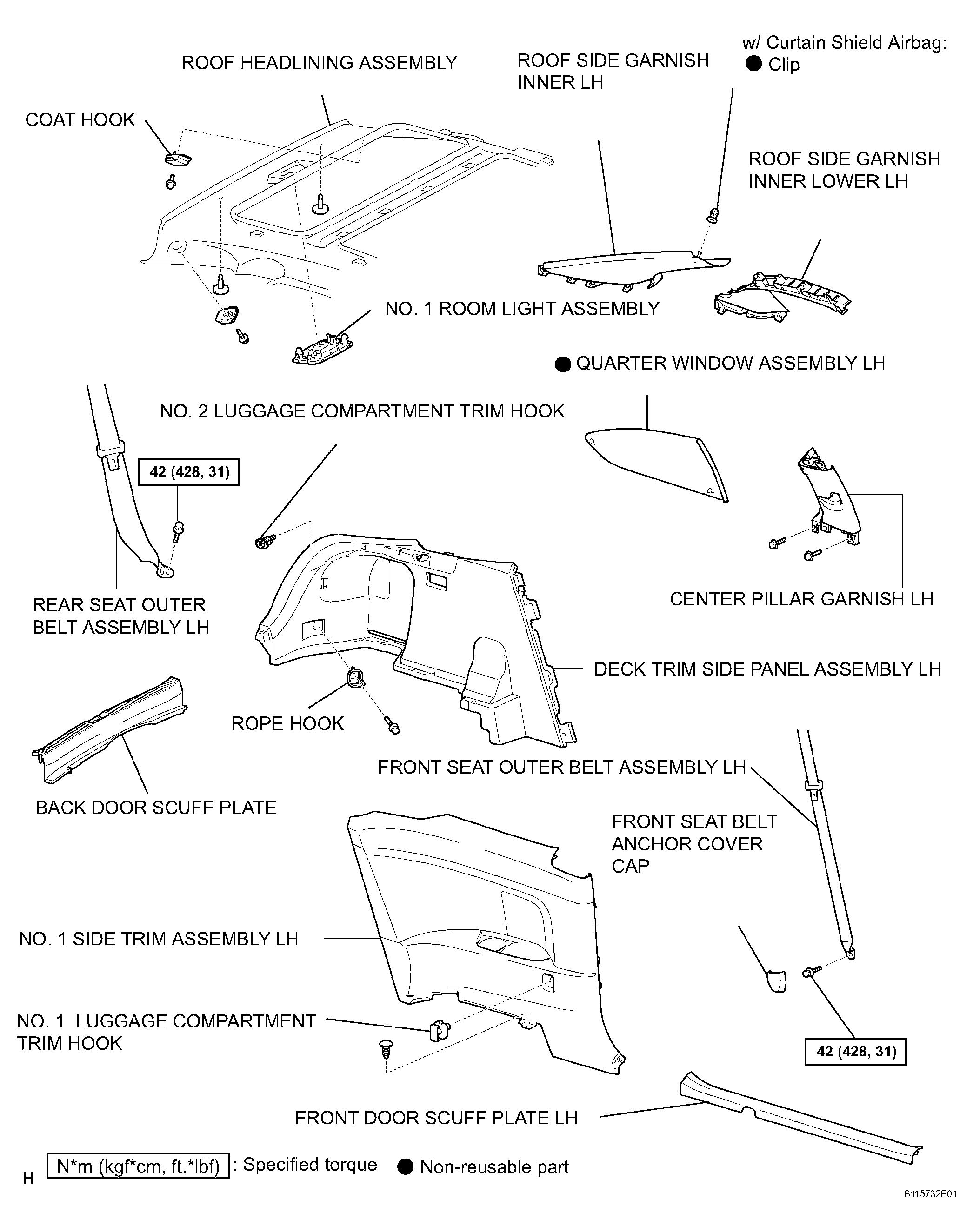

Fig 1: Identifying Quarter Window Glass Components (1 Of 2)
G04224486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Quarter Window Glass Components (2 Of 2)
G04224487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
