Windshield Glass: Components

Fig 1: Identifying Windshield Glass Components (1 Of 2)
G04224452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

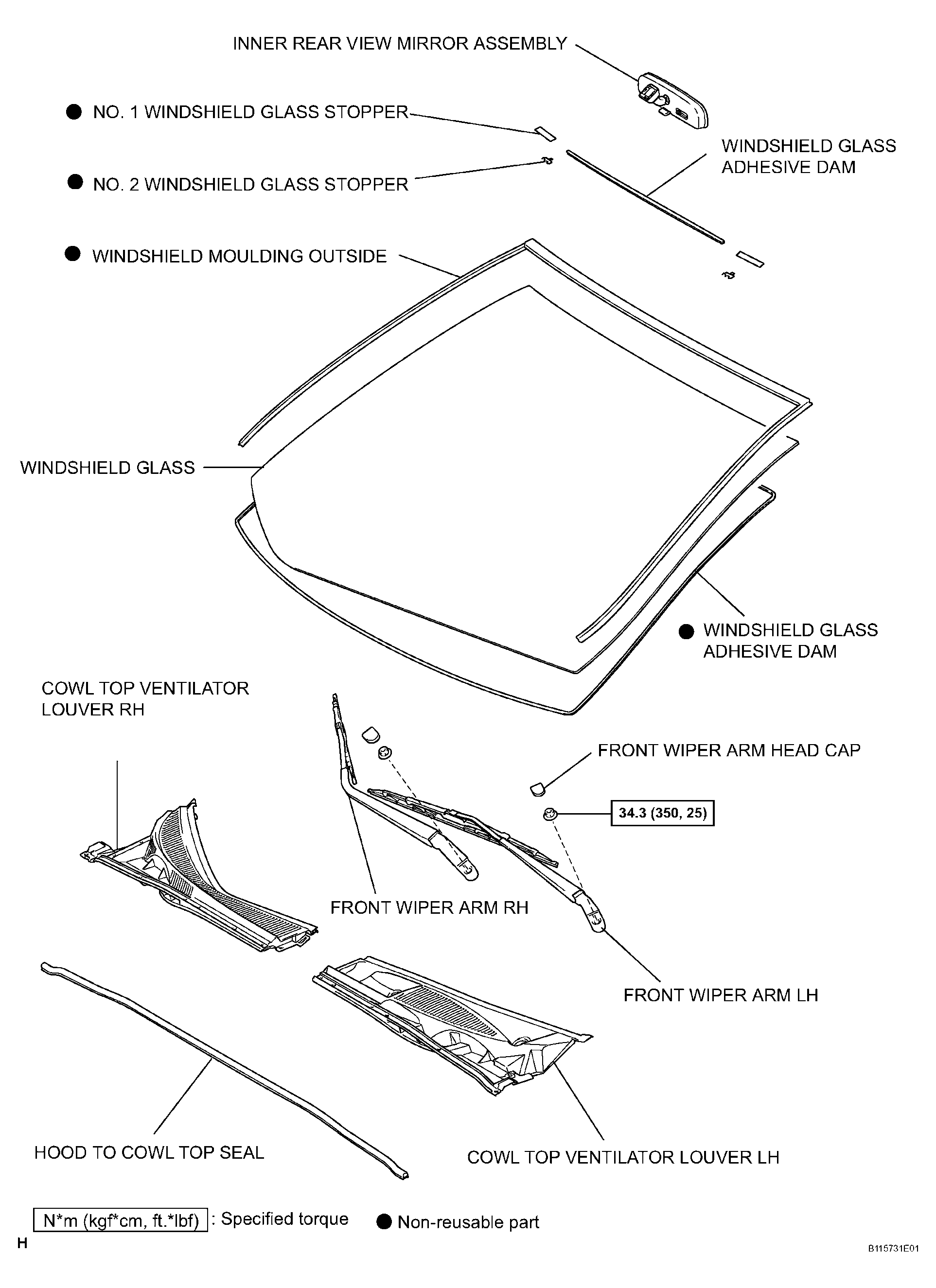

Fig 2: Identifying Windshield Glass Components (2 Of 2)
G04224453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
