Power Point Socket: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) (See  INSTRUMENT PANEL -- TC  )
  3. REMOVE FRONT CONSOLE PANEL UPPER (See  INSTRUMENT PANEL -- TC  )
  4. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY UPPER (See  INSTRUMENT PANEL -- TC  )
  5. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (See  INSTRUMENT PANEL -- TC  )
  6. REMOVE POWER POINT SOCKET ASSEMBLY

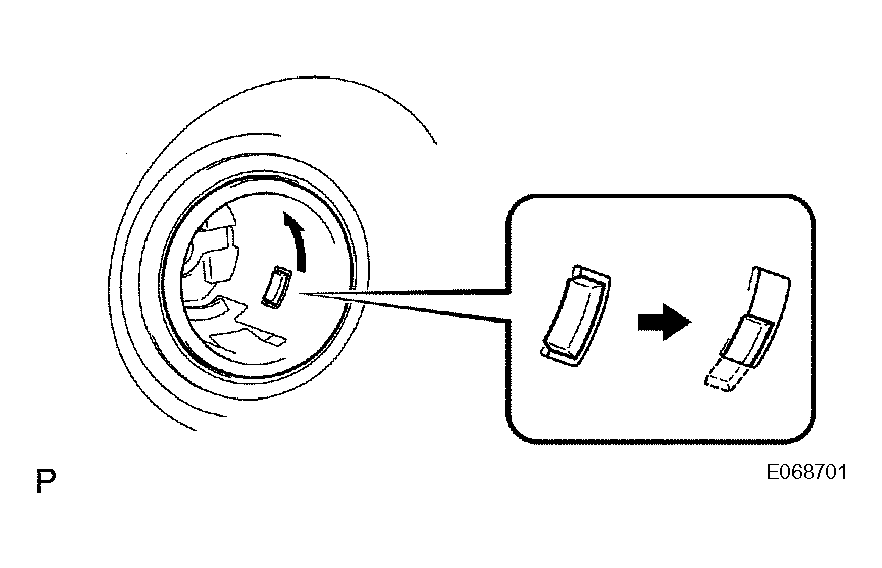

    1. Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the power point socket cover, and pull out the socket.
      Fig 1: Turning Socket
      G04224418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

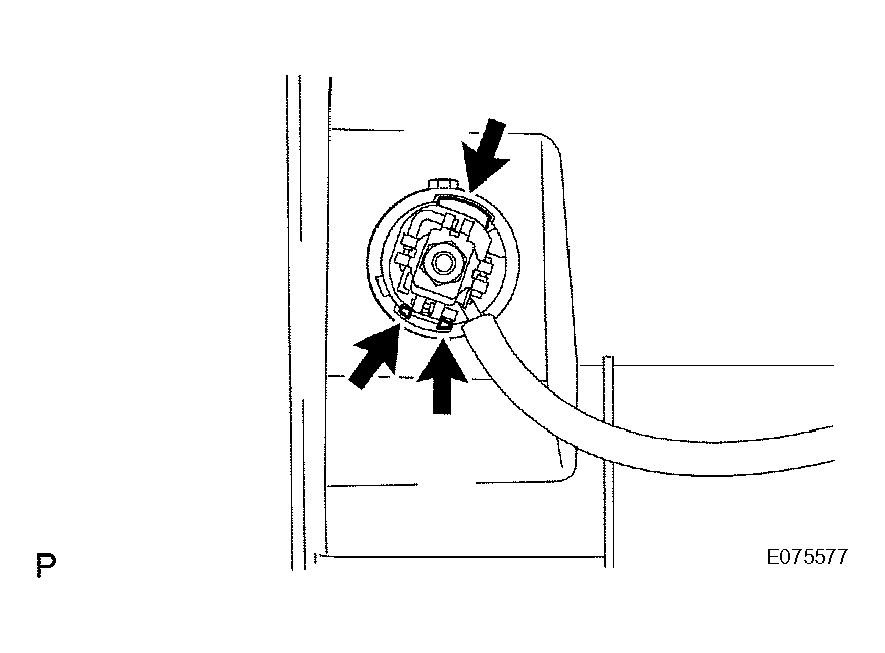

    2. Align the socket with the notch on the power point socket cover, and remove the power point socket.
Fig 2: Aligning Socket With Notch On Power Point Socket Cover
G04224419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
