Home >> Scion >> 2006 >> tC Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Audio System >> Notes

Audio System: Notes

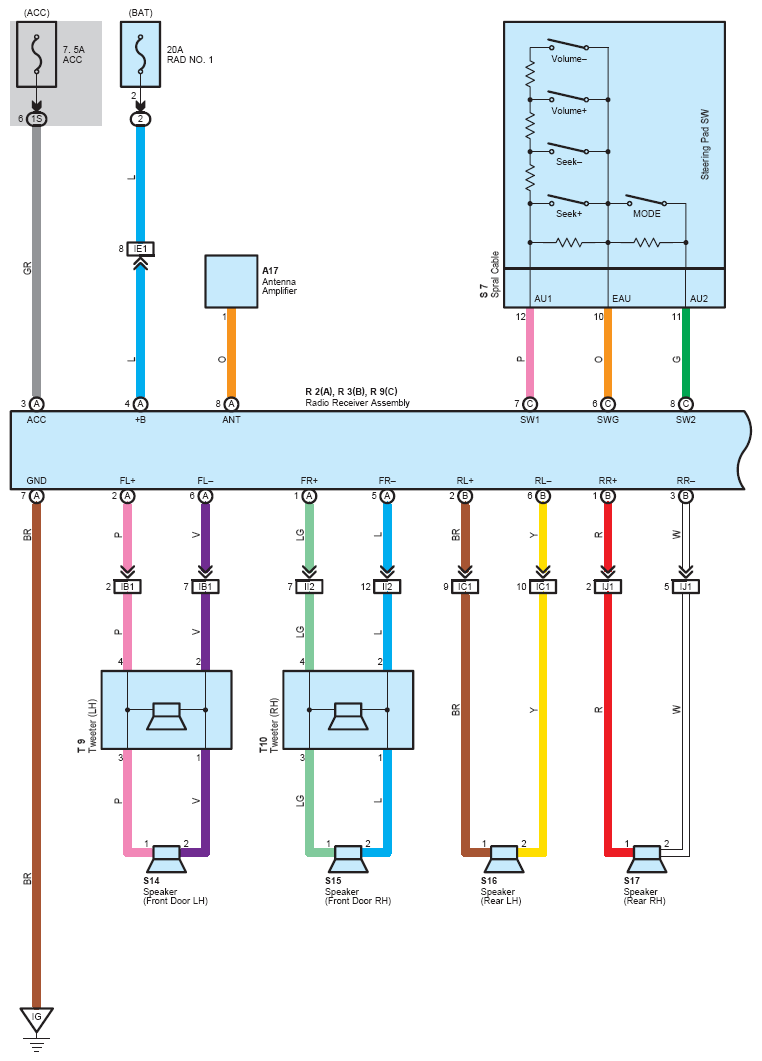

Fig 1: Audio System Wiring Diagram (1 Of 2)
G08758366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

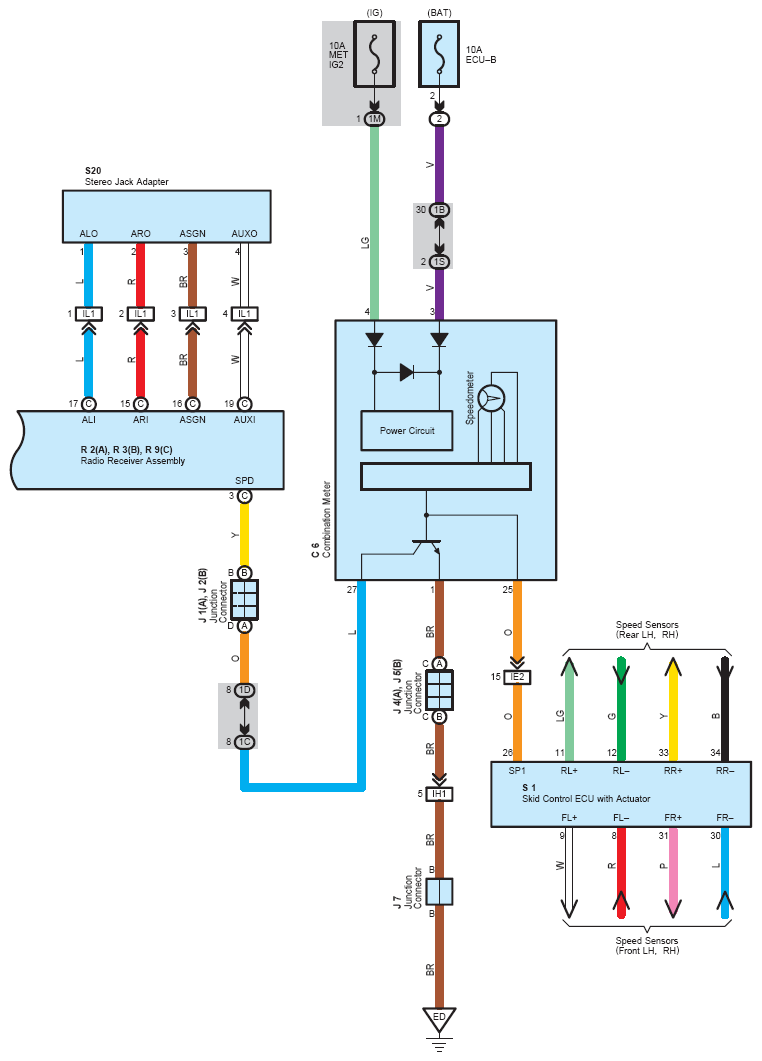

Fig 2: Audio System Wiring Diagram (2 Of 2)
G08758367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
