Back-Up Light: Notes

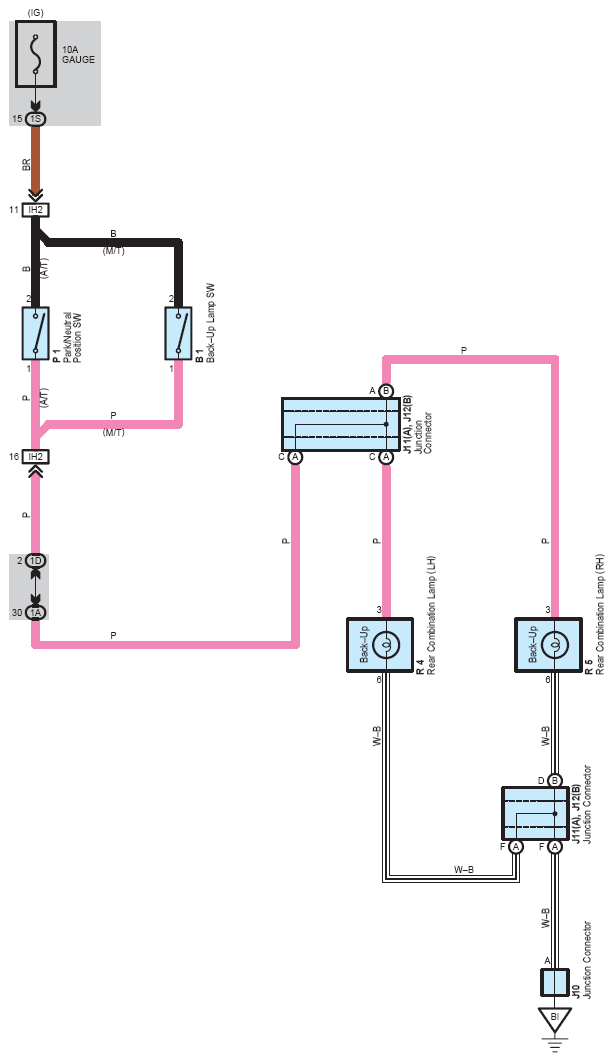

Fig 1: Back-Up Light Wiring Diagram
G08758328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
