Home >> Scion >> 2006 >> tC Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Headlight >> Notes

OEM System Circuits: Headlight: Notes

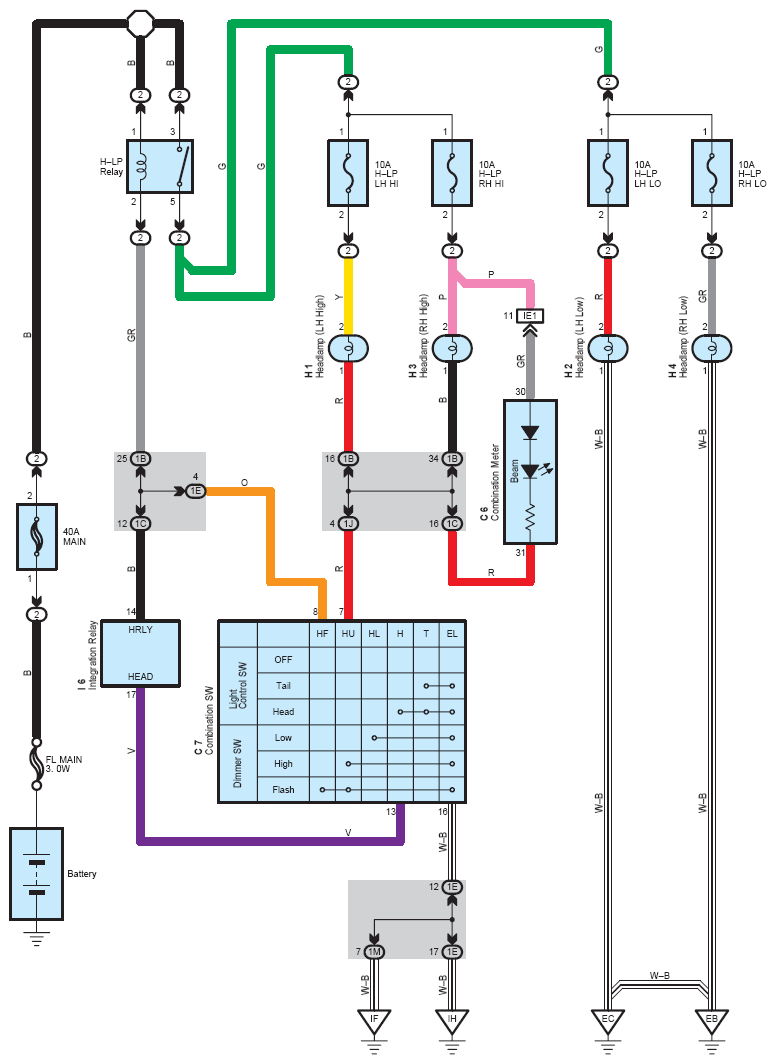

Fig 1: Headlight System Wiring Diagram
G08758319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
