Interior Light: Notes

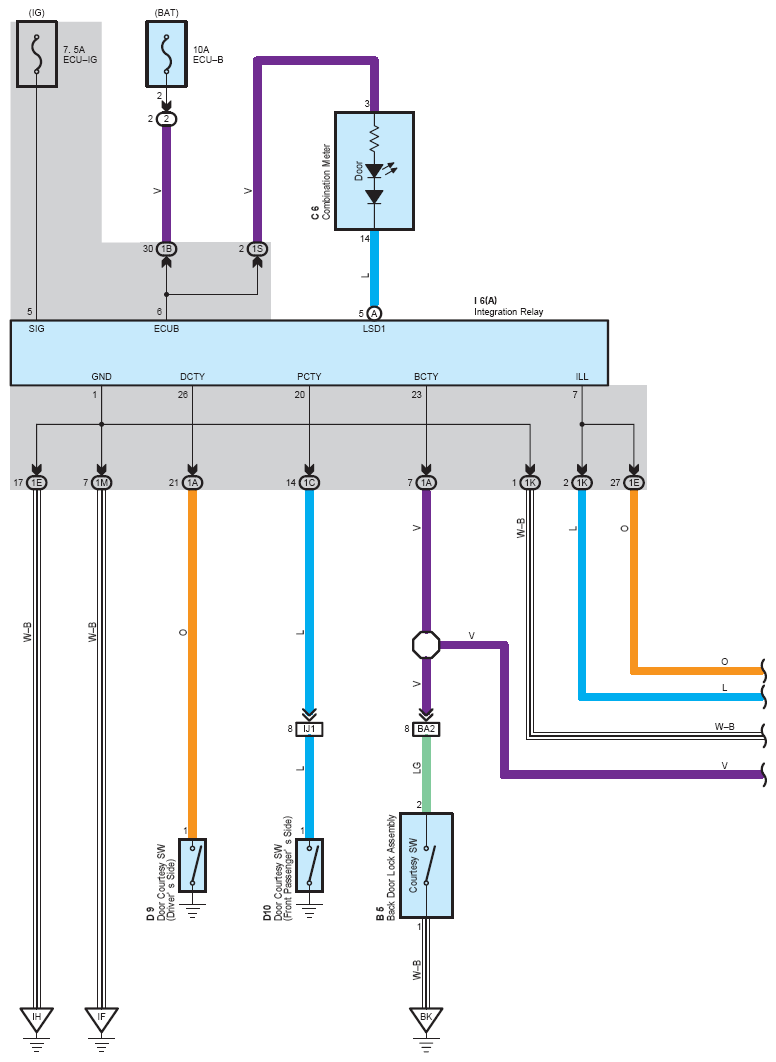

Fig 1: Interior Light System Wiring Diagram (1 Of 2)
G08758322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

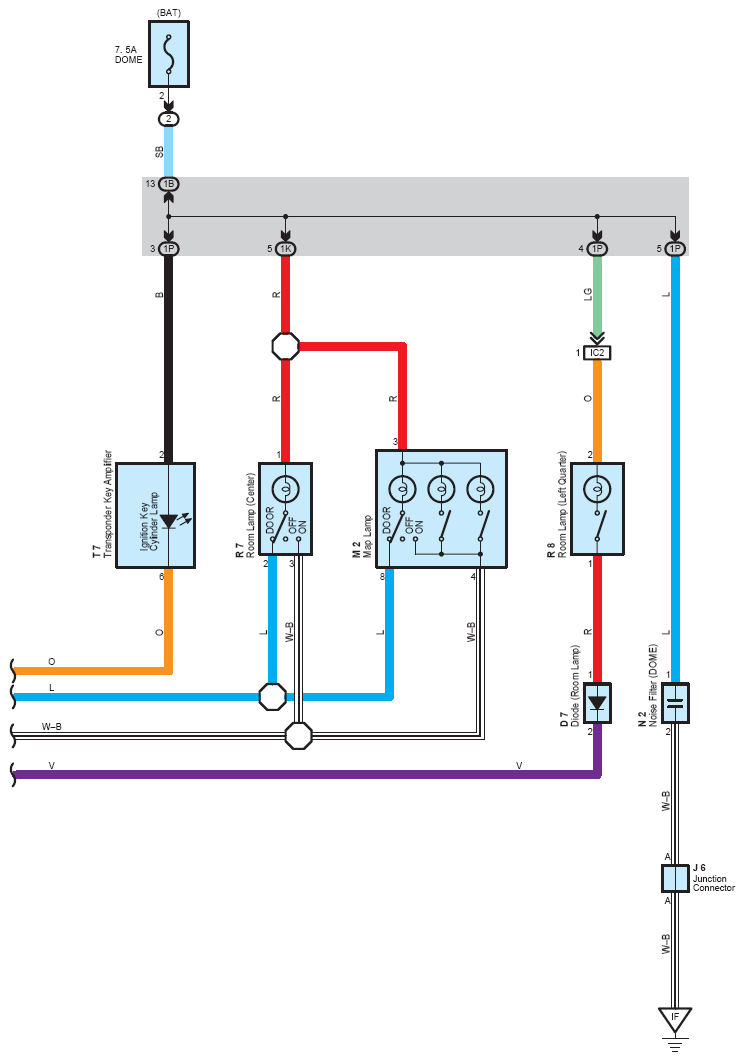

Fig 2: Interior Light System Wiring Diagram (2 Of 2)
G08758323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
