Home >> Scion >> 2006 >> tC Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Key Reminder >> Notes

Key Reminder: Notes

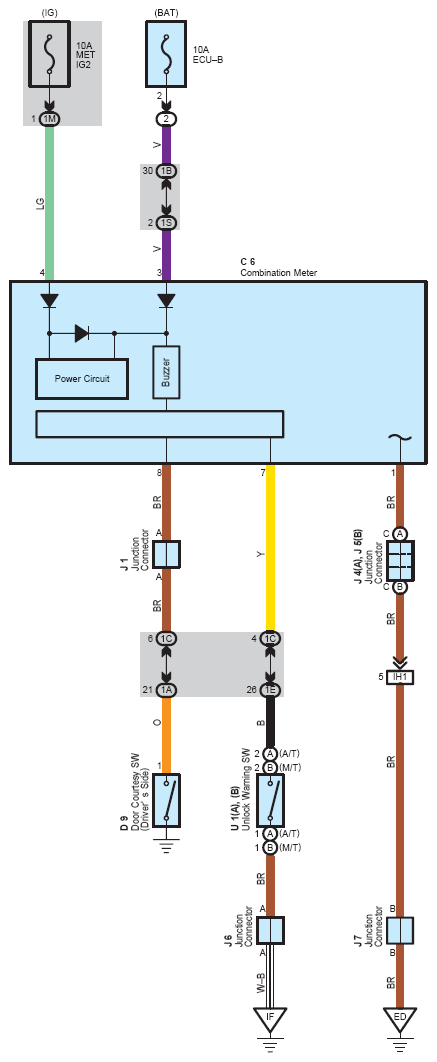

Fig 1: Key Reminder System Wiring Diagram
G08758362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
