Home >> Scion >> 2006 >> tC Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Light Reminder >> Notes

Light Reminder: Notes

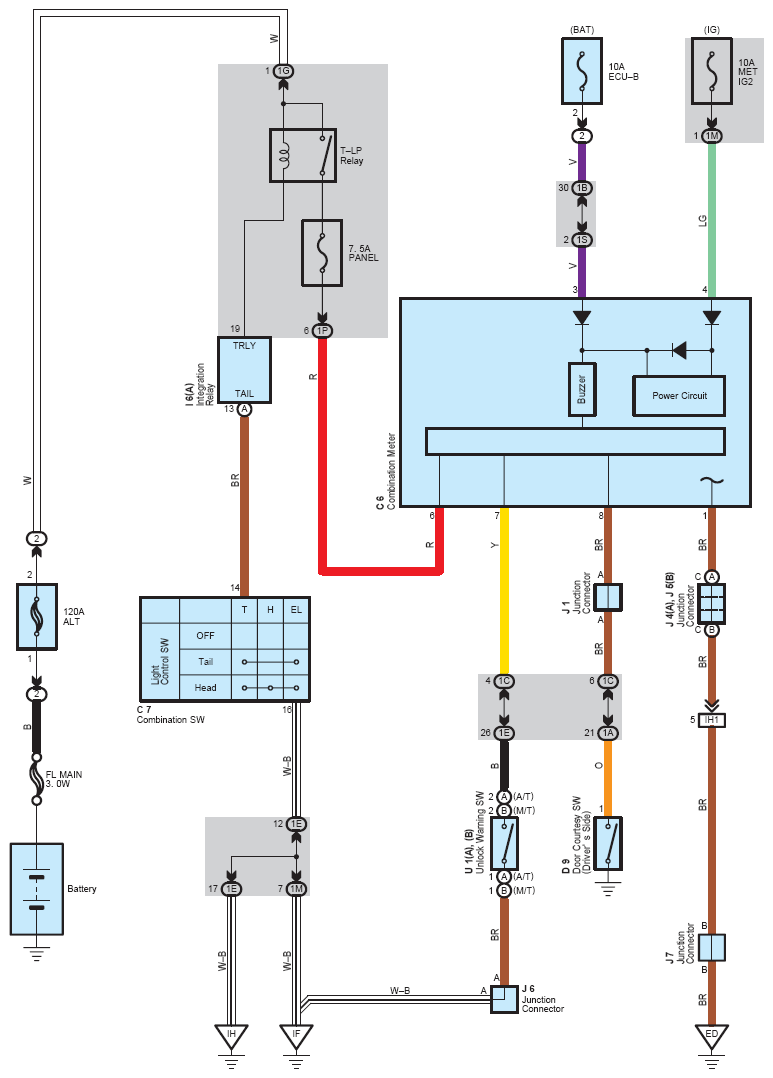

Fig 1: Light Reminder System Wiring Diagram
G08758363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
