Lower Instrument Panel: Components

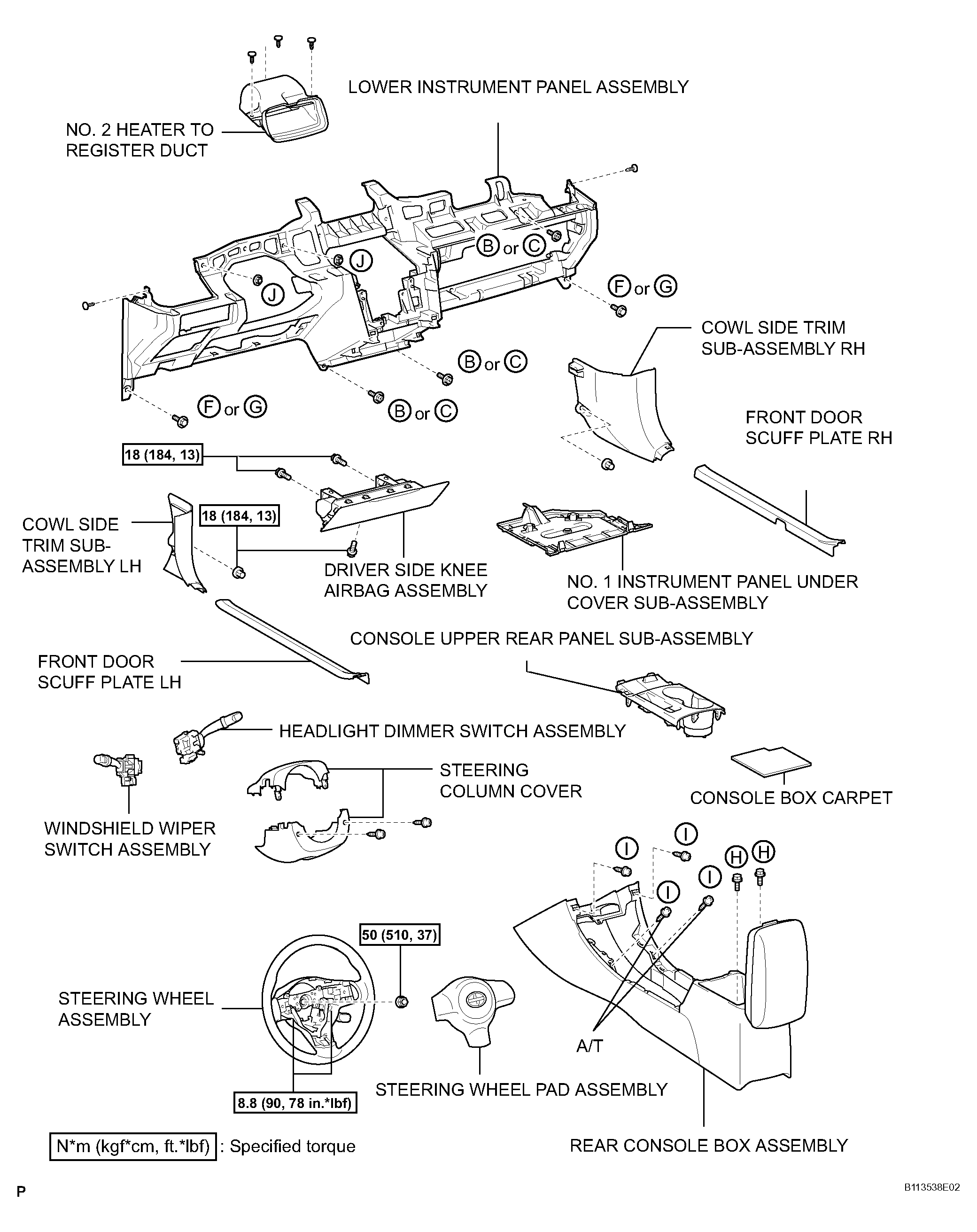

Fig 1: Identifying Lower Instrument Panel Components (1 Of 3)
G04224537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Lower Instrument Panel Components (2 Of 3)
G04224538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Lower Instrument Panel Components (3 Of 3)
G04224539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
