Power Window Control System: Precaution

CAUTION: When disconnecting the cable from the negative (-) battery terminal, initialize the following system after the cable is reconnected.

SYSTEM NAME AND PROCEDURE REFERENCE

System Name	See procedure
Sliding Roof System	INITIALIZATION

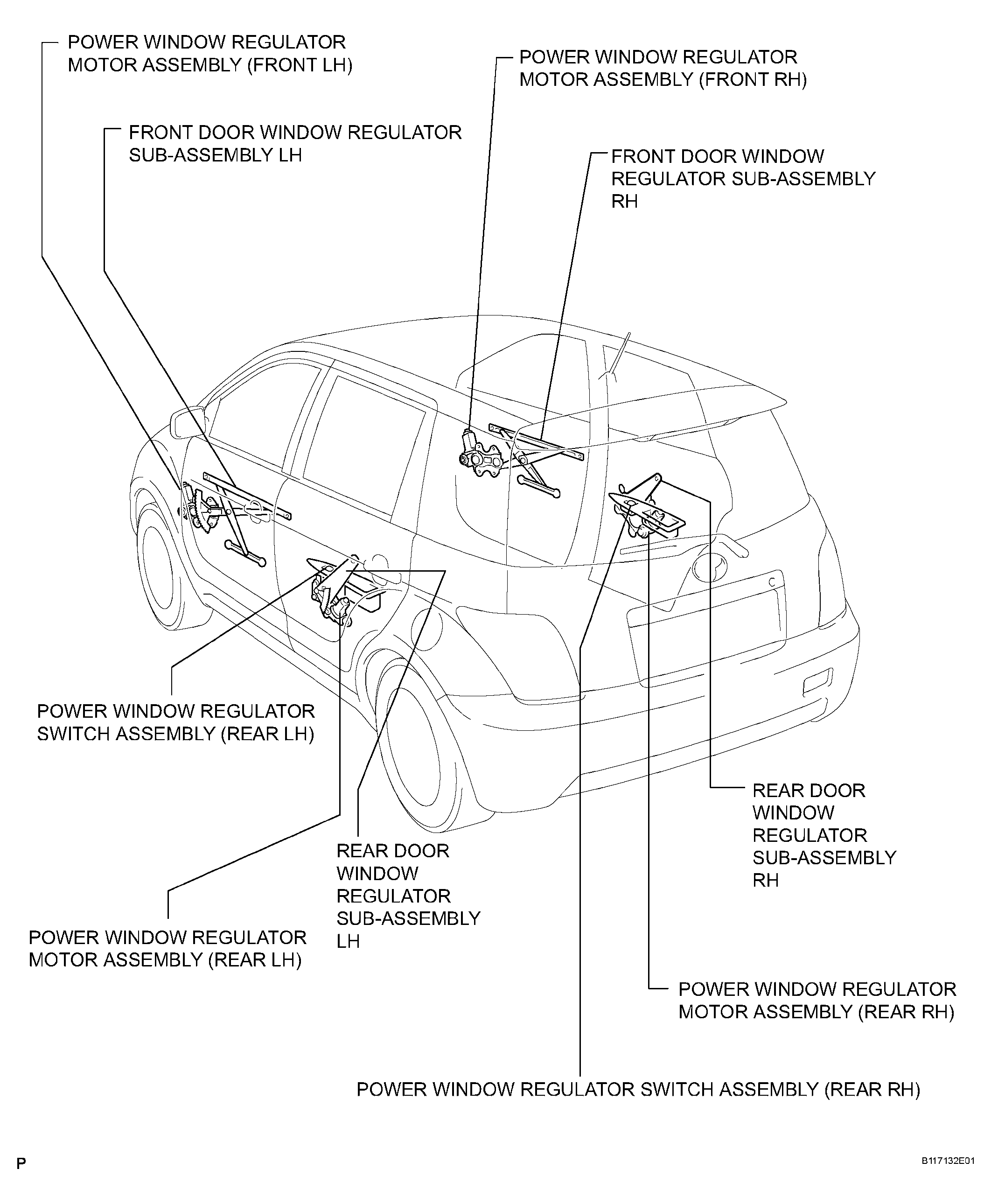

Fig 1: Identifying Power Window Control System Parts Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

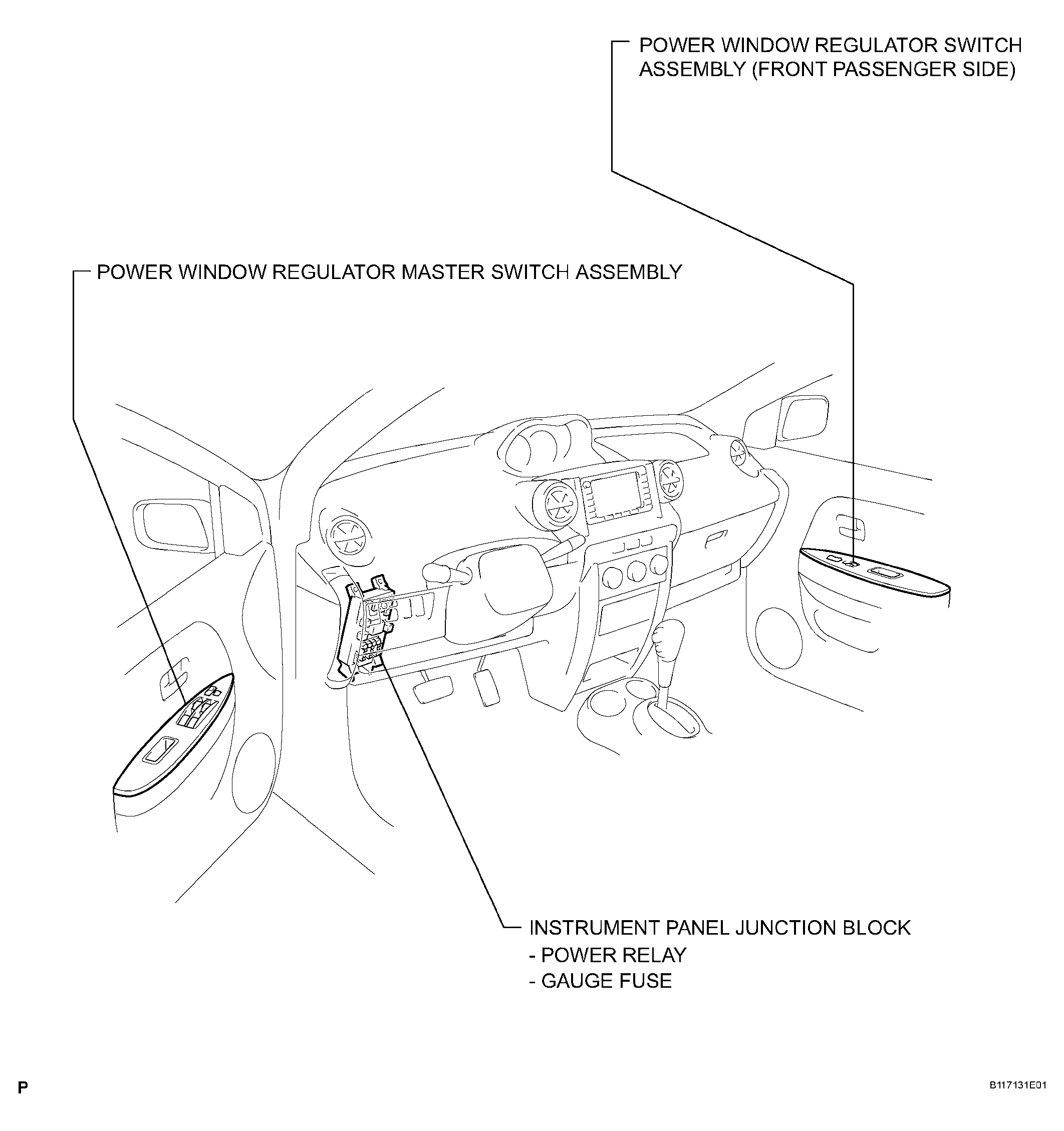

Fig 2: Identifying Power Window Control System Parts Location (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
