Power Window Regulator Motor: Inspection

HINT:

• The driver side and rear RH regulator motors should be inspected using the same procedure.
• The passenger side and rear LH regulator motors should be inspected using the same procedure.

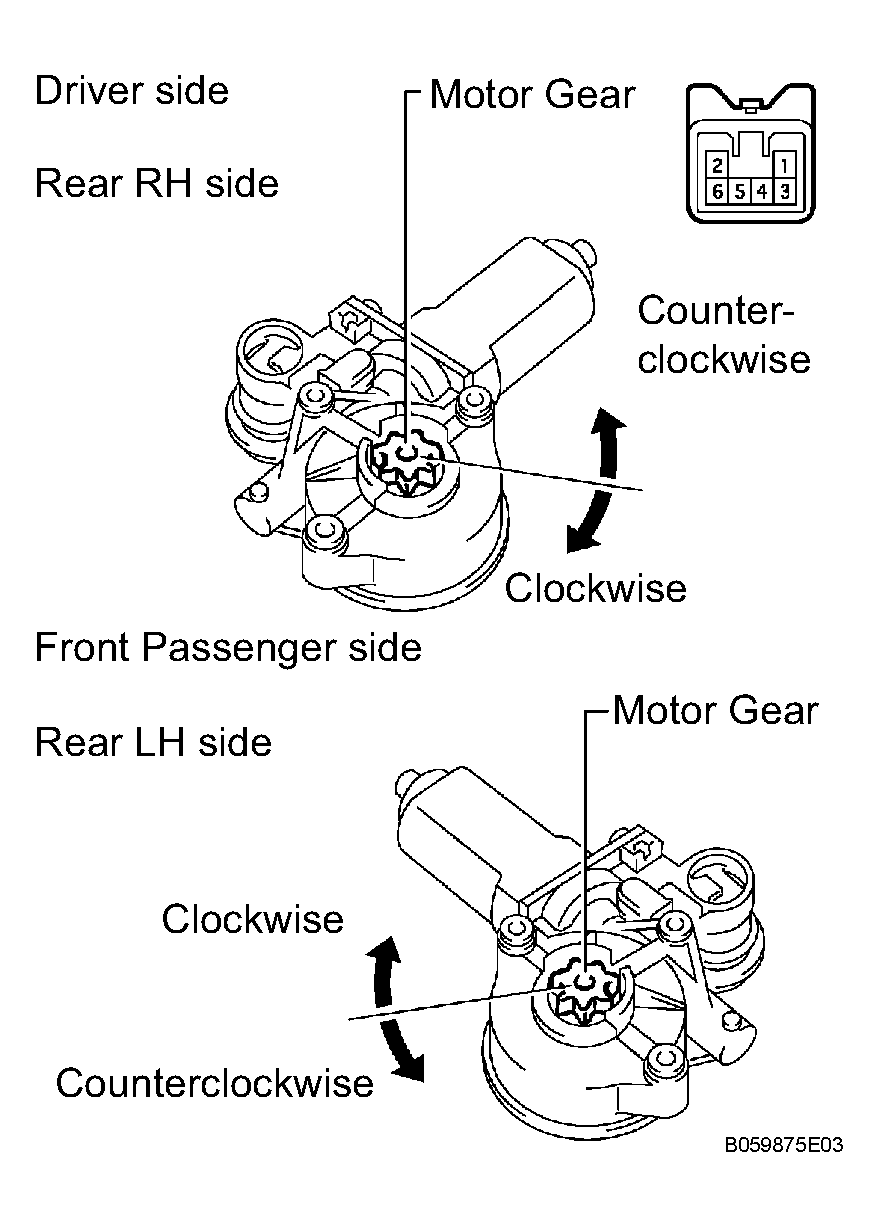

1. Apply battery voltage to the motor terminals.
2. Check that the motor operates smoothly.

   OK: Driver side and rear RH

   MEASUREMENT CONDITION SPECIFICATION



   Measurement Condition	Specified Condition
   Battery positive (+) --> Terminal 4 Battery positive (-) --> Terminal 5	Motor gear rotates clockwise
   Battery positive (+) --> Terminal 5 Battery positive (-) --> Terminal 4	Motor gear rotates counterclockwise

   Front passenger side and rear LH

   MEASUREMENT CONDITION SPECIFICATION



   Measurement Condition	Specified Condition
   Battery positive (+) --> Terminal 5 Battery positive (-) --> Terminal 4	Motor gear rotates clockwise
   Battery positive (+) --> Terminal 4 Battery positive (-) --> Terminal 5	Motor gear rotates counterclockwise

   If the result is not as specified, replace the motor assembly.

   Fig 1: Identifying Power Window Regulator Switch Assembly (Rear LH And Rear RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
