Home >> Scion >> 2006 >> xA Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Quarter Window Glass >> Components

Quarter Window Glass: Components

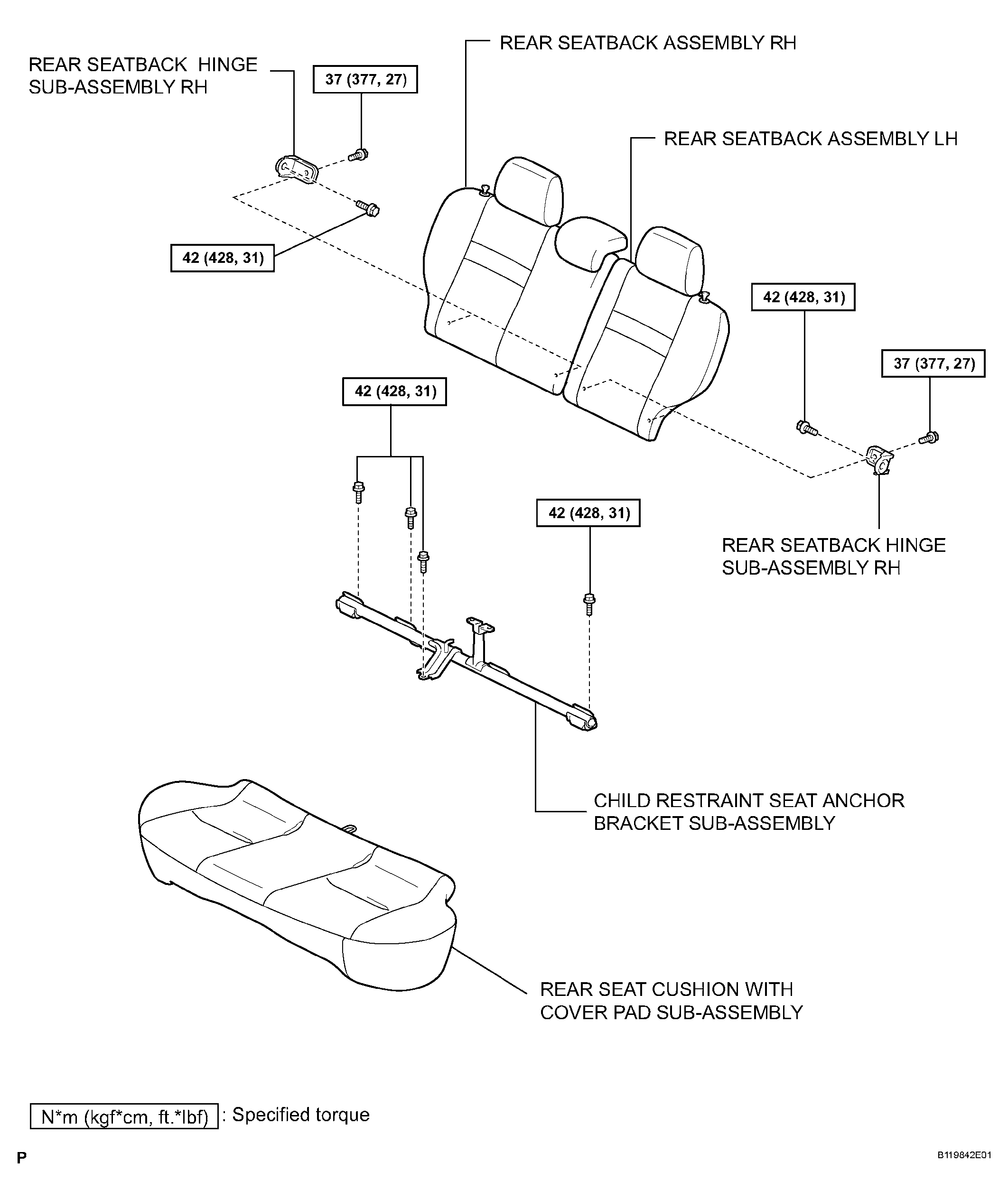

Fig 1: Identifying Quarter Window Glass And Components (1 Of 3)
G04159037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

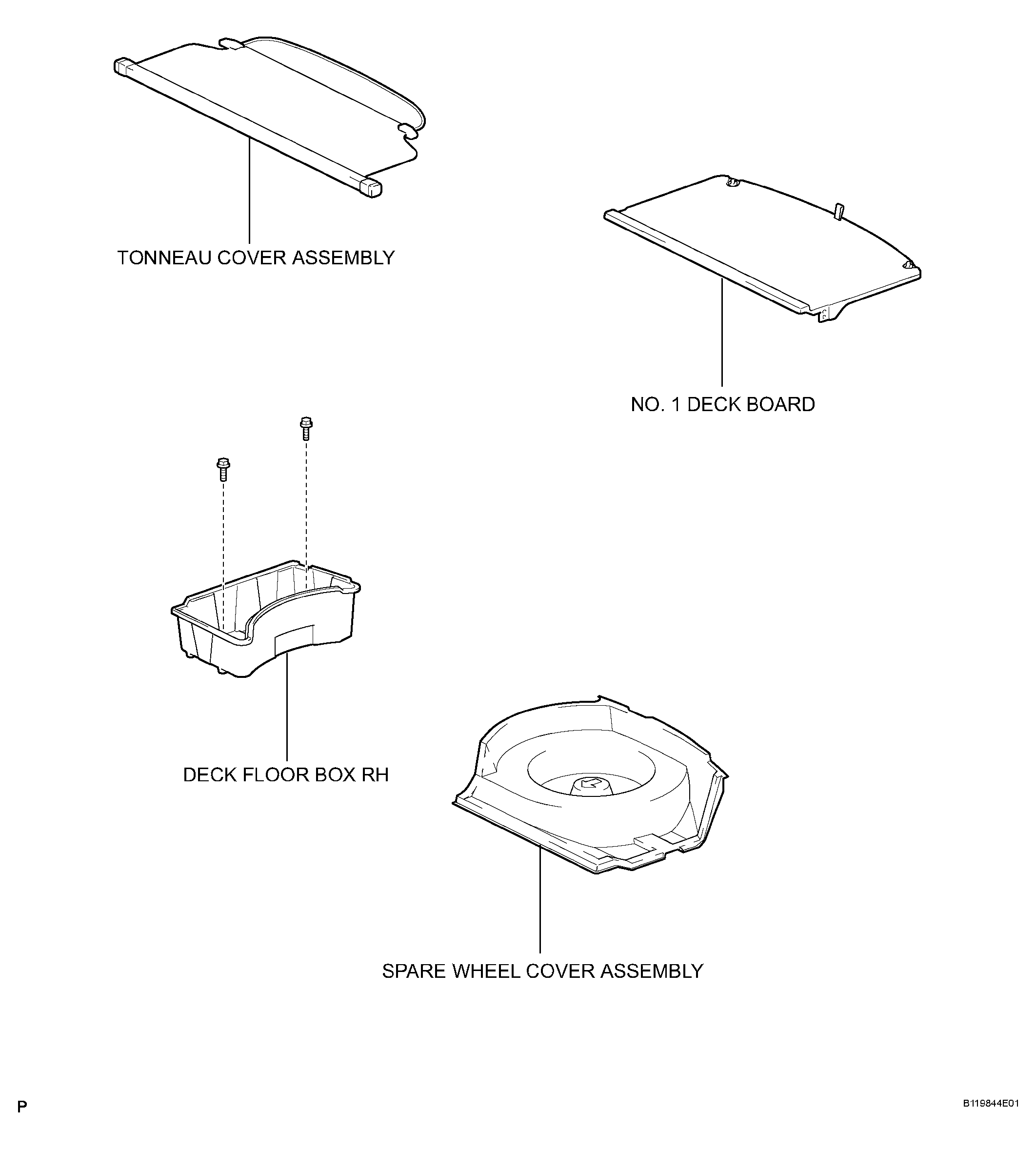

Fig 2: Identifying Quarter Window Glass And Components (2 Of 3)
G04159038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

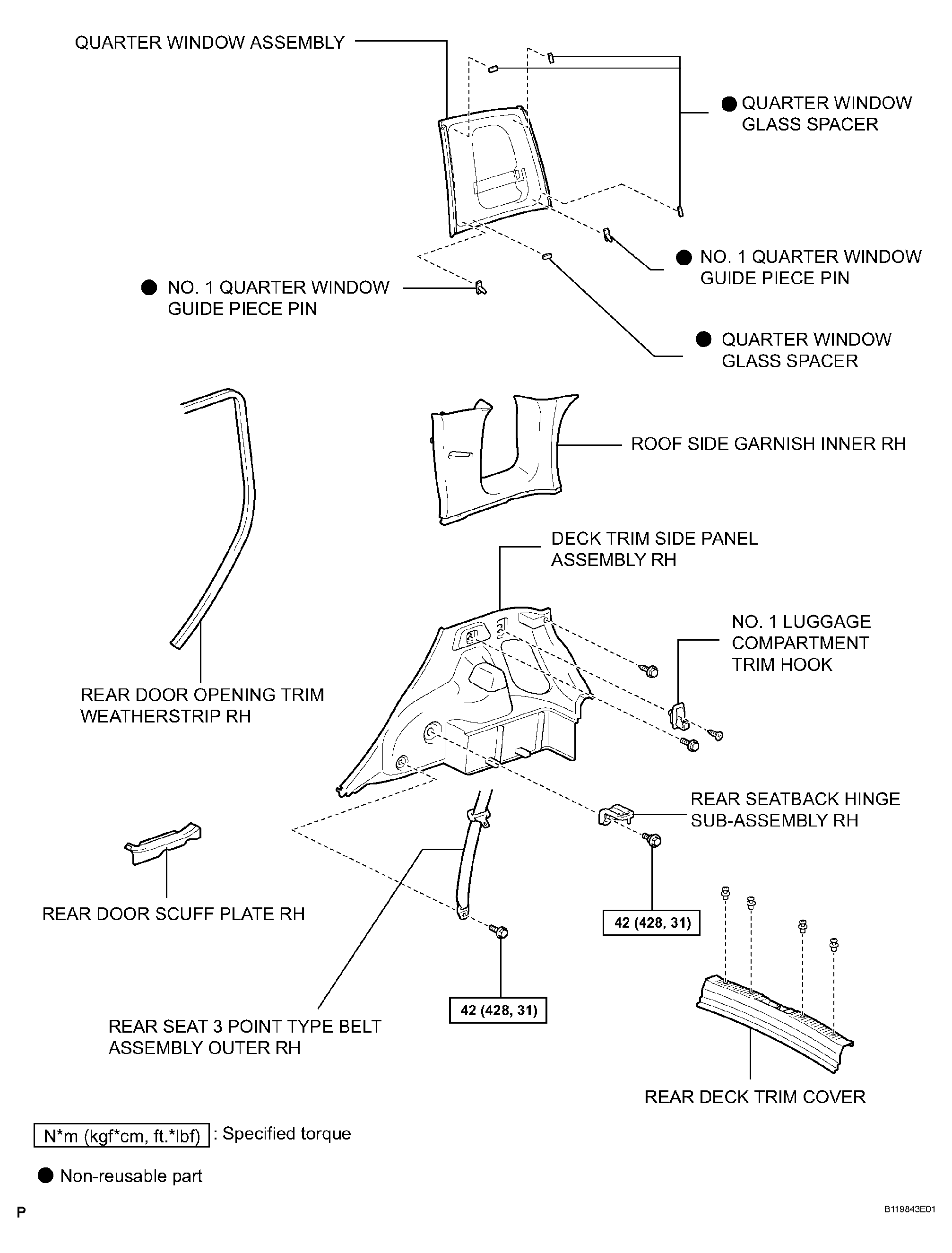

Fig 3: Identifying Quarter Window Glass And Components (3 Of 3)
G04159039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
