Scion
>>
2006
>>
xA Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield/WINDOWGLASS
>>
Window Defogger System
>>
System Diagram
System Diagram

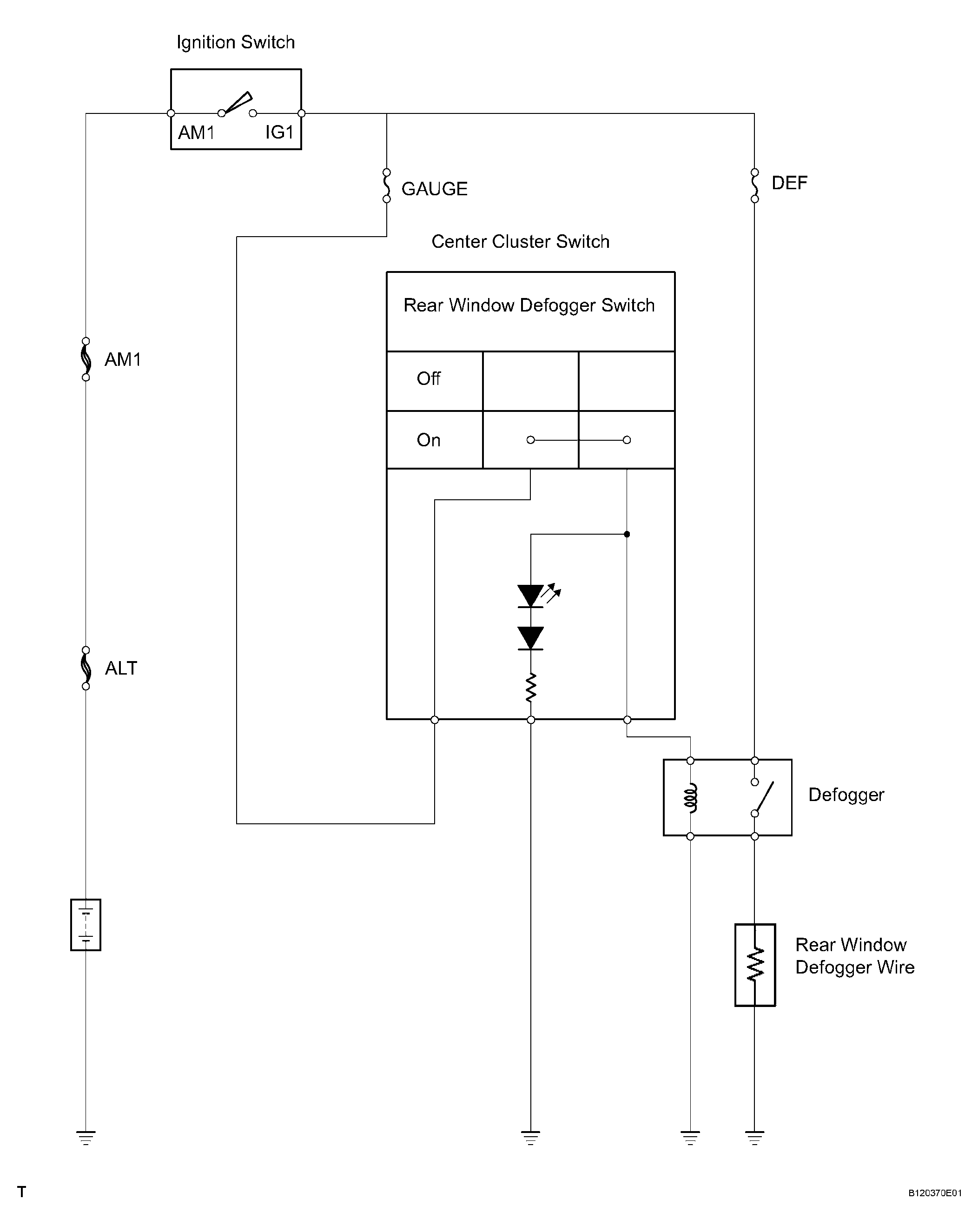

Fig 1: Identifying Window System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
