Windshield Glass: Components

Fig 1: Identifying Windshield Glass And Components (1 Of 3)
G04158995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Windshield Glass And Components (2 Of 3)
G04158996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

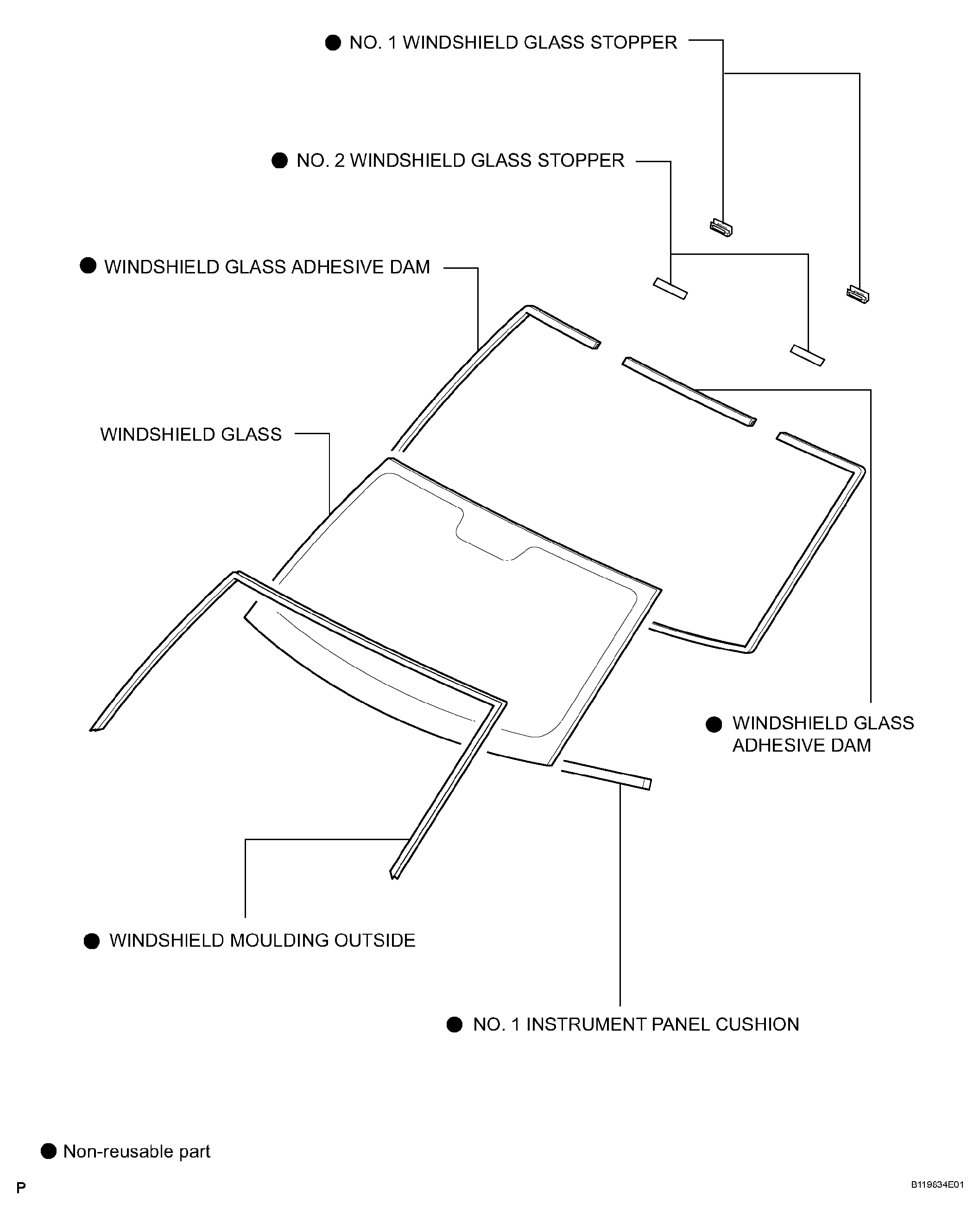

Fig 3: Identifying Windshield Glass And Components (3 Of 3)
G04158997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
