Cigarette Lighter: Removal: Notes

  1. Disconnect cable from negative battery terminal.
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. Remove no. 2 instrument cluster finish panel.
  3. Remove no. 1 instrument cluster finish panel.
  4. Remove front ash receptacle assembly.
  5. Detach the 2 claws and remove the cigarette lighter cover.

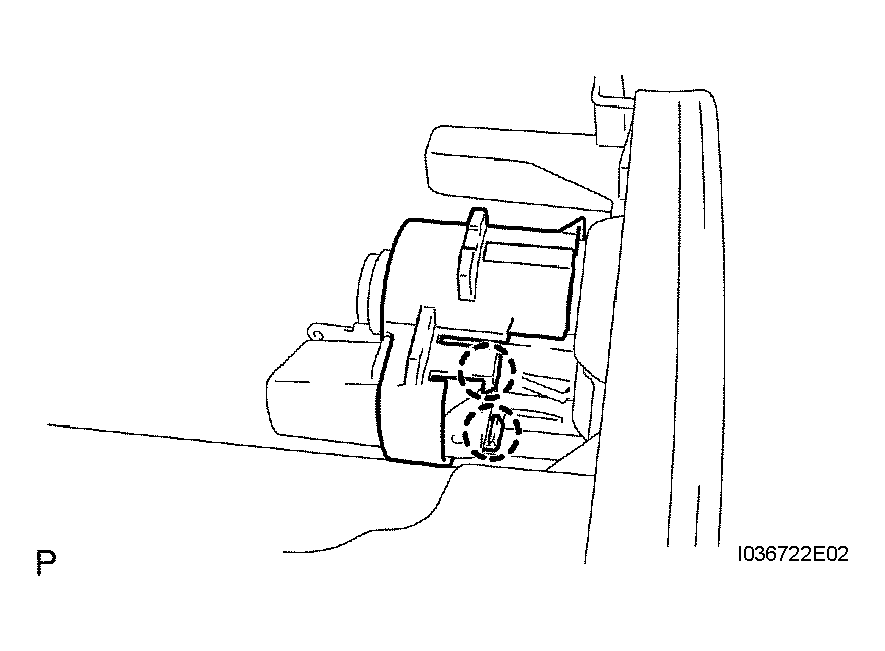

    Fig 1: Detaching Claws And Removing Cigarette Lighter Cover
    G04158980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Remove cigarette lighter assembly.
    1. Remove the cigarette lighter knob and element.
    2. Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the cigarette lighter bezel stay, and pull out the socket.

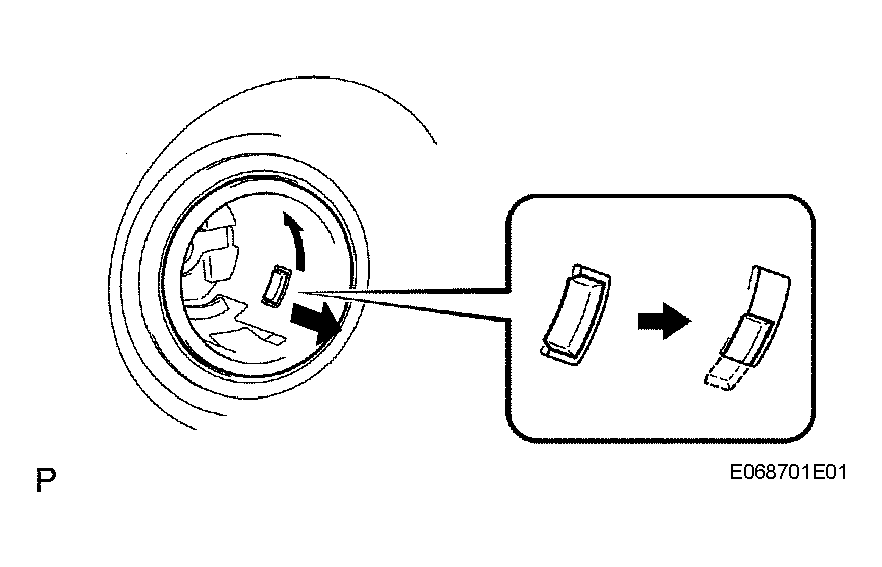

      Fig 2: Removing Cigarette Lighter Knob And Element
      G04158981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter.

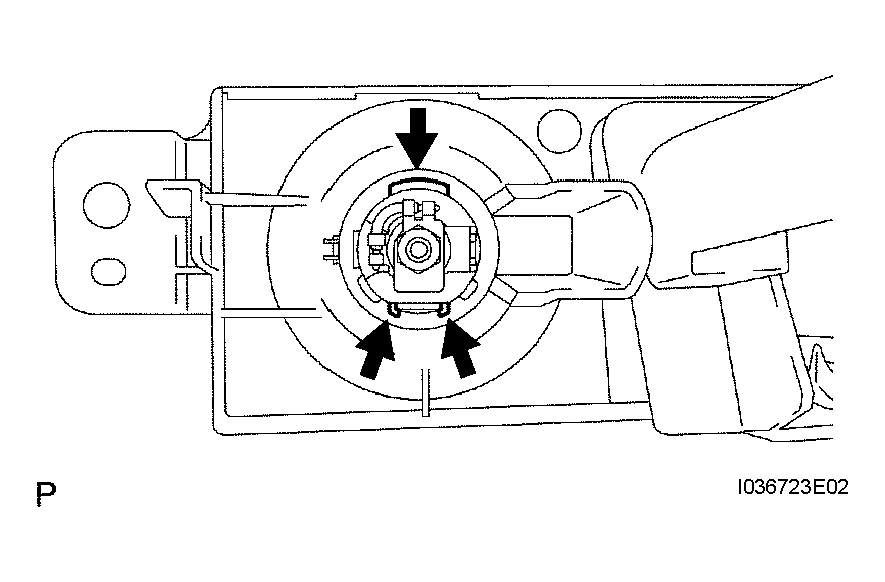

      Fig 3: Aligning Socket With Notch On Cigarette Lighter Bezel
      G04158982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
