Power Source: Notes

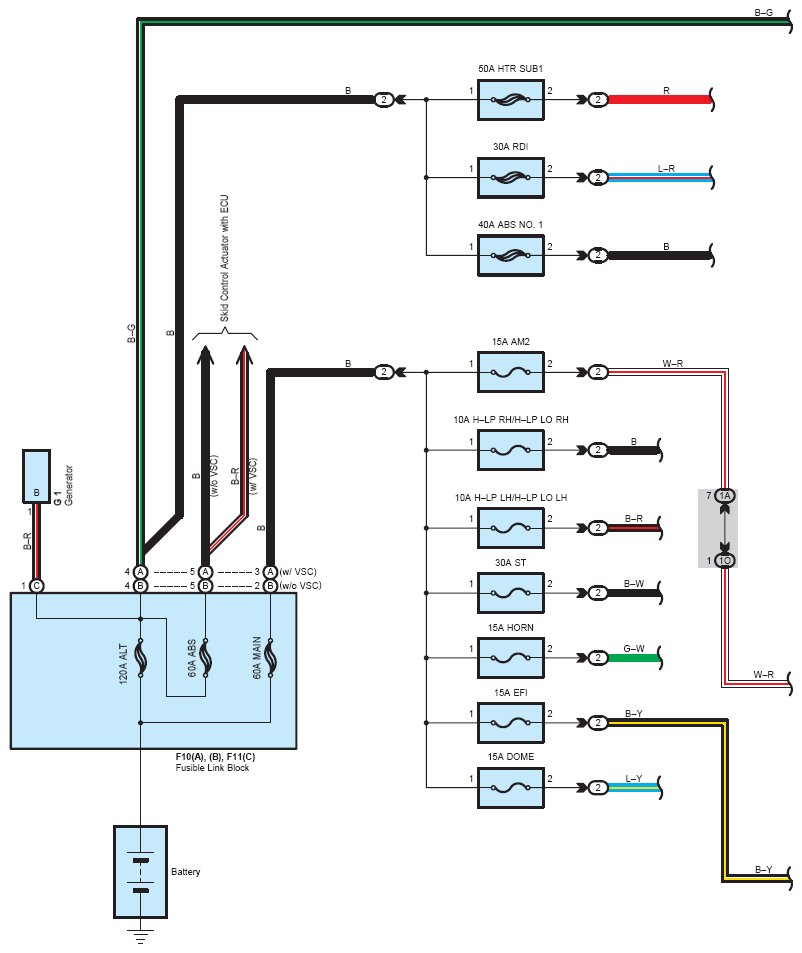

Fig 1: Power Source System Wiring Diagram (1 Of 2)
G08758647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

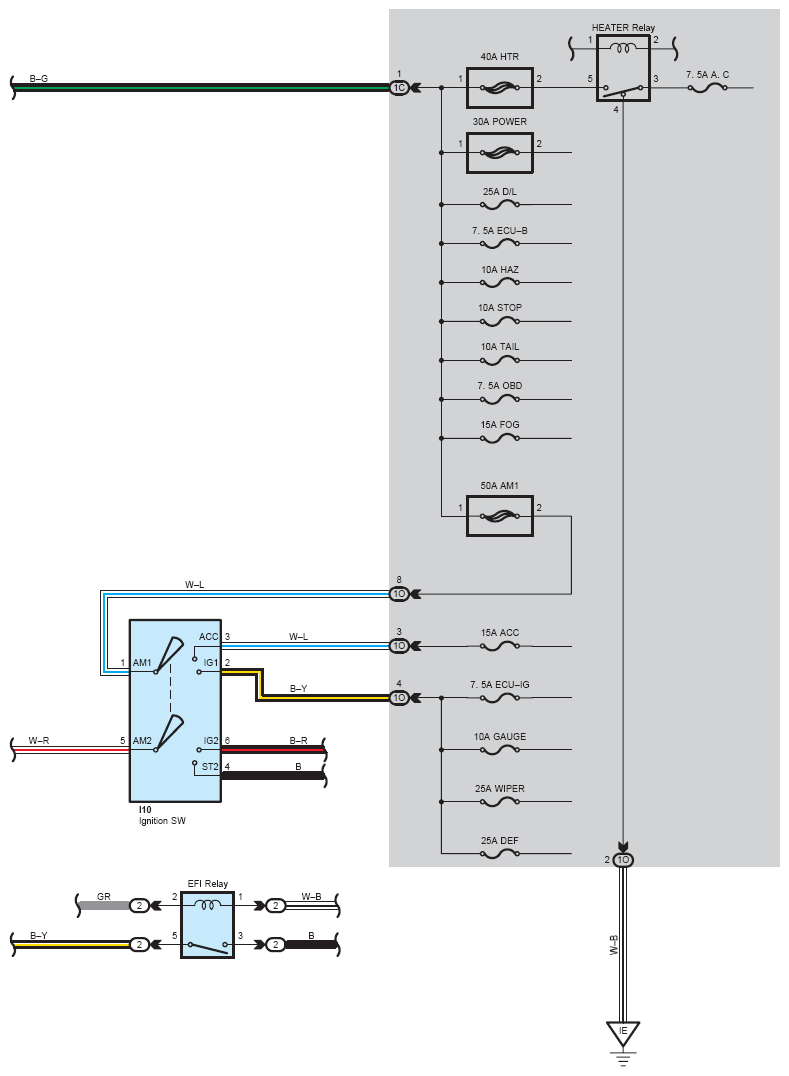

Fig 2: Power Source System Wiring Diagram (2 Of 2)
G08758648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
