Rear Console Box: Installation

  1. INSTALL REAR CONSOLE BOX ASSEMBLY
    1. Attach the 2 clips to install the console box.
    2. Connect the connector.
    3. Install the screw.
    4. Install the console box carpet.

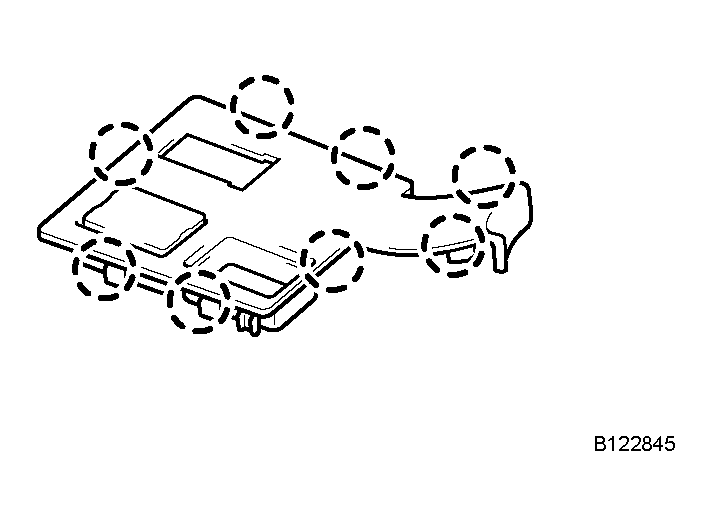

      Fig 1: Installing Console Box Carpet
      G04159123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Attach the 8 claws to install the rear console box cover.
  2. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

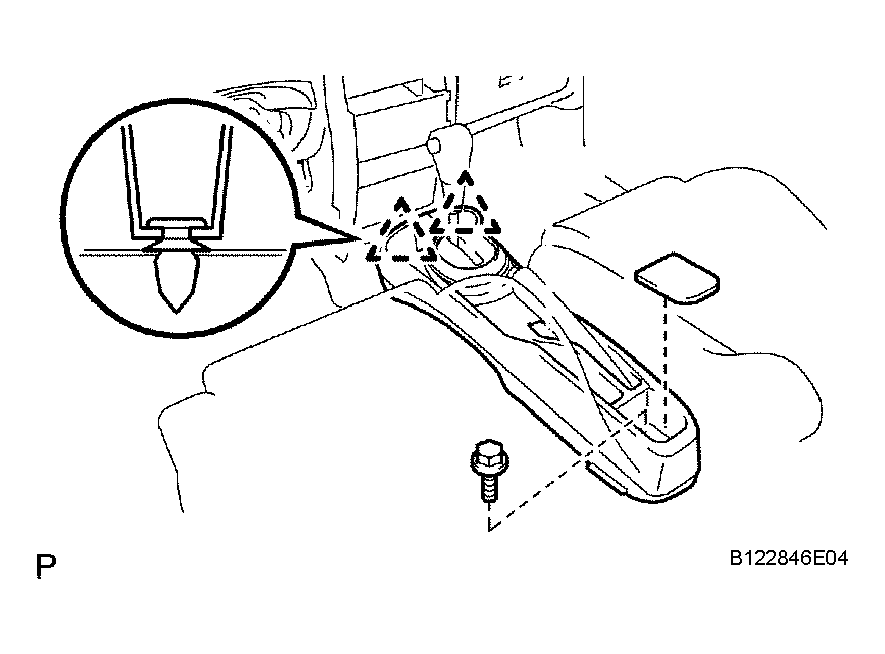

    Fig 2: Installing Shift Lever Knob Sub-Assembly
    G04159124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
