Home >> Scion >> 2006 >> xA Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel >> Upper Instrument Panel >> Components

Upper Instrument Panel: Components

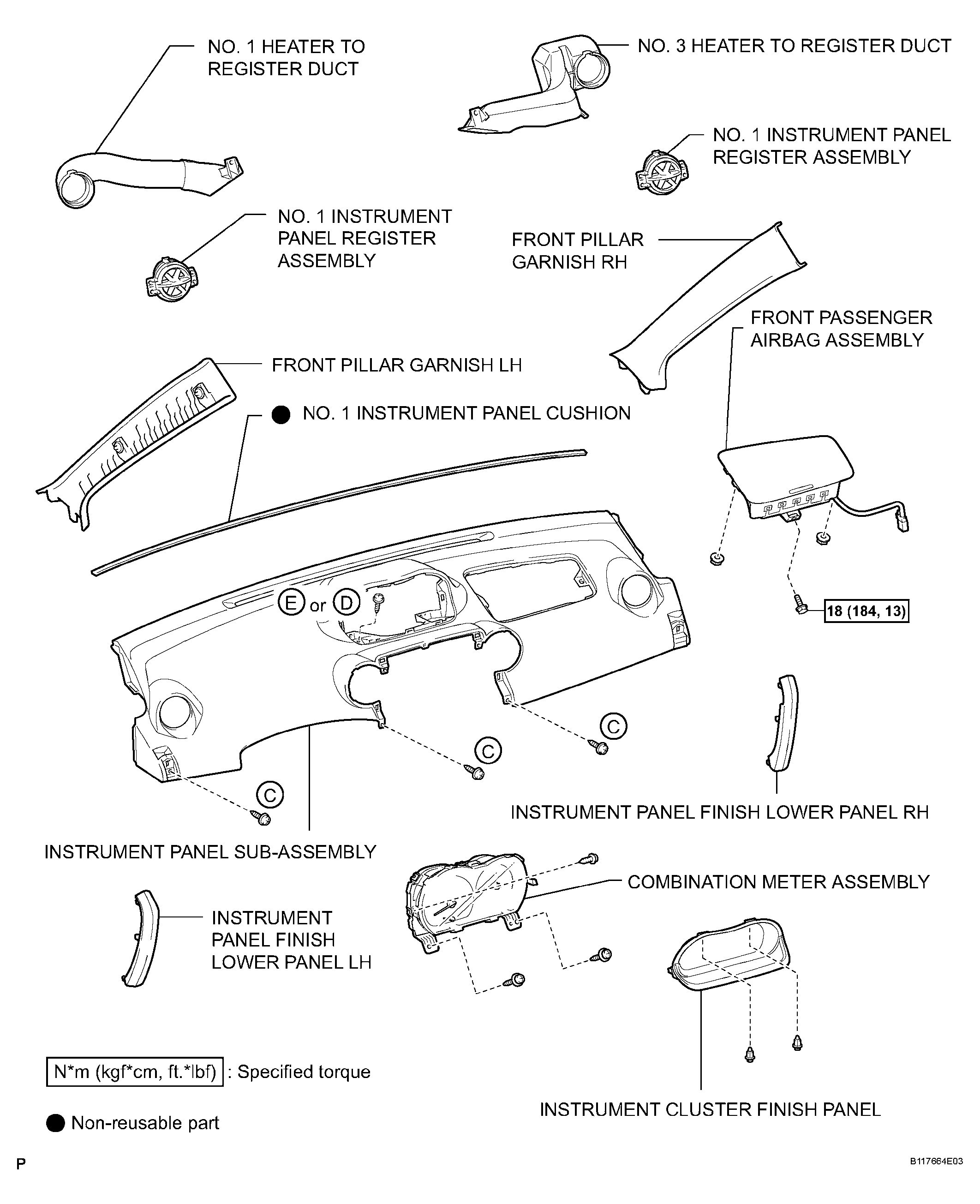

Fig 1: Identifying Components Of Upper Instrument Panel (1 Of 2)
G04159065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

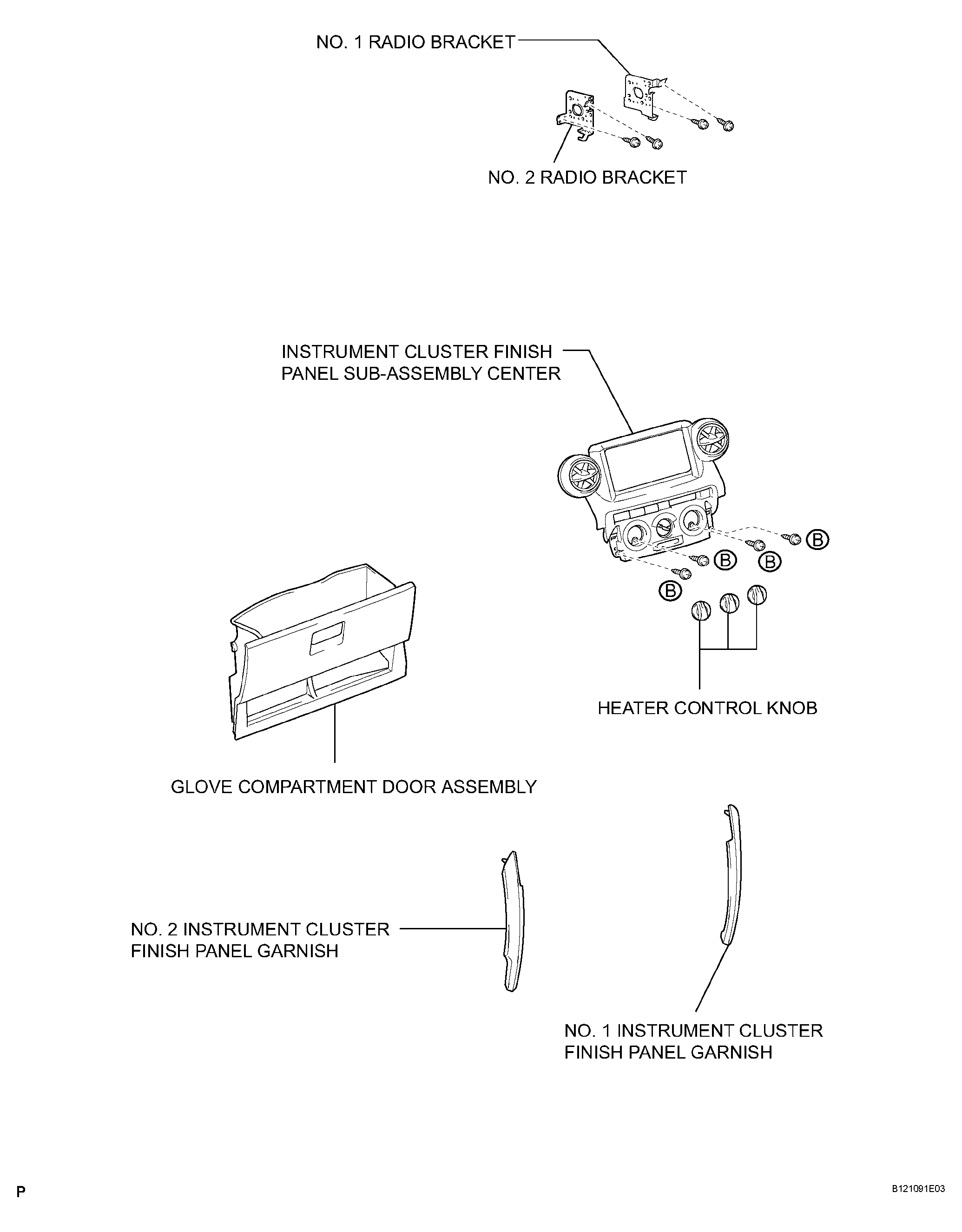

Fig 2: Identifying Components Of Upper Instrument Panel (2 Of 2)
G04159066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
