Combination Meter: Disassembly

REMOVE COMBINATION METER CASE
1. Using a screwdriver, detach the 7 claws and remove the meter case.

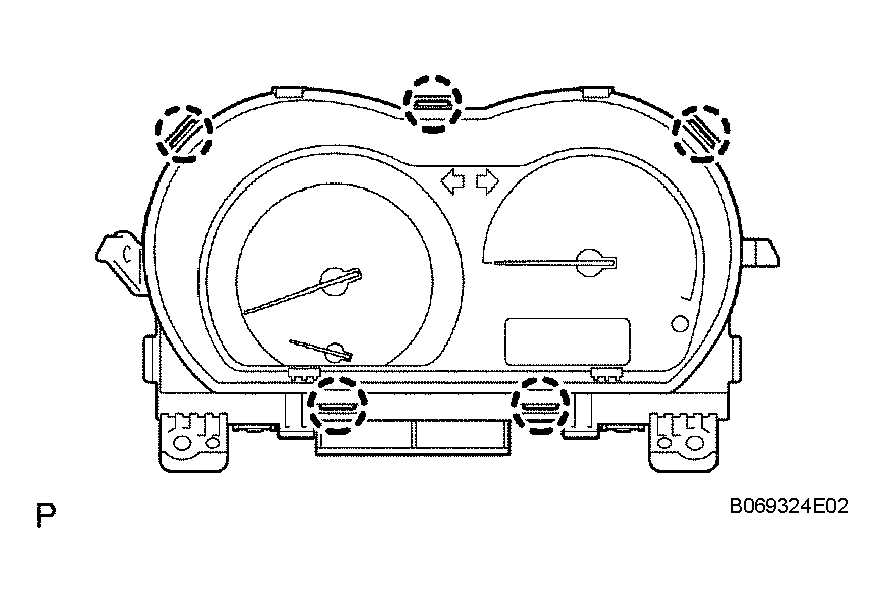

  Fig 1: Detaching Claws And Removing Meter Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE COMBINATION METER GLASS
1. Using a screwdriver, detach the 5 claws and remove the meter glass.

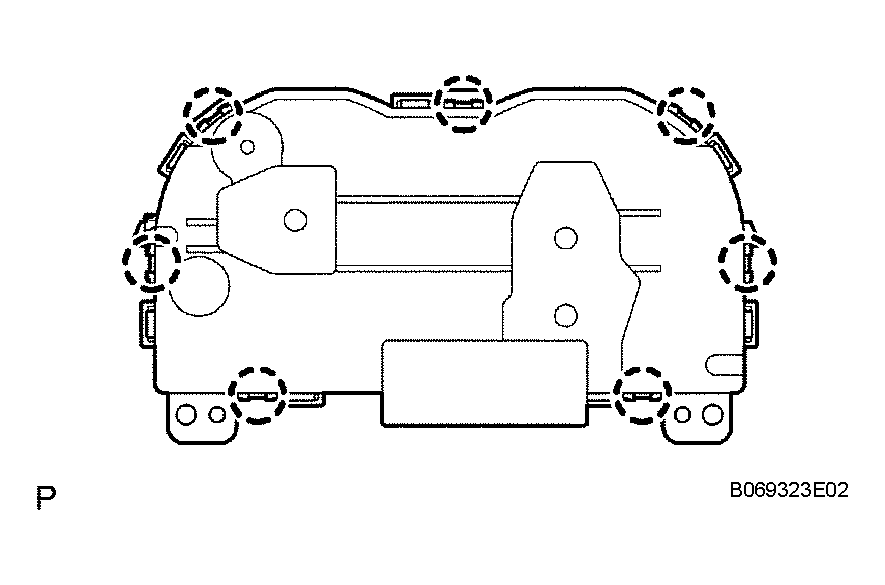

  Fig 2: Detaching Claws And Removing Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
