Combination Meter: Installation

INSTALL COMBINATION METER ASSEMBLY

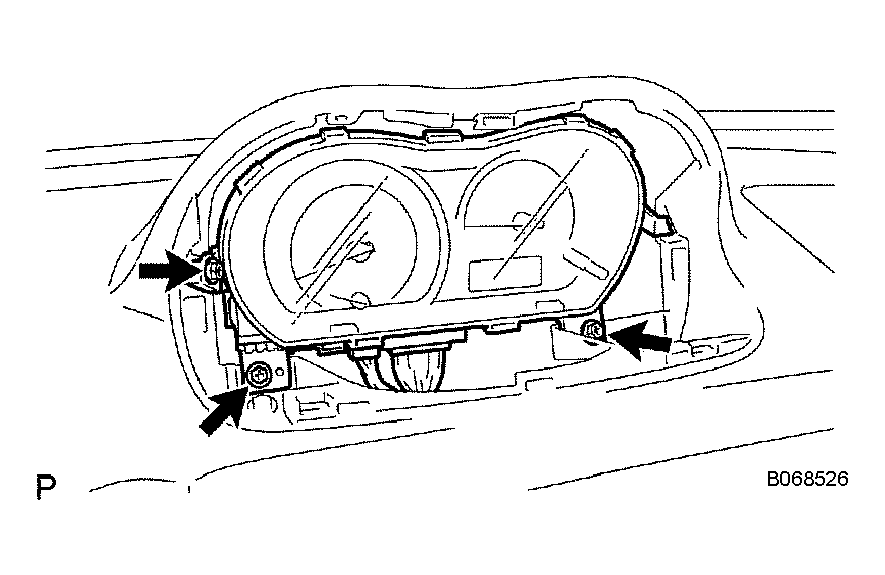

1. Connect the connectors and install the combination meter with the 3 screws.

  Fig 1: Connecting Connectors And Installing Combination Meter With 3 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

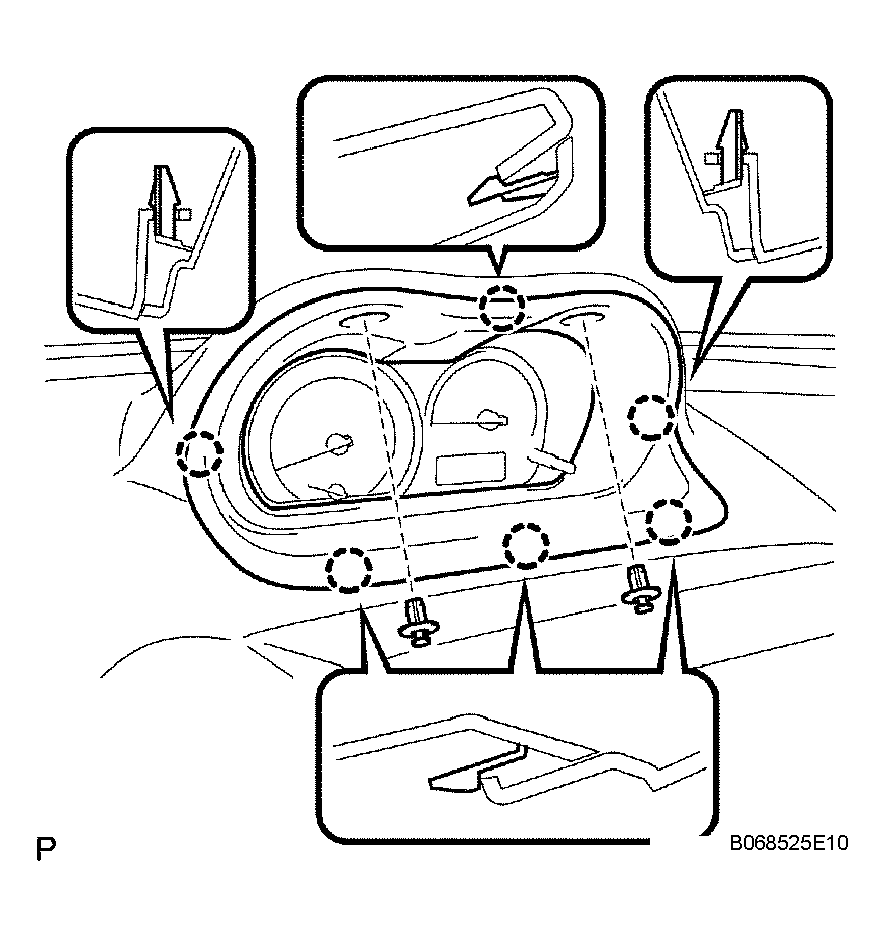

INSTALL INSTRUMENT CLUSTER FINISH PANEL
1. Attach the 6 claws to install the cluster finish panel.
2. Install the 2 clips.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

  Fig 2: Checking SRS Warning Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
