Combination Meter: Reassembly

  1. INSTALL COMBINATION METER GLASS

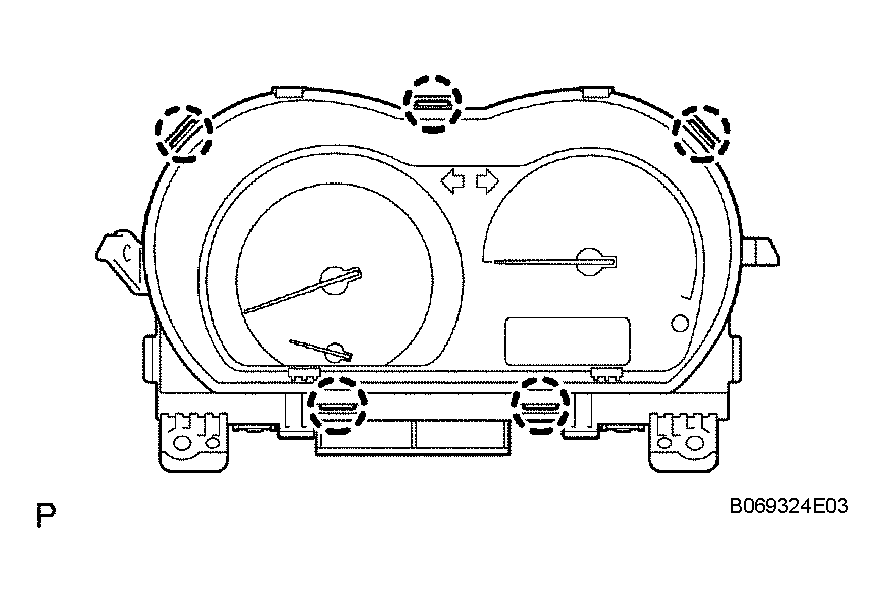

    1. Attach the 5 claws to install the meter glass.
      Fig 1: Attaching Claws To Installing Meter Glass
      G04158936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL COMBINATION METER CASE

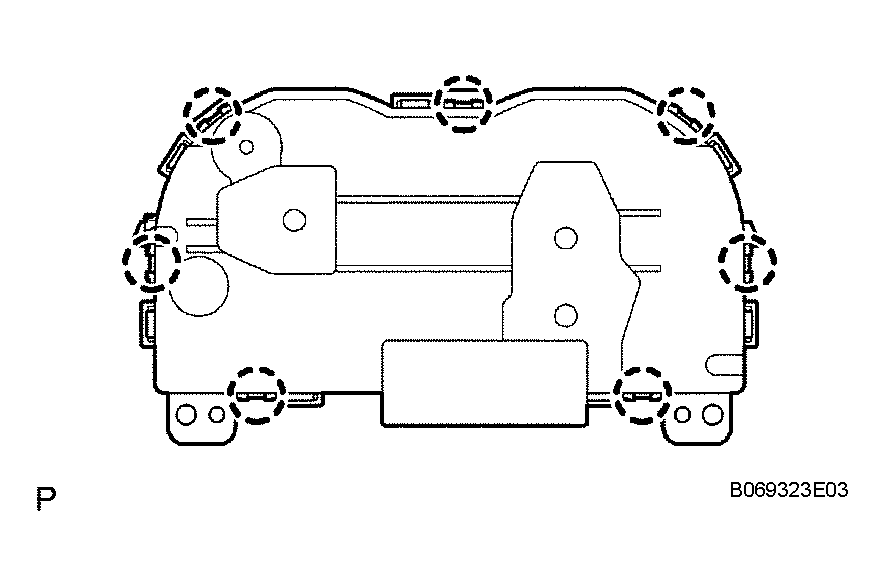

    1. Attach the 7 claws to install the meter case.
      Fig 2: Attaching Claws To Installing Meter Case
      G04158937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
