Combination Meter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE INSTRUMENT CLUSTER FINISH PANEL
1. Remove the 2 clips.
2. Using a screwdriver, detach the 6 claws and remove the cluster finish panel.

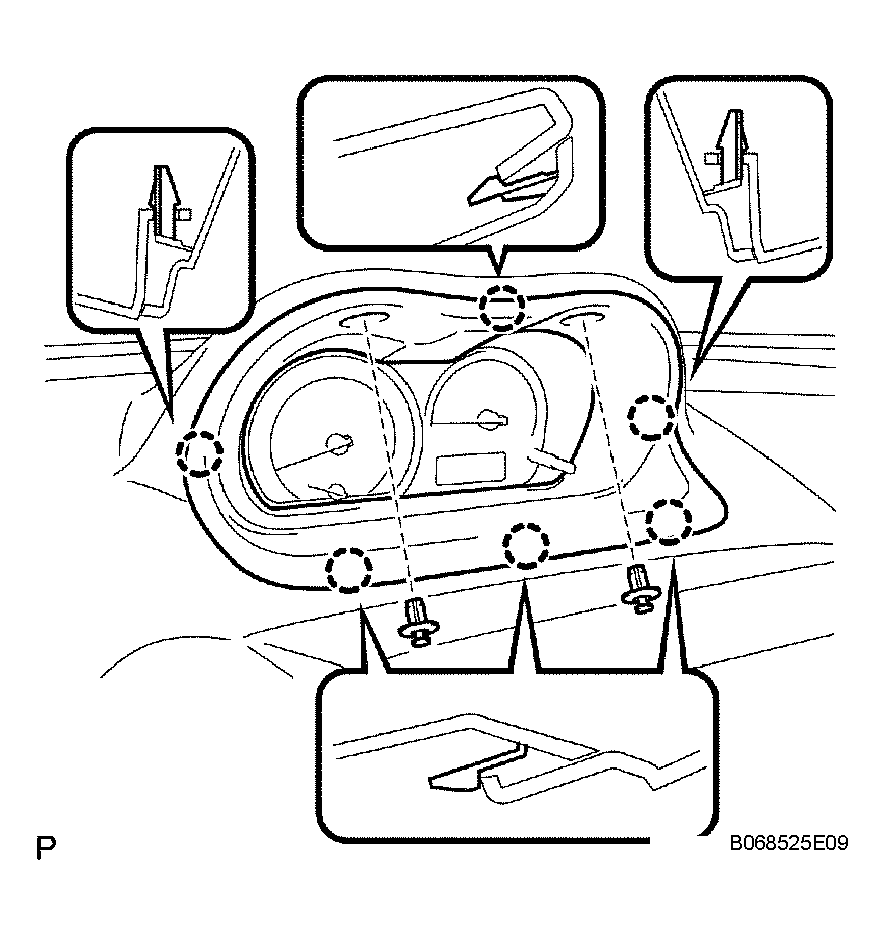

  Fig 1: Detaching Claws And Removing Cluster Finish Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 3 screws.
2. Disconnect the connectors and remove the combination meter.

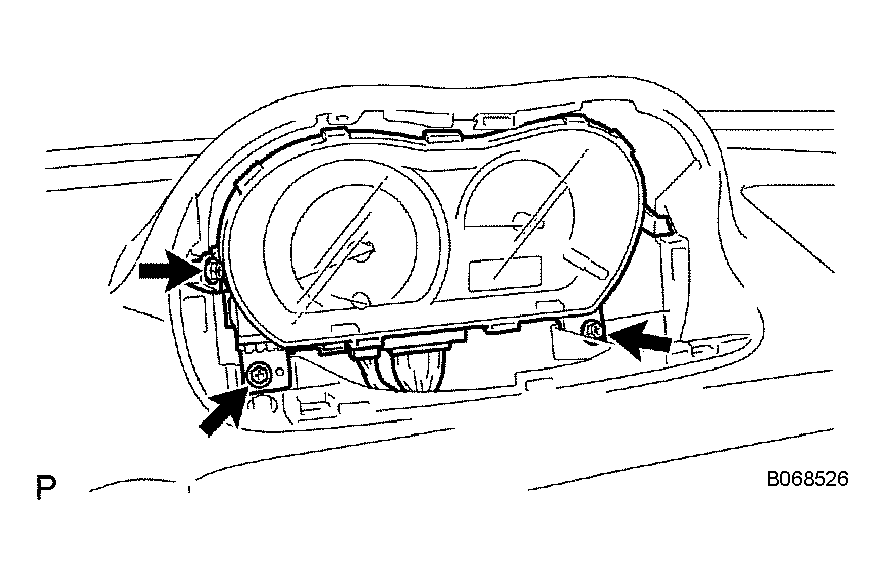

  Fig 2: Removing Combination Meter Assembly Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
