Automatic Transaxle Assembly: Installation

1. Inspect the torque converter clutch (see INSPECTION  ).

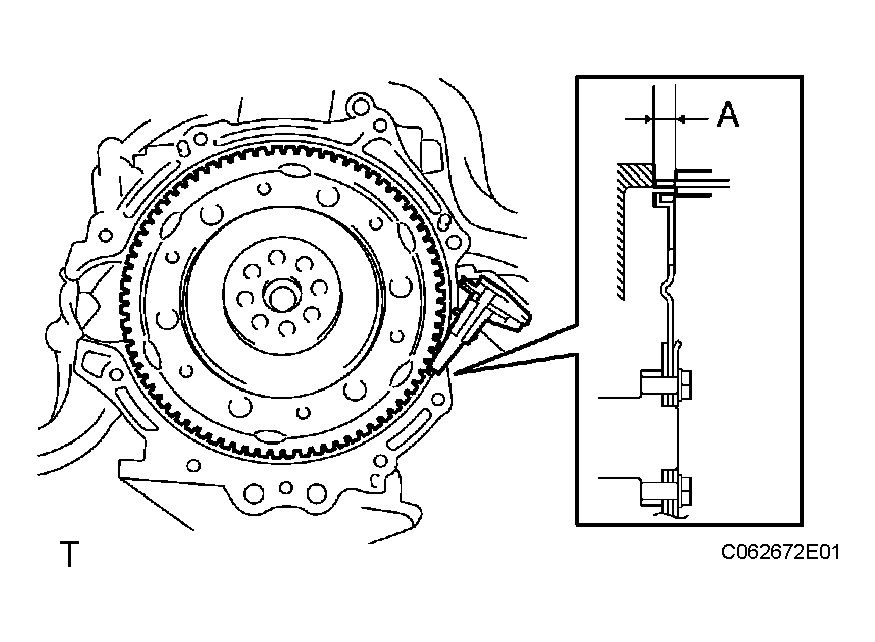

1. Using a vernier caliper, measure the dimension "A" between the transaxle fitting part of the engine and the converter clutch fitting part of the drive plate.
   Fig 1: Measuring Dimension "A" Between Transaxle Fitting Part Of Engine And Converter Clutch Fitting Part Of Drive Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Set the key at the top of the front oil pump drive gear and put a mark on the housing.

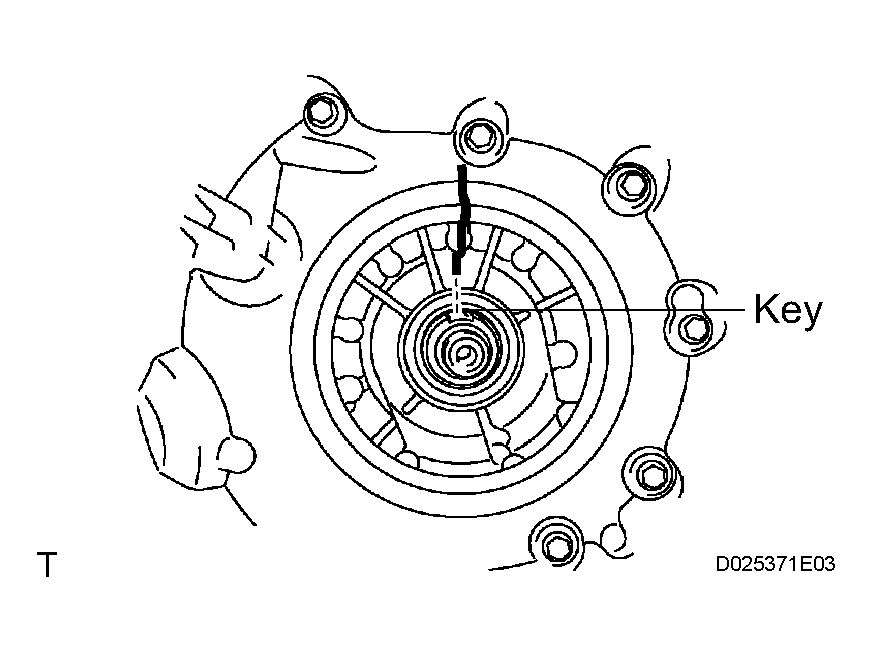

   Fig 2: Setting Key At Top Of Front Oil Pump Drive Gear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Put a mark on the torque converter clutch so that its groove is clearly indicated.

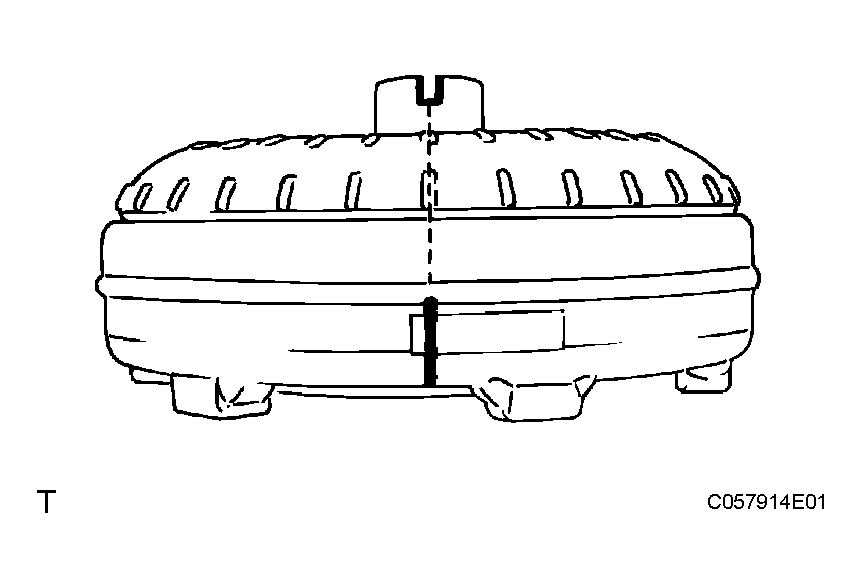

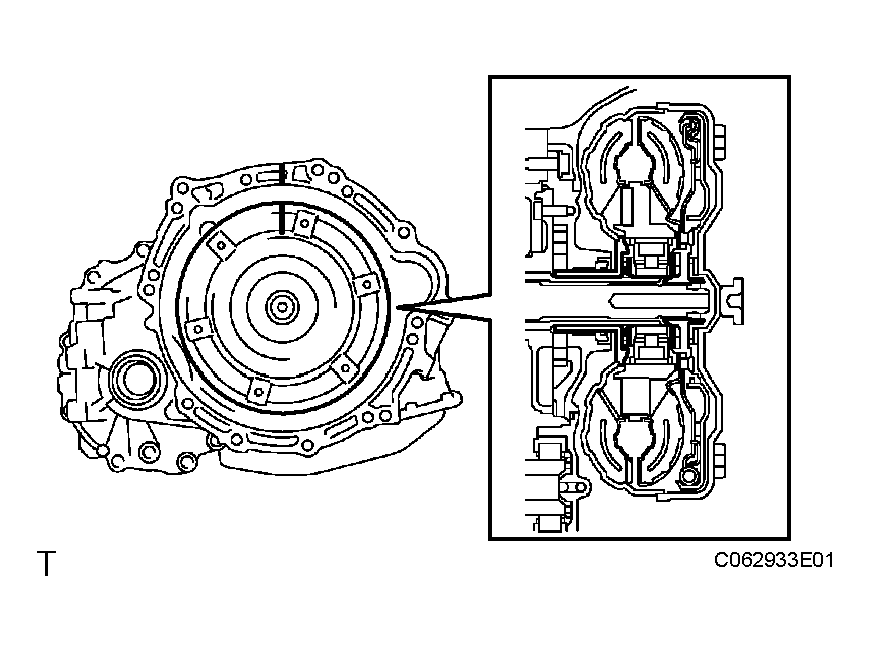

   Fig 3: Identifying Mark On Torque Converter Clutch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Align the marks on the case and converter clutch, and fit the splined part of the input shaft to the spline part of the turbine runner.

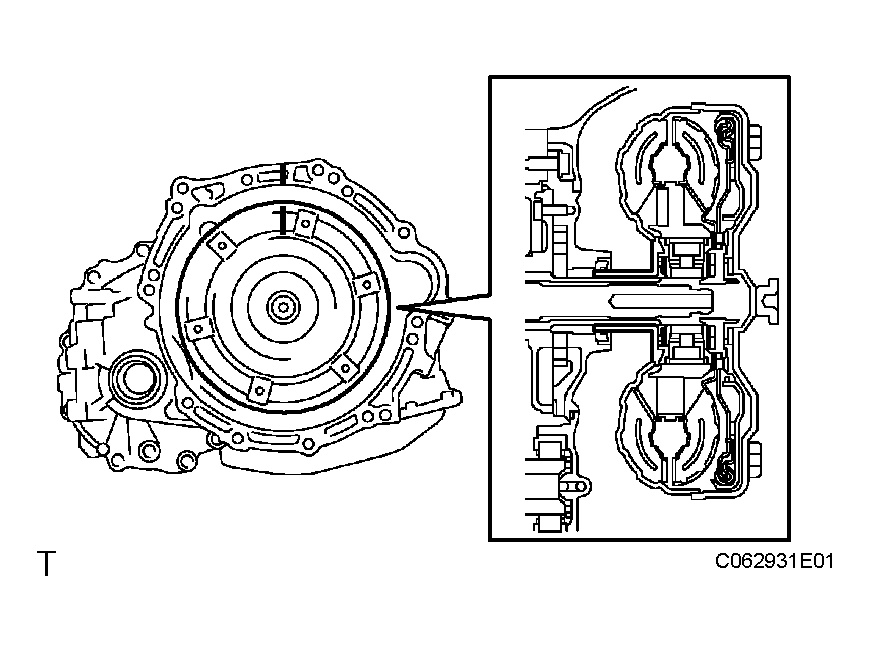

   Fig 4: Aligning Marks On Case And Converter Clutch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Rotating the converter clutch, fit the spline part of the stator shaft with that of the stator.

   HINT:

   Rotate it approximately 180°.

   Fig 5: Fitting Spline Part Of Stator Shaft With Stator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Rotating the converter clutch, align the marks on the case and converter clutch again, and fit the key of the oil pump drive gear into the keyway of the converter.
   NOTE: When rotating the converter, do not push it with excessive force.

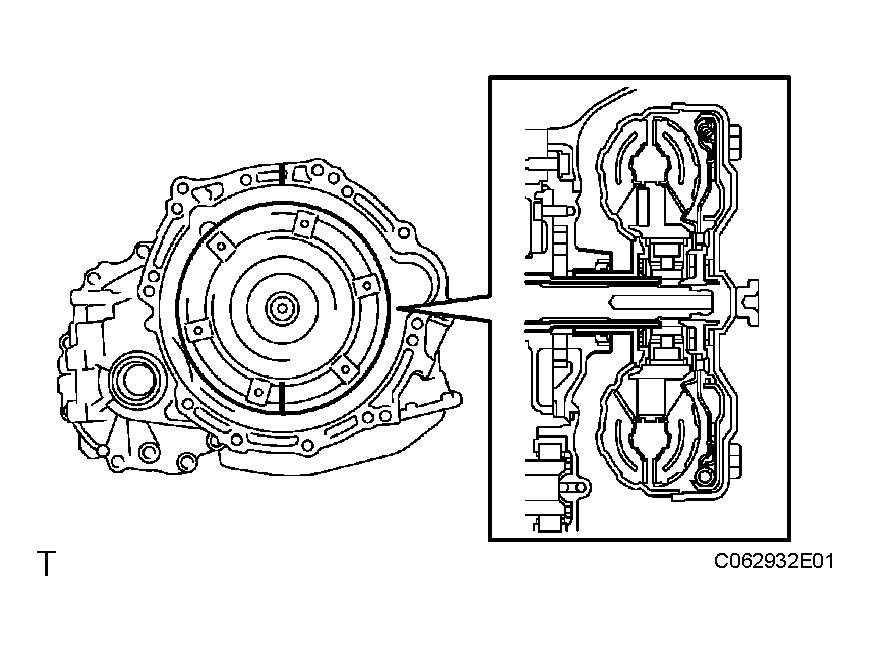

   Fig 6: Aligning Marks On Case And Converter Clutch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Using a vernier caliper and straightedge, measure the dimension "B" shown in the illustration and check that "B" is greater than "A".

   HINT:

   Dimension "A" is the measurement between the transaxle fitting part of the engine and the converter clutch fitting part of the drive plate.

   Standard dimension: A + 1 mm (0.04 in.) or more

   NOTE: Remember to subtract the thickness of the straightedge.

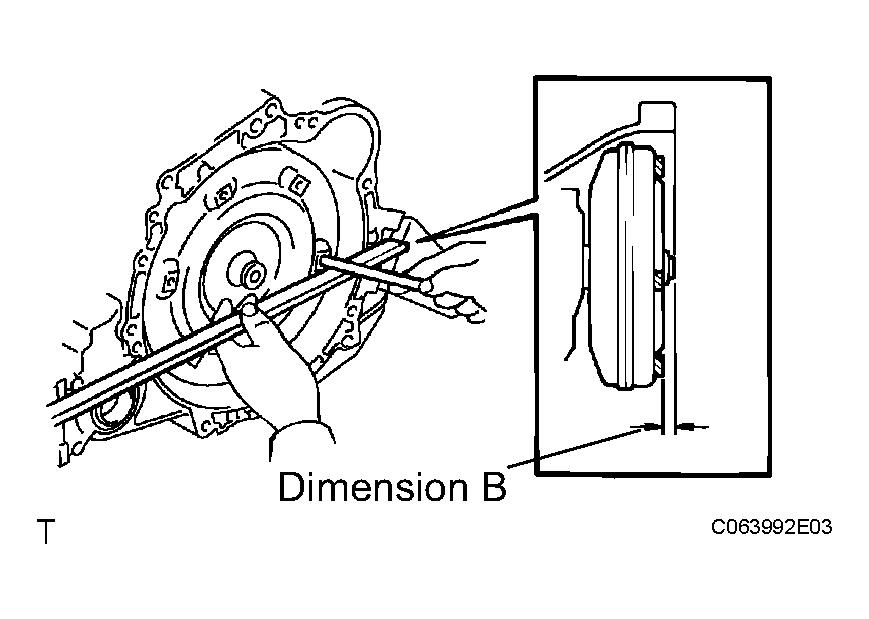

   Fig 7: Measuring Dimension B

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Temporarily install the oil cooler outlet tube.
2. Temporarily install the oil cooler inlet tube.
3. Coat a new O-ring with ATF, and install it on the oil filler tube.
4. Install the oil filler tube on the automatic transaxle.
5. Install the breather hose on the oil filler tube.
6. Install the oil cooler tube clamp with the 2 bolts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

7. Install the ATF level gauge.

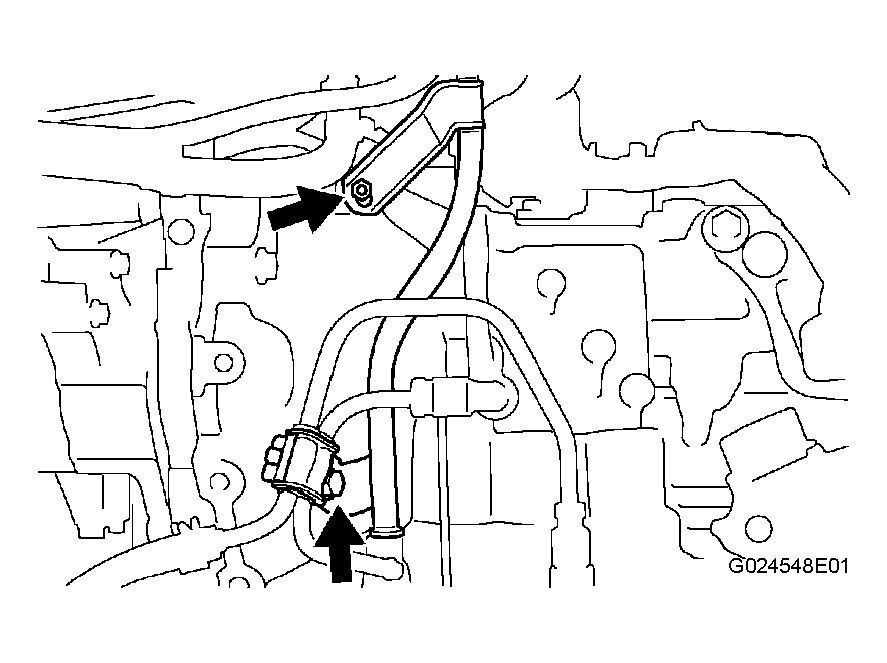

   Fig 8: Installing Transmission Oil Filler Tube Subassembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, tighten the oil cooler outlet tube.

   SST 09023-12701

   Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

1. Using SST, tighten the oil cooler inlet tube.

   SST 09023-12701

   Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

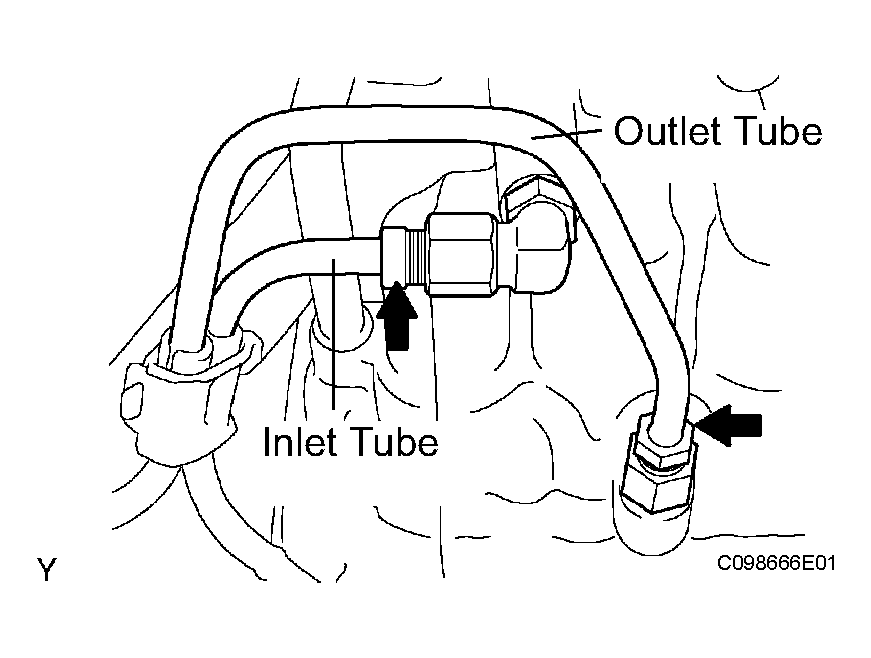

   Fig 9: Installing No. 1 Oil Cooler Tubes

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

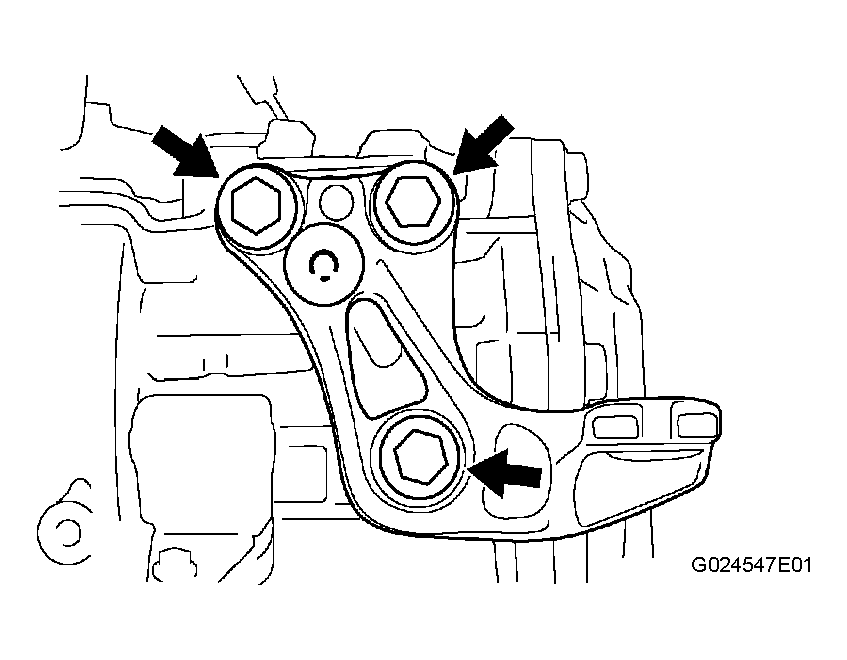

1. Install the engine mounting bracket LH on the automatic transaxle with the 3 bolts.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

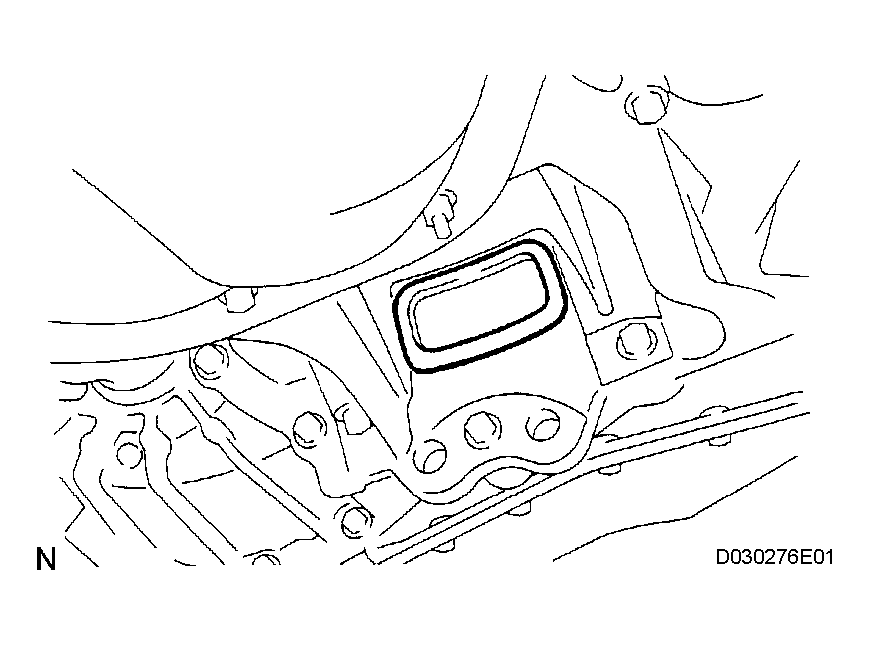

   Fig 10: Installing Engine Mounting Bracket LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the automatic transaxle on the engine with the 7 bolts.

   Torque: 30 N*m (301 kgf*cm, 22 ft.*lbf)

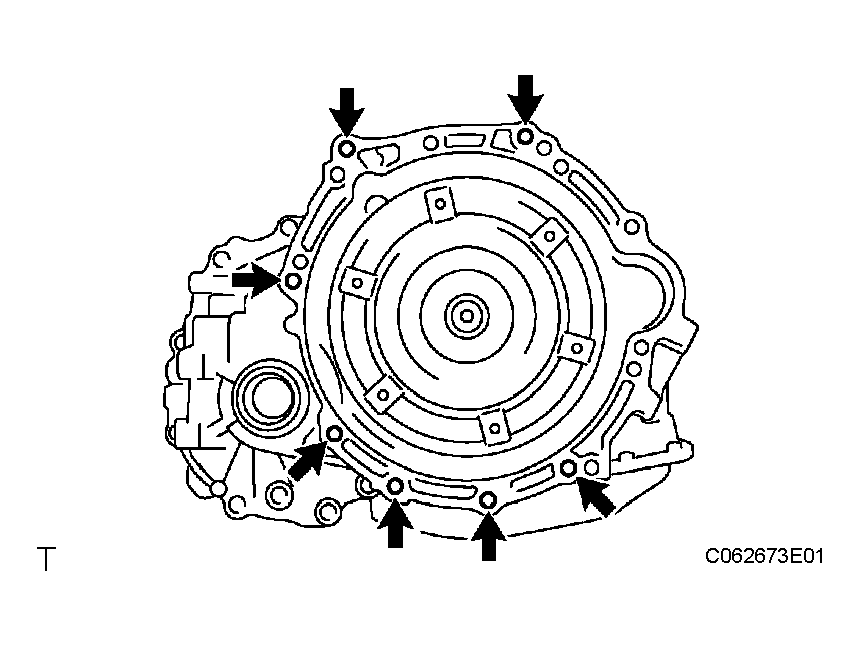

   Fig 11: Installing Automatic Transaxle Assembly To Engine Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 6 torque converter mounting bolts.

   Torque: 27 N*m (280 kgf*cm, 20 ft.*lbf)

   HINT:

   First install the white colored bolt, and then the remaining 5 bolts.

   Fig 12: Locating Torque Converter Mounting Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the flywheel housing under cover.
   Fig 13: Installing Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

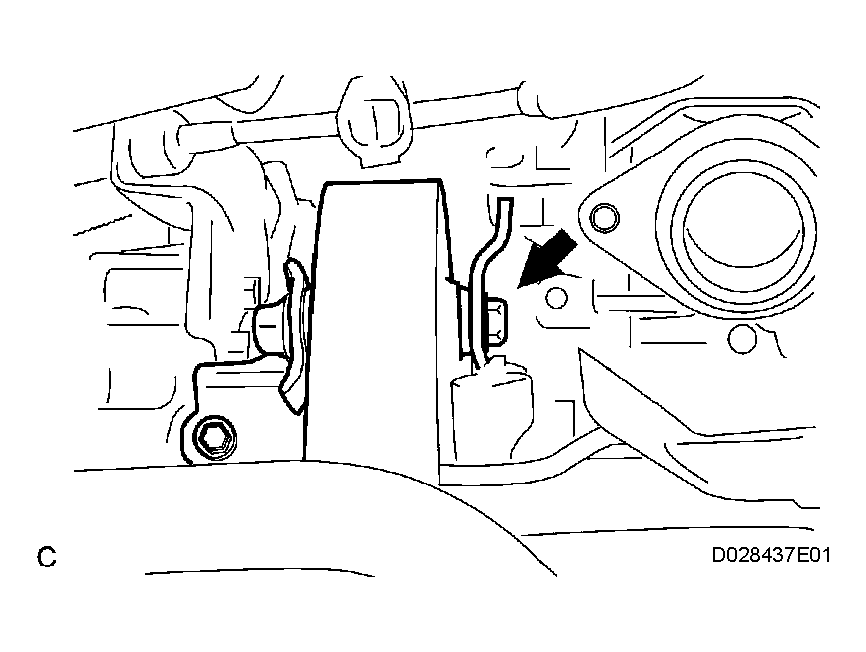

1. Install the engine mounting bracket on the automatic transaxle with the 3 bolts.

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

1. Install the front suspension crossmember (see INSTALLATION ).
   Fig 14: Installing Engine Mounting Bracket Rear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

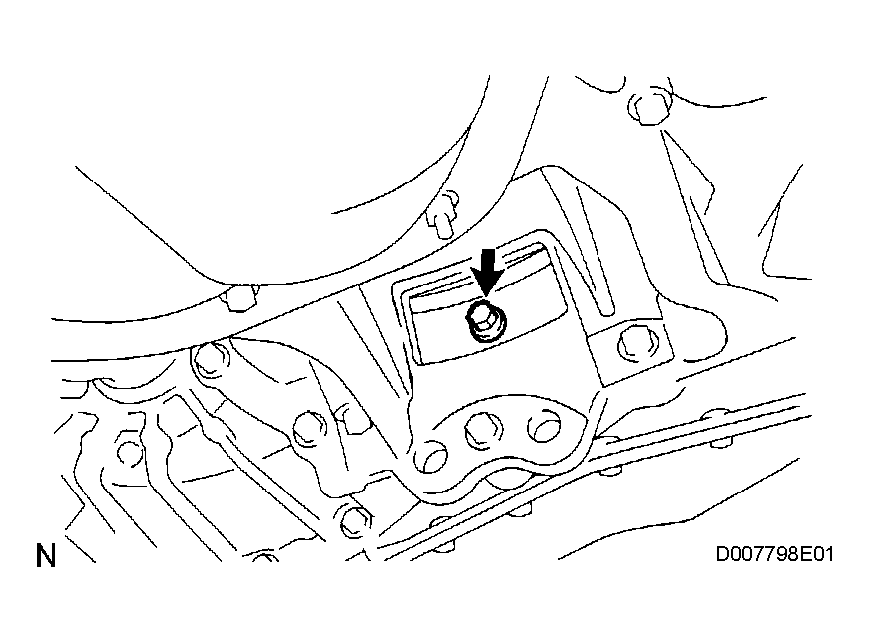

1. Install the engine mounting insulator rear on the engine mounting bracket with the bolt and nut.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

   Fig 15: Installing Engine Mounting Insulator Rear

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

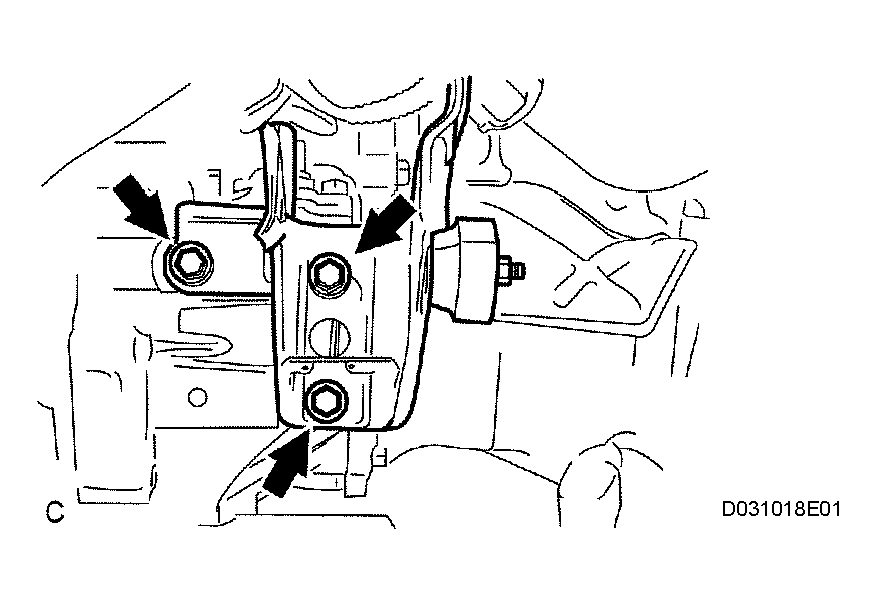

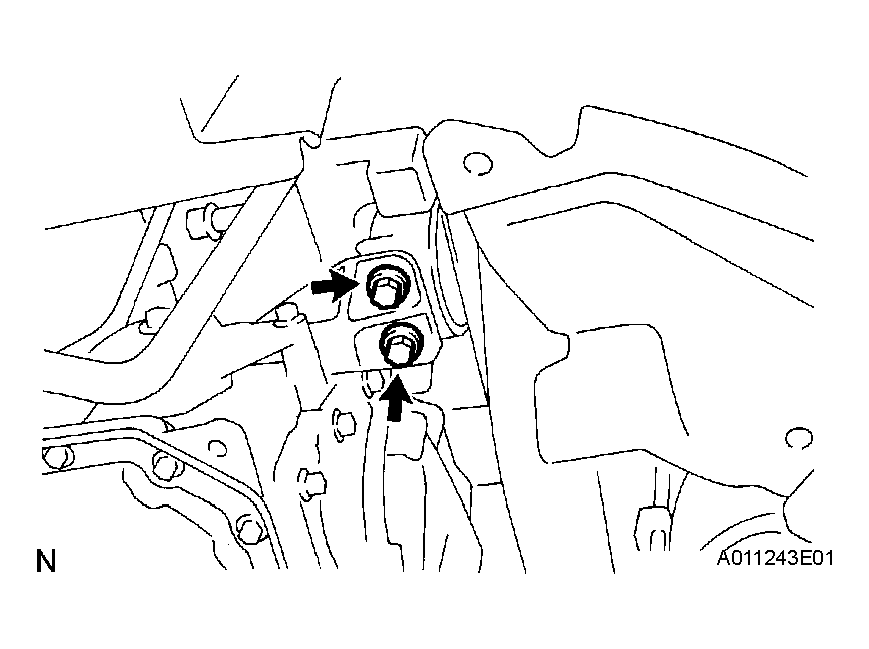

1. Connect the engine mounting bracket to the engine mounting insulator with the 2 bolts.

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

   Fig 16: Connecting Engine Mounting Bracket To Engine Mounting Insulator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

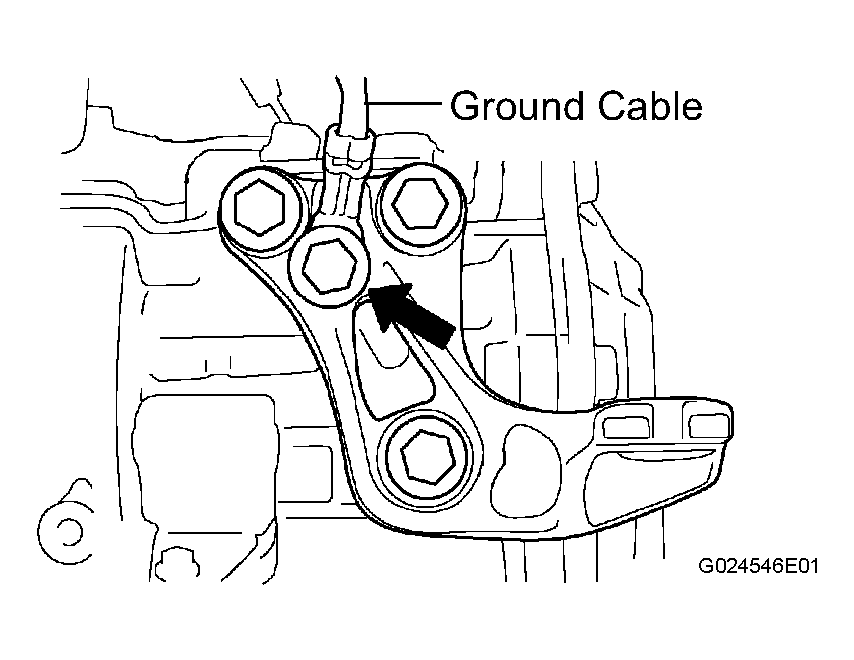

2. Connect the ground cable to the engine mounting bracket with the bolt.

   Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)

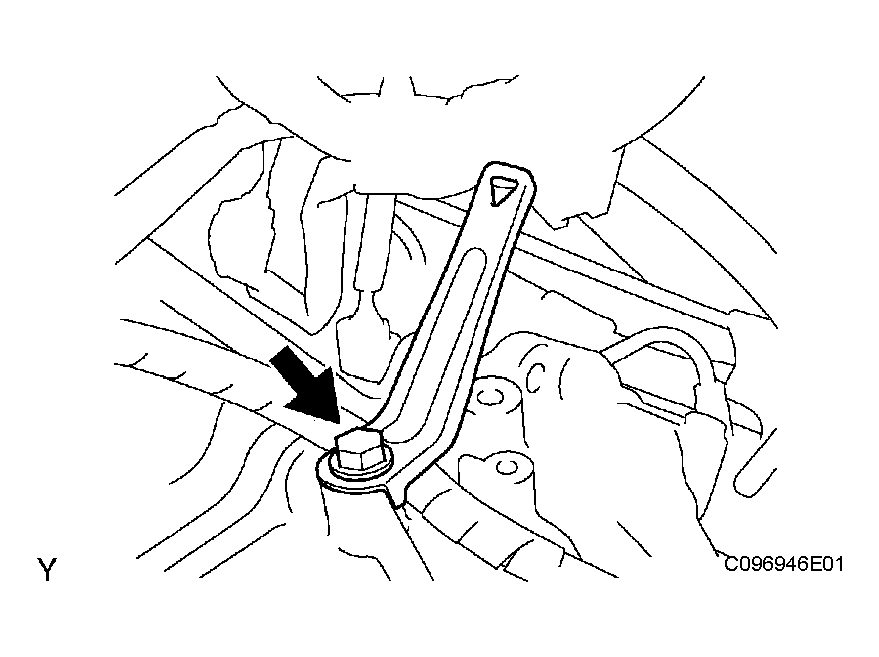

   Fig 17: Connecting Ground Cable To Engine Mounting Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

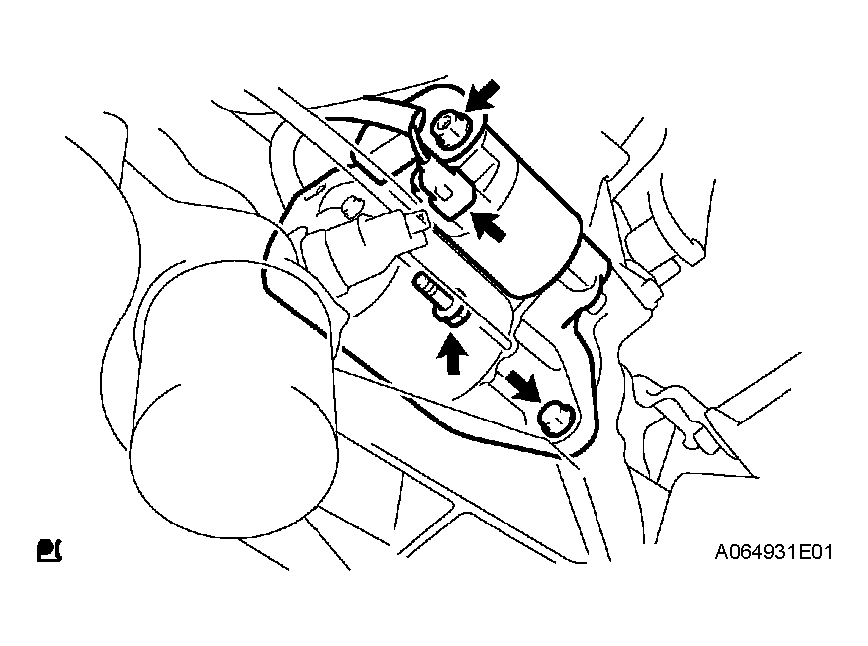

1. Install the starter with the 2 bolts.

   Torque: 37 N*m (380 kgf*cm, 27 ft.*lbf)

2. Connect the connecter.
3. Install the starter wire with the nut.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

   Fig 18: Installing Starter Wire With Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

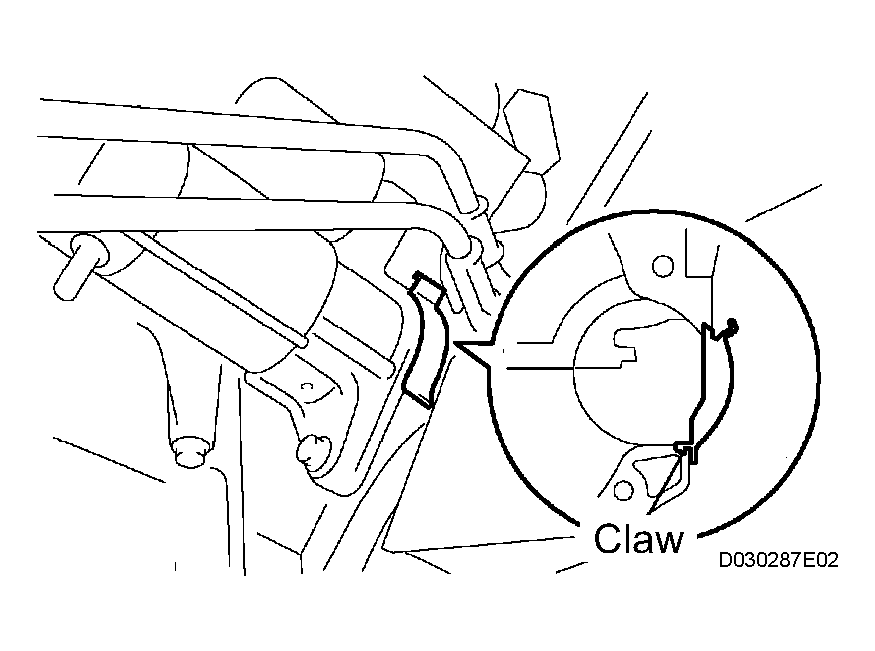

4. Install the flywheel housing side cover.
   Fig 19: Installing Flywheel Housing Side Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

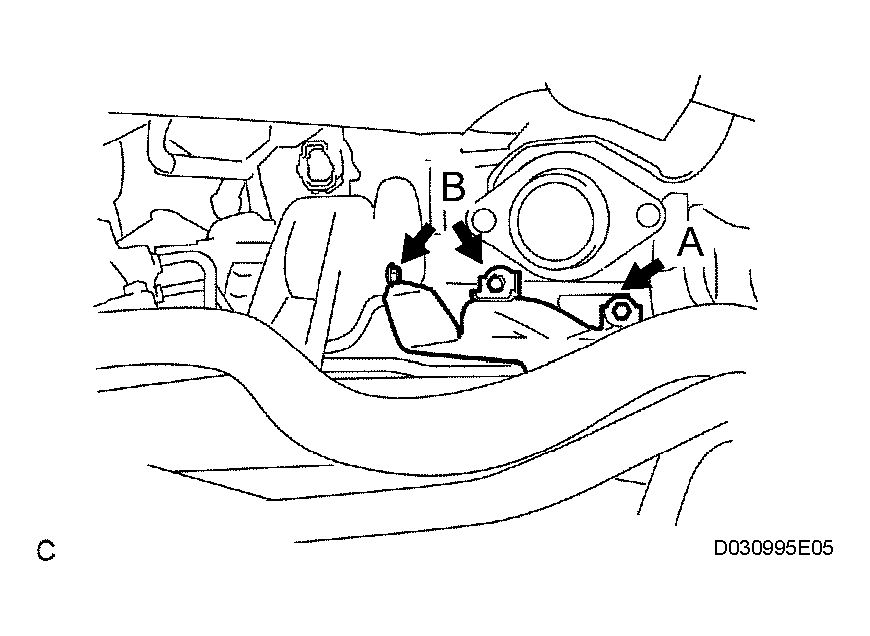

1. Temporarily tighten the bolt labeled A.
2. Fully tighten the 2 bolts labeled B.

   Torque: 18 N*m (180 kgf*cm, 13 ft.*lbf)

3. Fully tighten the bolt labeled A.

   Torque: 18 N*m (180 kgf*cm, 13 ft.*lbf)

1. Install the front drive shaft (see INSTALLATION ).

Fig 20: Installing Drive Shaft Heat Insulator Subassembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front drive shaft (see INSTALLATION ).

1. Install the front exhaust pipe (see INSTALLATION ).

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

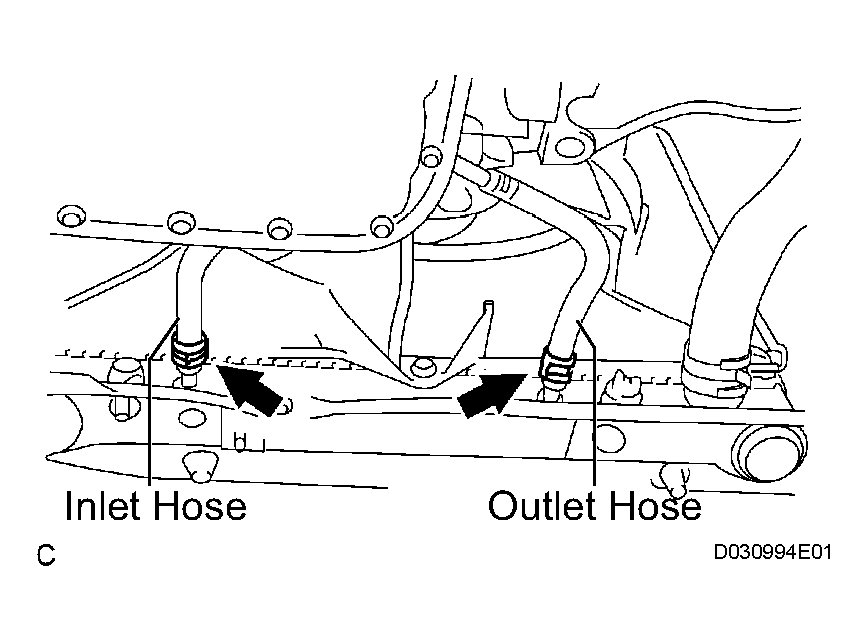

Fig 21: Connecting Oil Cooler Hoses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the transmission wire connector.
2. Connect the park/neutral position switch connector.
3. Connect the transmission revolution sensor connector.

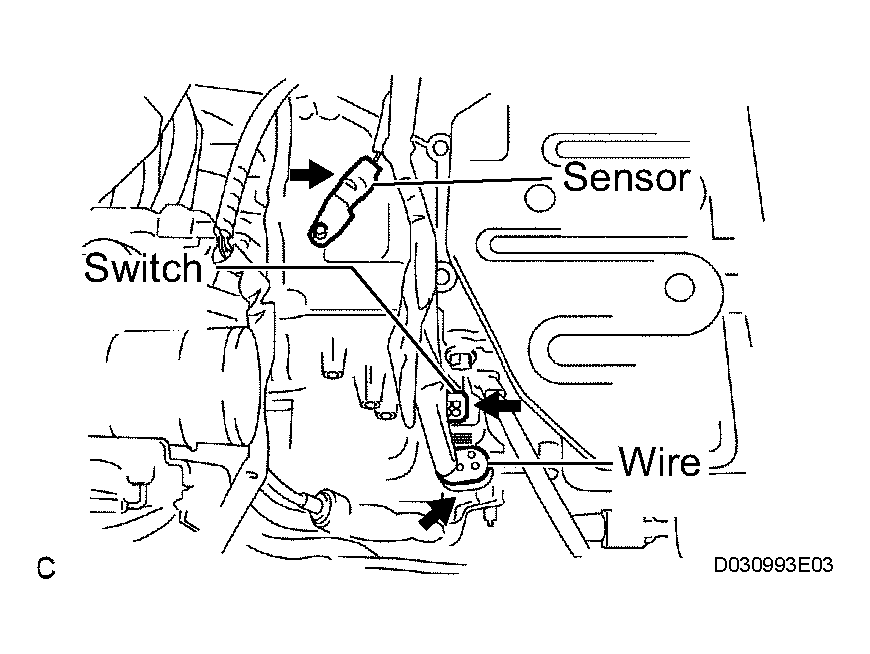

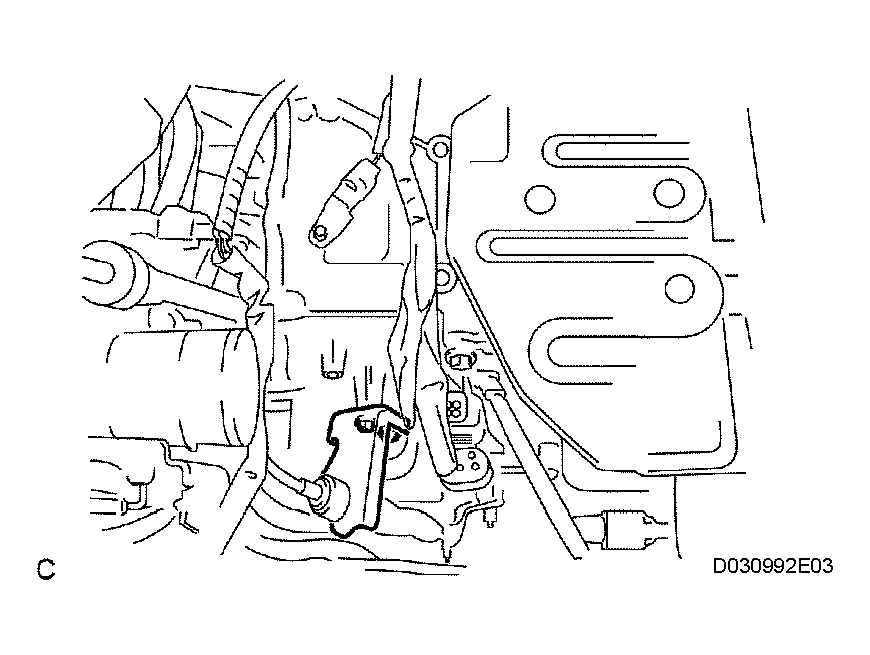

   Fig 22: Connecting Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the air cleaner bracket and transmission control cable support with the 2 bolts.

   Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

2. Connect the wire harness clamp to the air cleaner bracket.

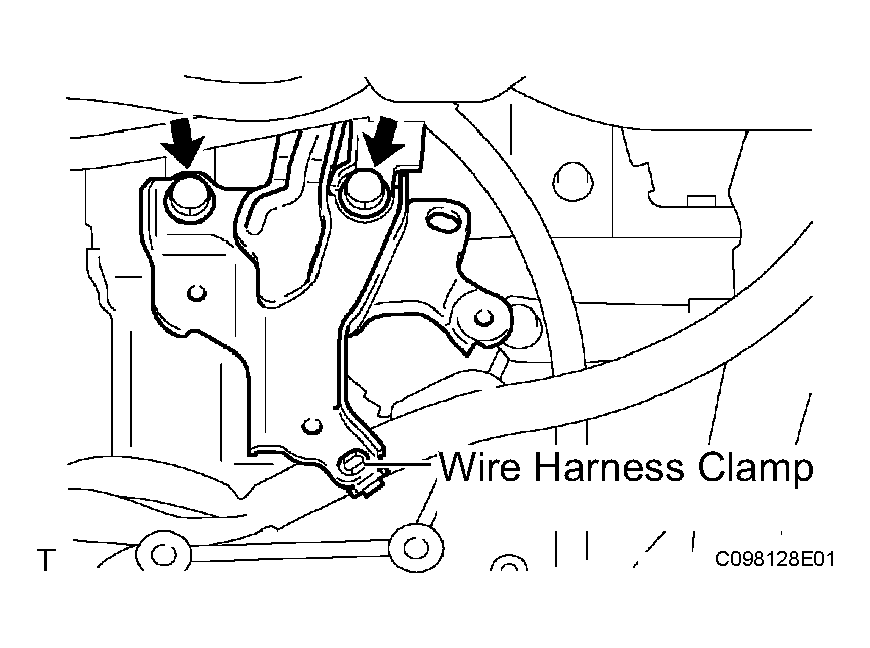

   Fig 23: Installing Air Cleaner Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the wire harness clamp bracket with the bolt.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Fig 24: Installing Wire Harness Clamp Bracket With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the control cable bracket with the 2 bolts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

   Fig 25: Installing No. 1 Transmission Control Cable Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

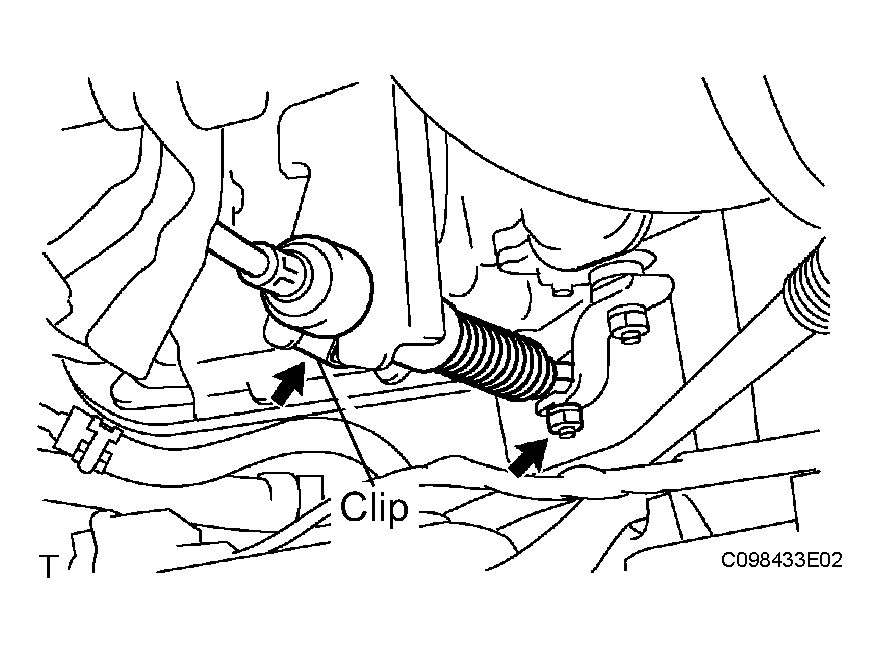

1. Temporarily install the control cable on the control shaft lever with the nut.
2. Install the control cable and a new clip on the bracket.

1. Install the air cleaner (see INSTALLATION ).

1. Install the cowl top panel outer (see INSTALLATION ).

1. Install the windshield wiper link (see INSTALLATION ).

Torque: 13 N*m (132 kgf*cm, 10 ft.*lbf)

1. Inspect and adjust the hood (see ADJUSTMENT ).

1. Inspect the AUTOMATIC TRANSAXLE FLUID  (see ).

1. Adjust the shift lever position (see ADJUSTMENT  ).

1. Inspect the shift lever position (see ADJUSTMENT  ).

1. Inspect and adjust the front wheel alignment (see INSPECTION ).

1. Check the ABS speed sensor signal (see HOW TO PROCEED WITH TROUBLESHOOTING ).

1. Perform initialization (see INITIALIZATION  ).
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
