Floor Shift Assembly: Components

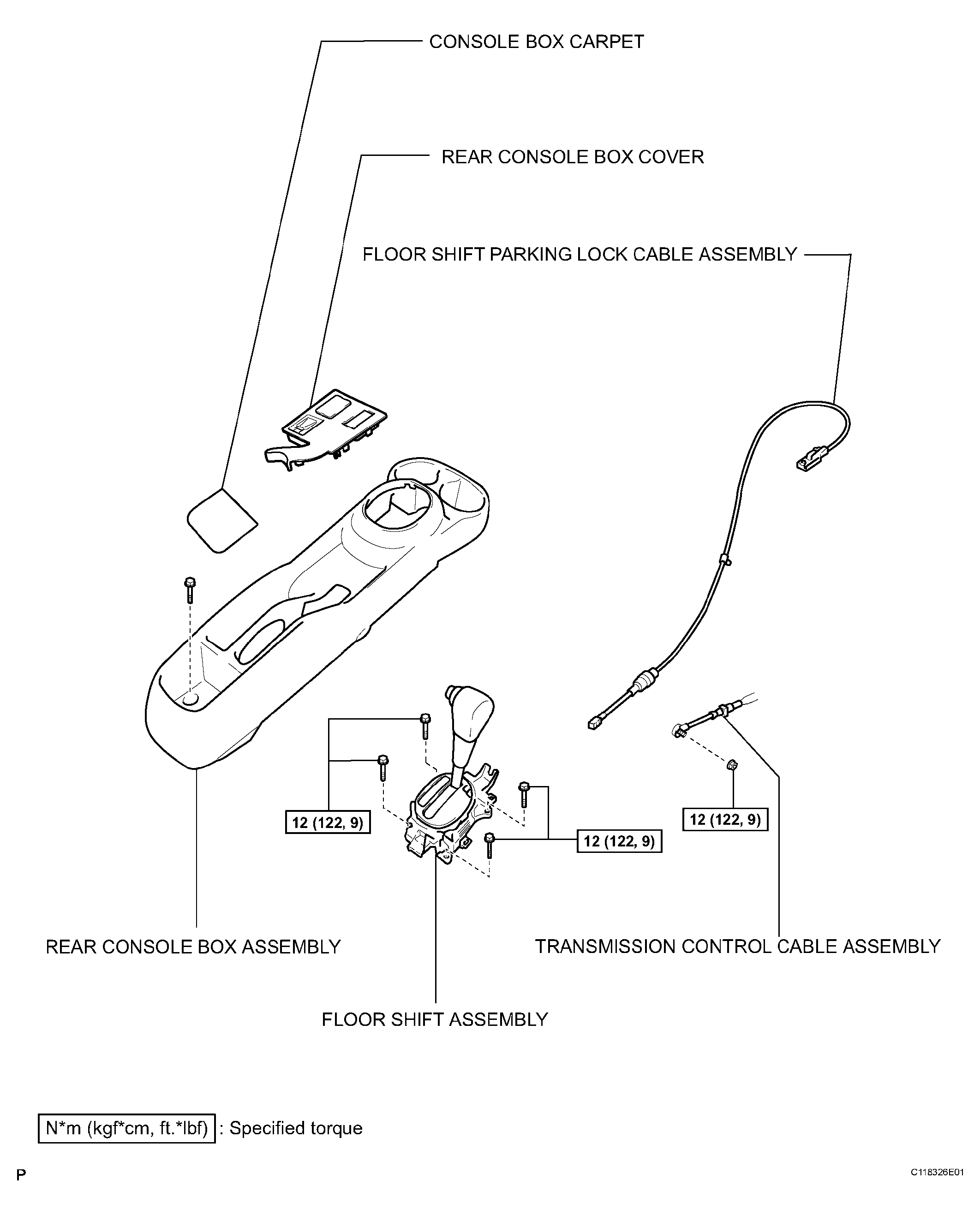

Fig 1: Identifying Floor Shift Assembly Components (1 Of 3)
G04154046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

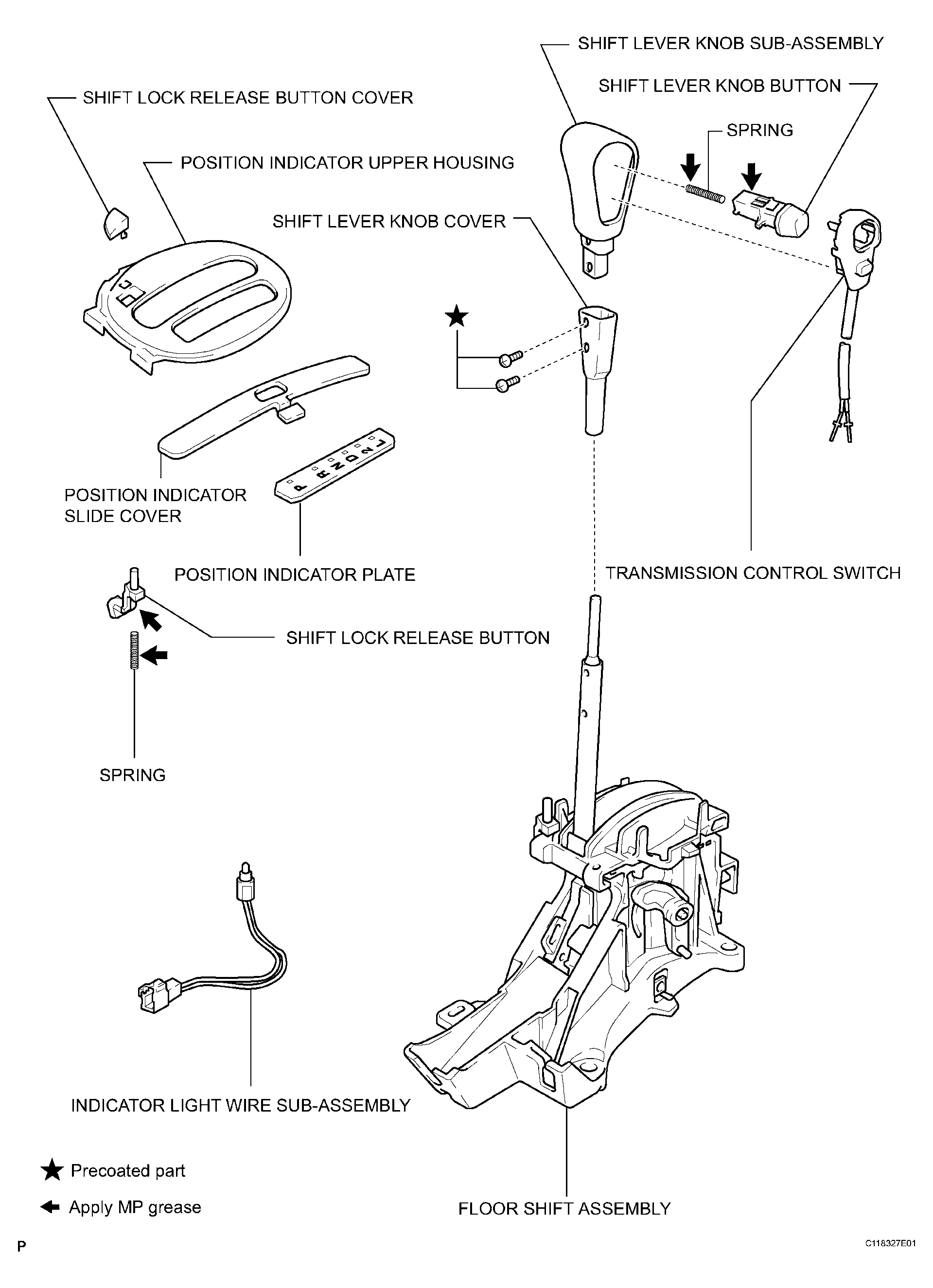

Fig 2: Identifying Floor Shift Assembly Components (2 Of 3)
G04154047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

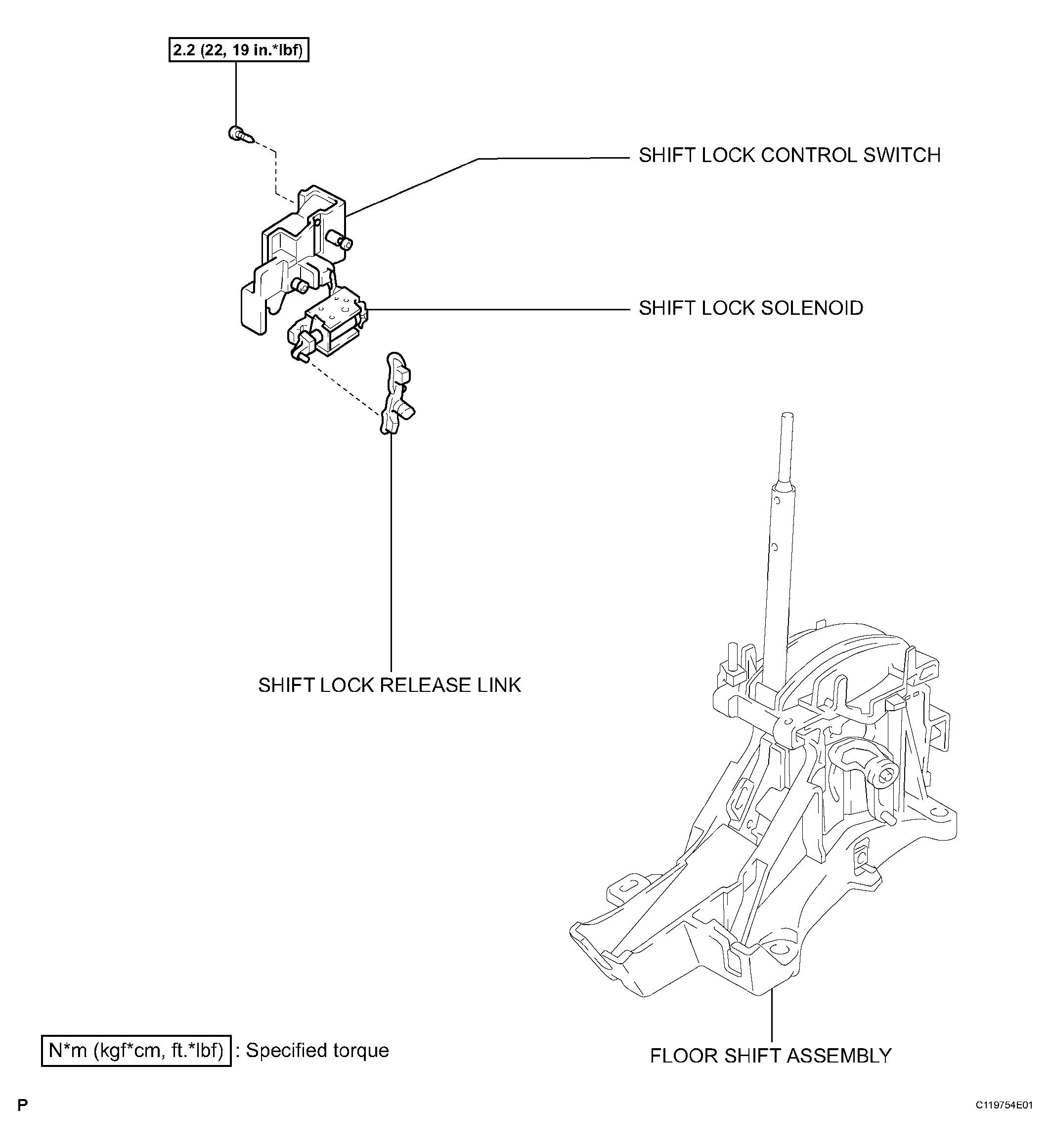

Fig 3: Identifying Floor Shift Assembly Components (3 Of 3)
G04154048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
