Intermediate Shaft: Components

Fig 1: Identifying Intermediate Shaft Components (1 Of 2)
G04154389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

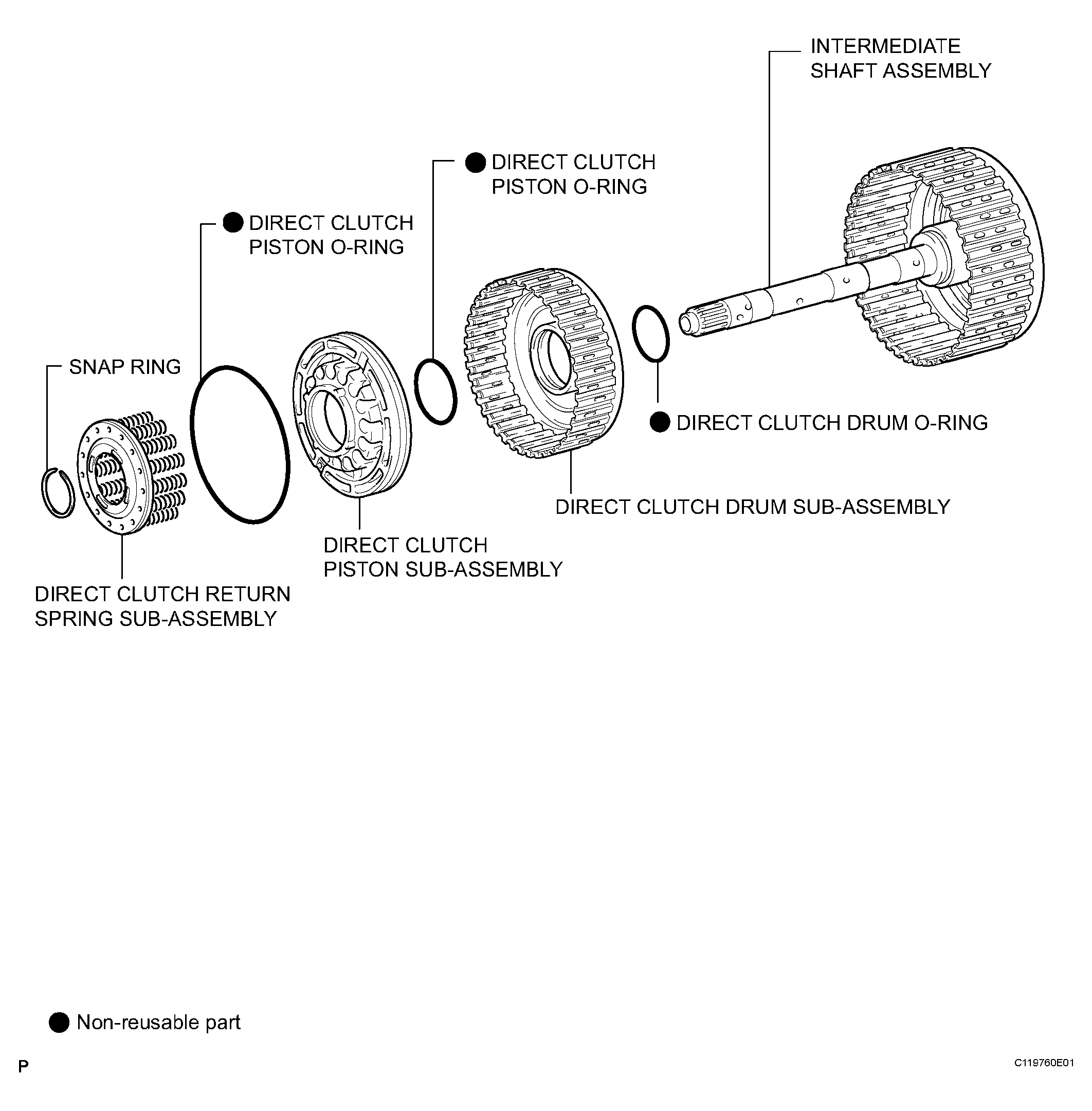

Fig 2: Identifying Intermediate Shaft Components (2 Of 2)
G04154390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
