Home >> Scion >> 2006 >> xA Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> U340E Automatic Transaxle >> Transmission Revolution Sensor >> Components

Transmission Revolution Sensor: Components

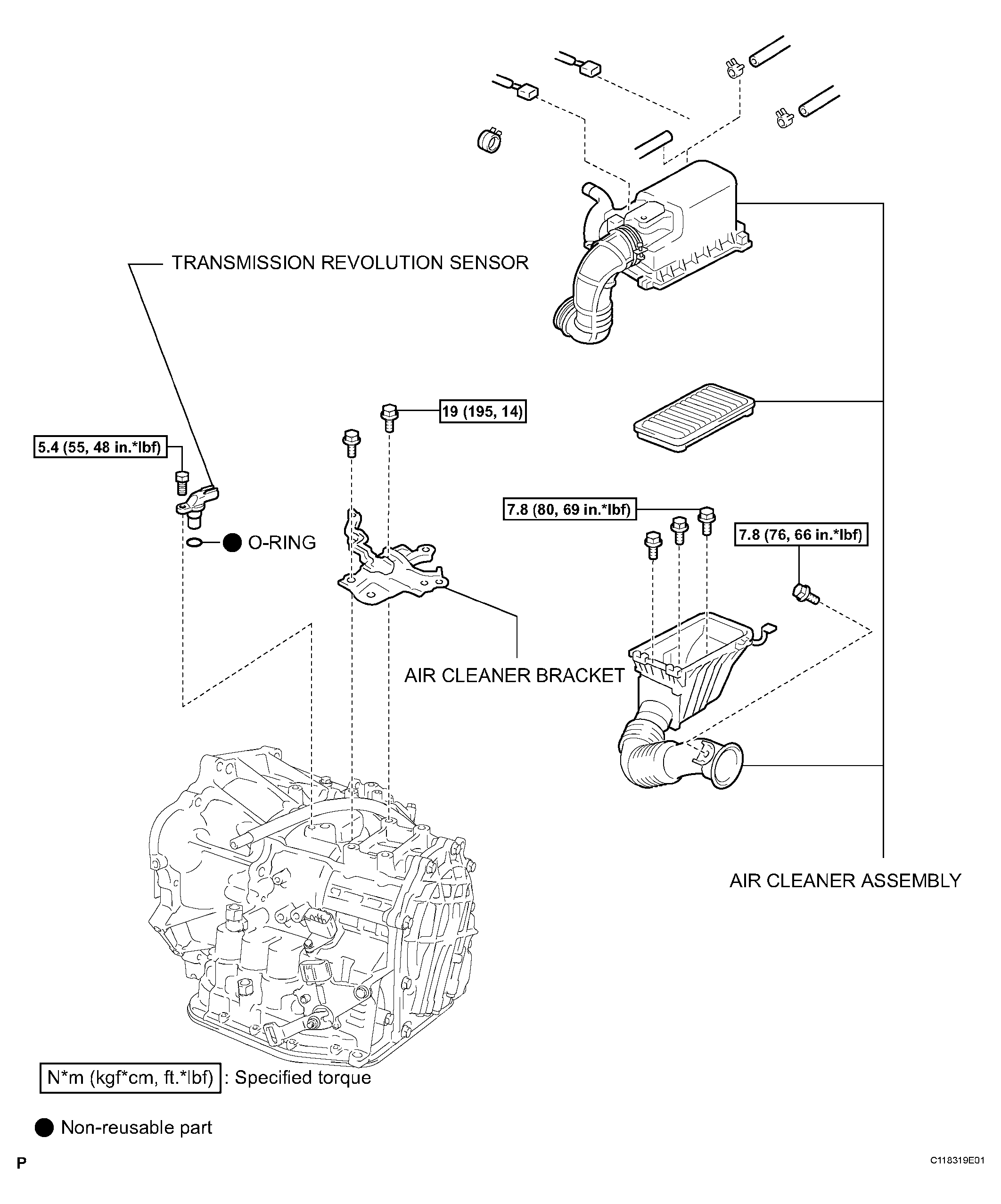

Fig 1: Identifying Transmission Revolution Sensor Components
G04153963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
