Cigarette Lighter Assembly: Installation

  1. Install cigarette lighter assembly.
    1. Align the socket with the notch on the cigarette lighter bezel stay and push the cigarette lighter in as hard as possible.
    2. Install the cigarette lighter knob and element.

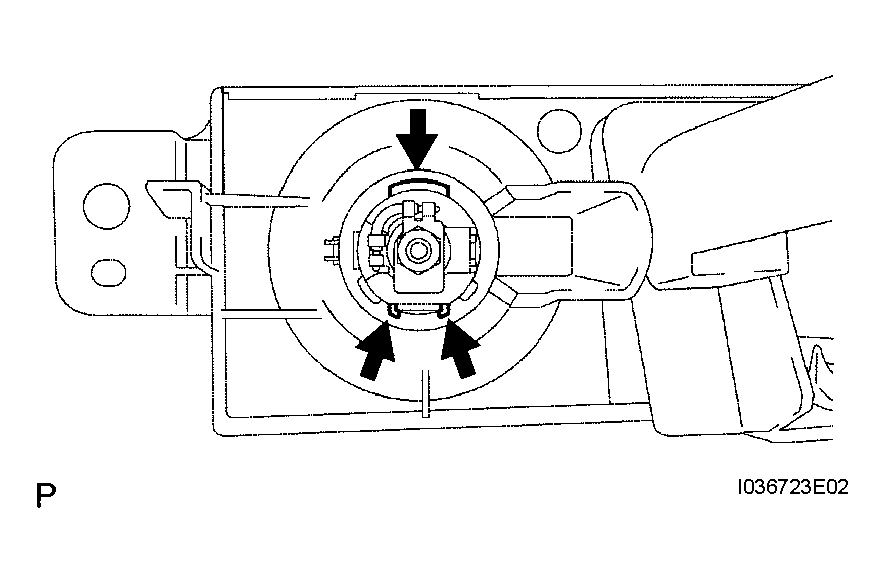

      Fig 1: Installing Cigarette Lighter Knob And Element
      G04229407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Attach the 2 claws to install the cigarette lighter cover.
  3. Install instrument cluster finish panel sub-assembly lower center. See INSTALLATION .
  4. Install instrument cluster finish panel center. See INSTALLATION .
  5. Install heater control knob. See INSTALLATION .
  6. Connect cable to negative battery terminal.

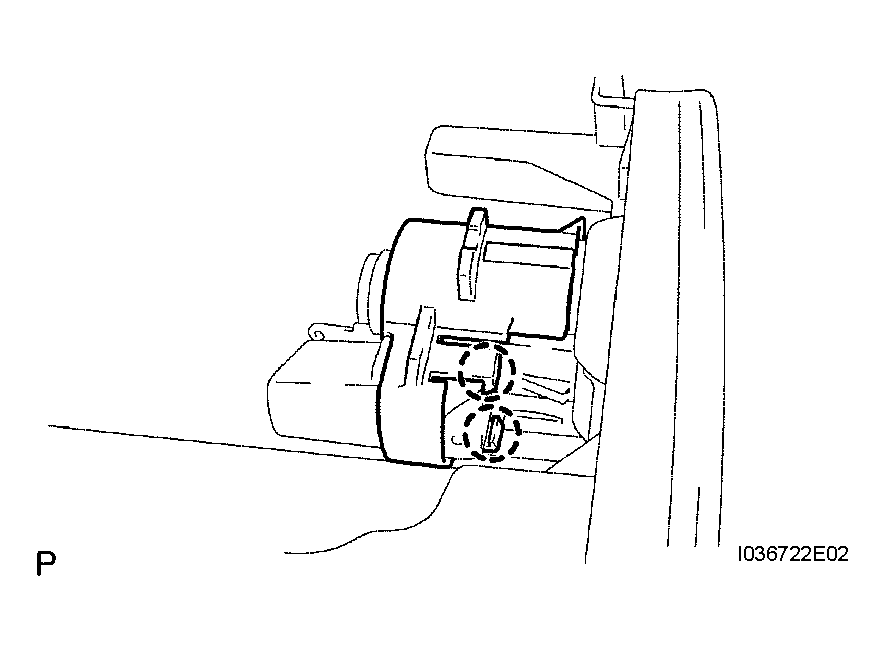

    Fig 2: Installing Cigarette Lighter Cover
    G04229408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
