Home >> Scion >> 2006 >> xB Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Charging >> Notes

OEM System Circuits: Charging: Notes

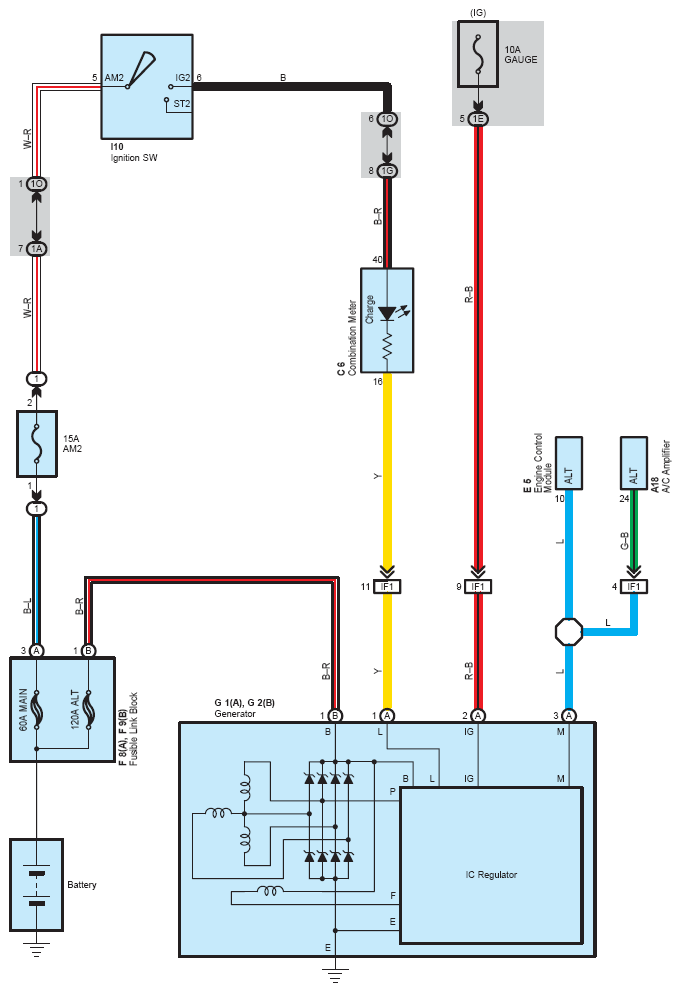

Fig 1: Charging System Wiring Diagram

G08758995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
