Home >> Scion >> 2006 >> xB Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Multiplex Communication System - CAN >> Notes

Multiplex Communication System - CAN: Notes

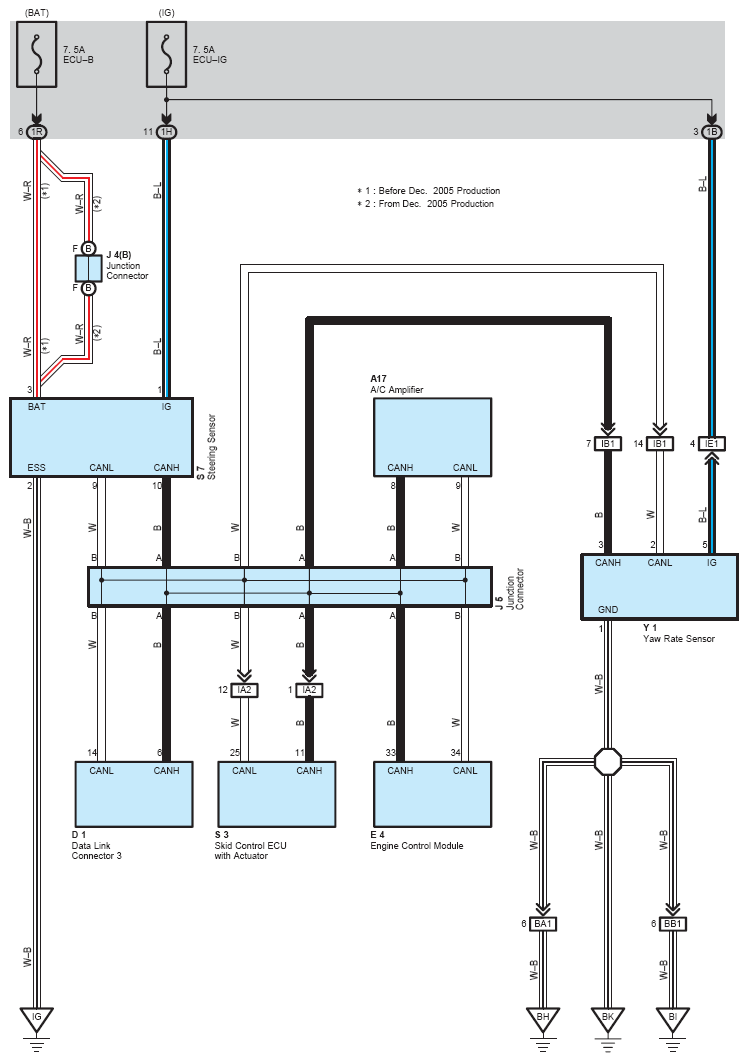

Fig 1: Multiplex Communication - CAN System Wiring Diagram
G08759031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
