PTC Heater: Notes

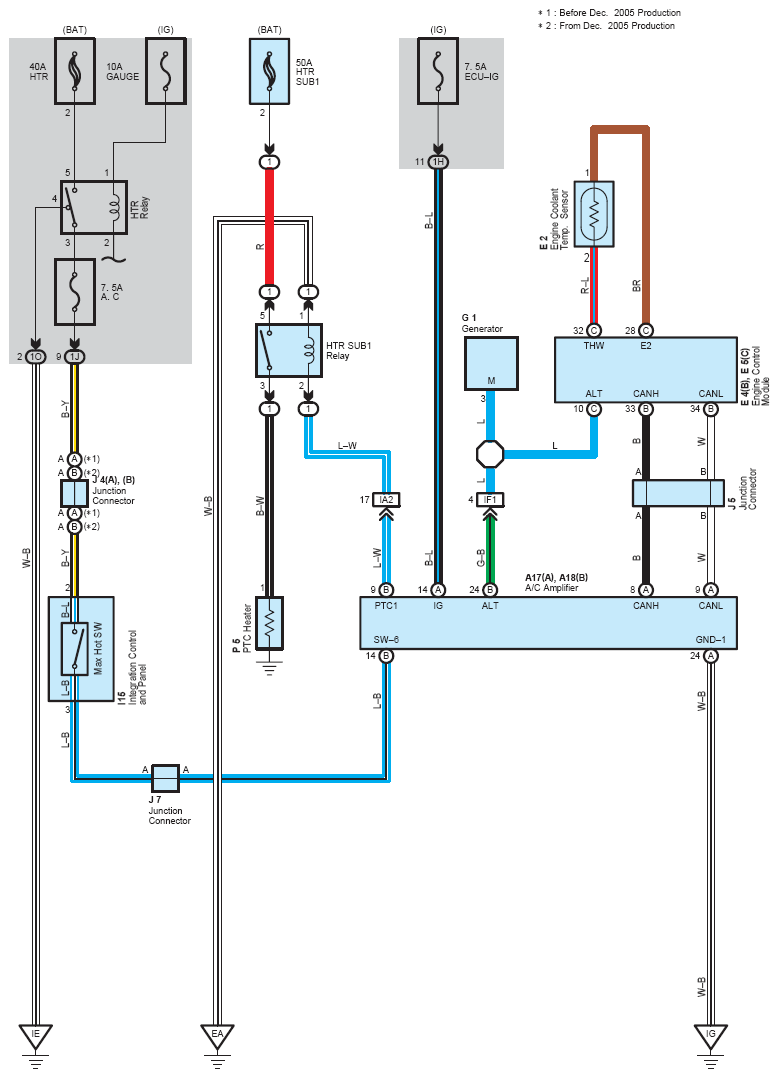

Fig 1: PTC Heater System Wiring Diagram
G08759061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
