Two Way Flow Heater: Notes

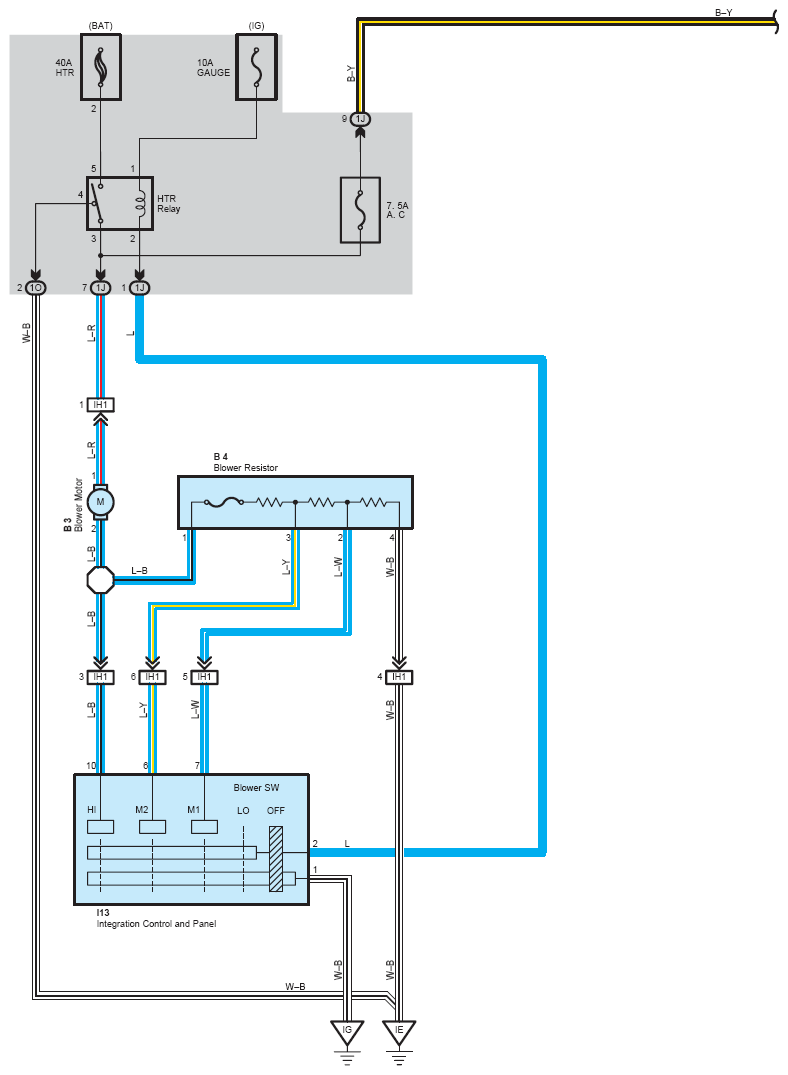

Fig 1: Two Way Flow Heater System Wiring Diagram (1 Of 2)
G08759059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

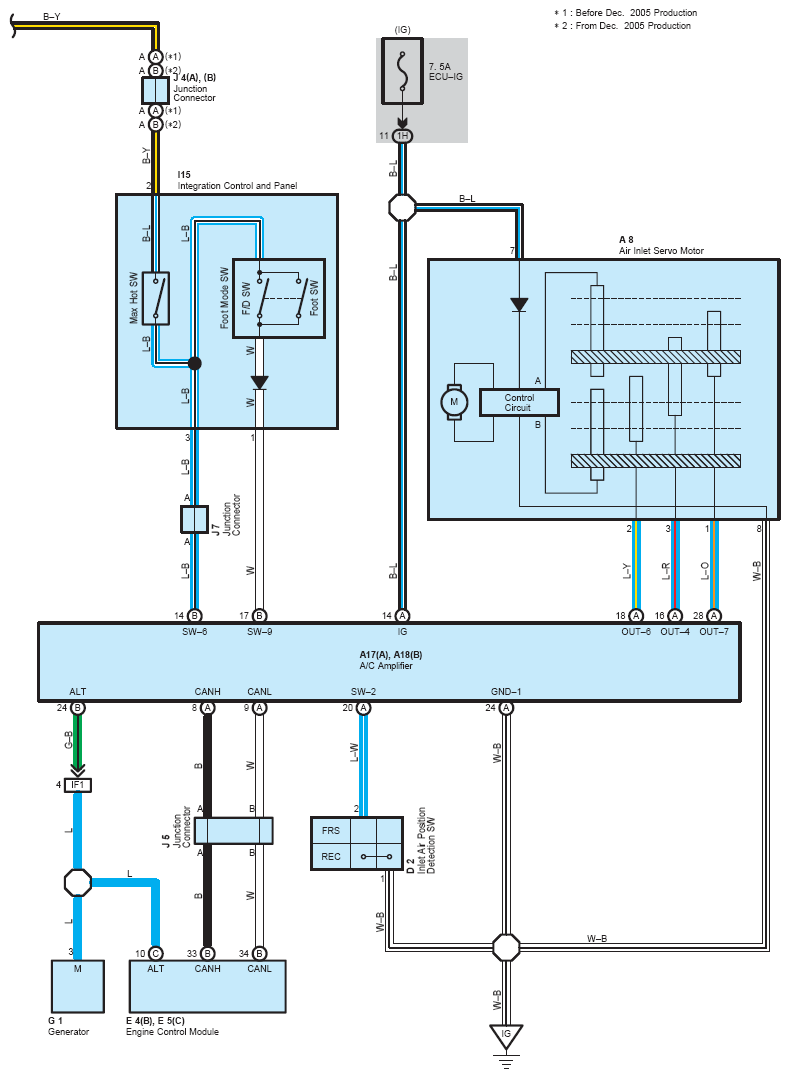

Fig 2: Two Way Flow Heater System Wiring Diagram (2 Of 2)
G08759060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
