Rear Console Box: Disassembly

  1. REMOVE STEREO JACK ADAPTER ASSEMBLY
    1. Detach the 2 claws and remove the stereo jack adapter.
    2. Disconnect the connectors.

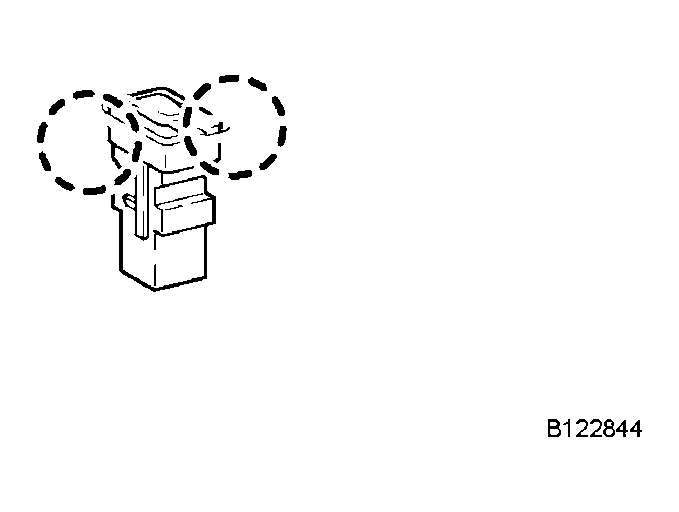

      Fig 1: Detaching Claws For Removing Stereo Jack Adapter
      G04229595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
