Rear Console Box: Installation

INSTALL REAR CONSOLE BOX ASSEMBLY

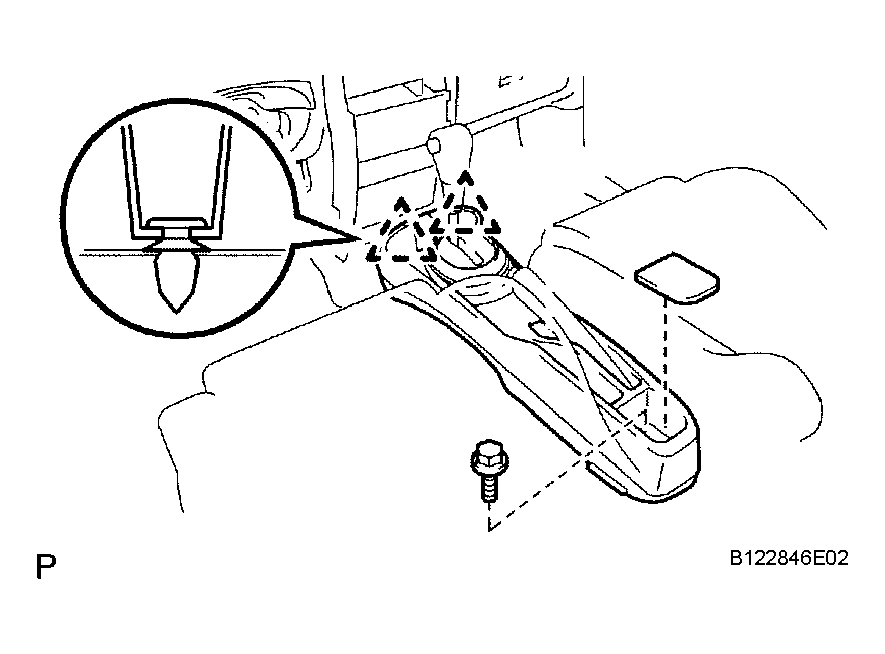

1. Attach the 2 clips to install the console box.
2. Connect the connector.
3. Install the screw.
4. Install the console box carpet.

  Fig 1: Installing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

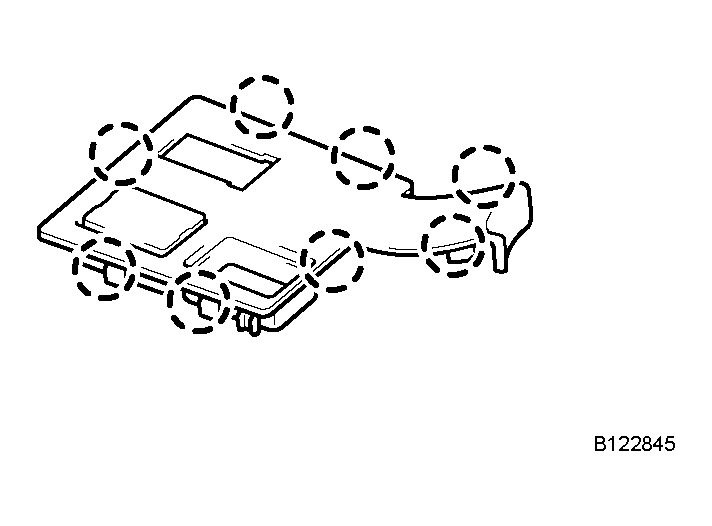

5. Attach the 8 claws to install the rear console box cover.
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

Fig 2: Attaching Claws To Install Rear Console Box Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
