Combination Meter: Installation

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector and install the combination meter.
2. Install the 3 screws.

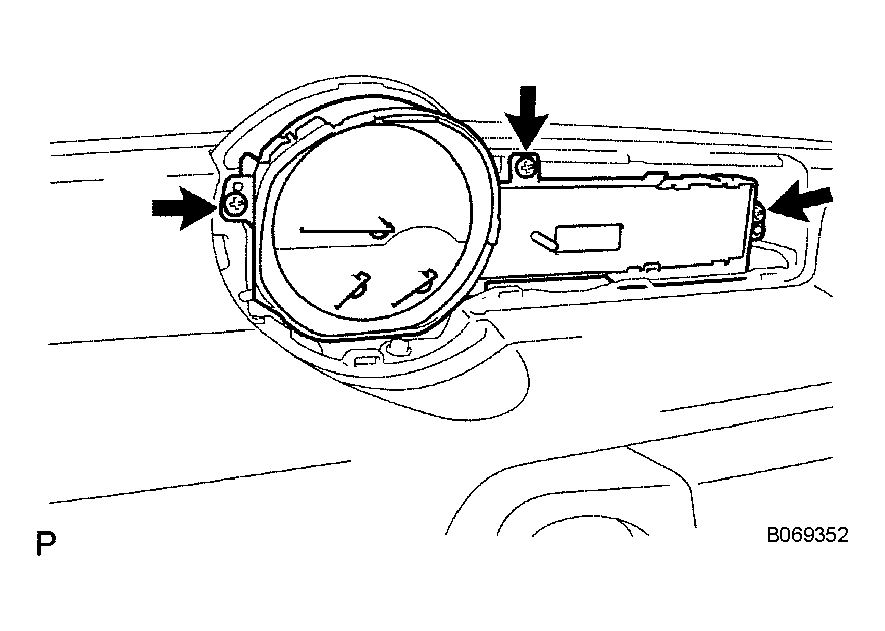

  Fig 1: Installing 3 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL
1. Attach the 7 claws and 2 clips to install the instrument cluster finish panel.
2. Install the clip.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see PROBLEM SYMPTOMS TABLE ).

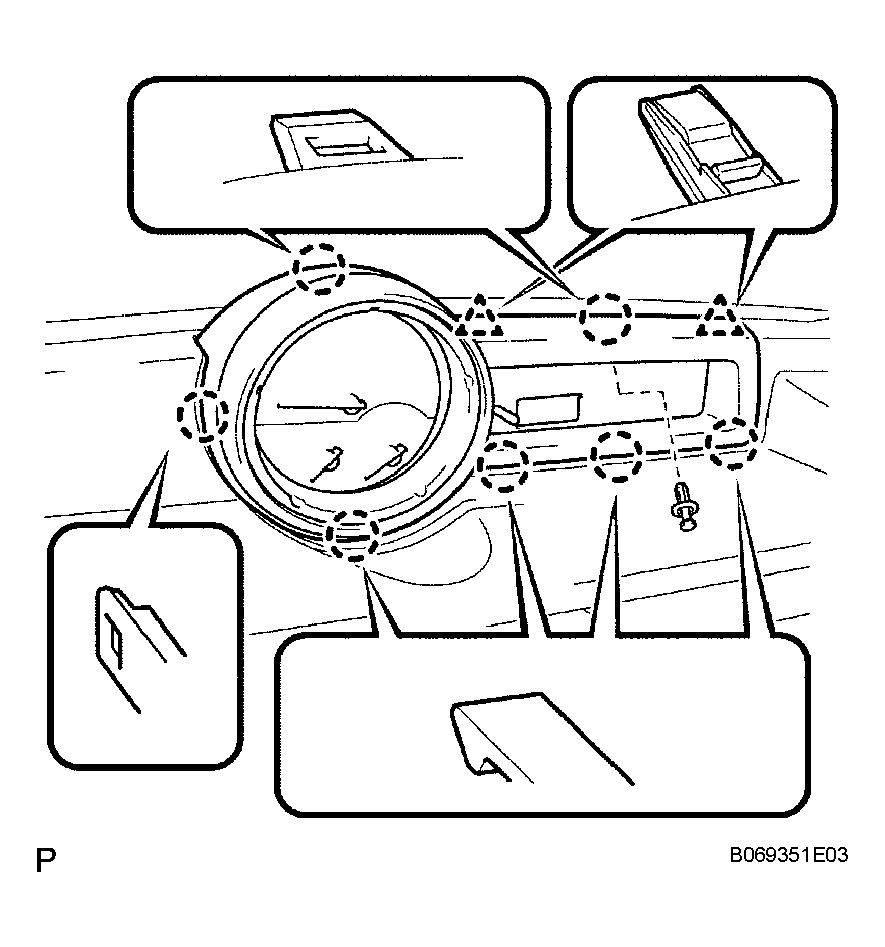

  Fig 2: Installing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
