Combination Meter: Reassembly

  1. INSTALL NO. 1 COMBINATION METER COVER
    1. Attach the 6 claws to install the combination meter cover.
  2. INSTALL COMBINATION METER GLASS
    1. Attach the 3 claws to install the combination meter glass.

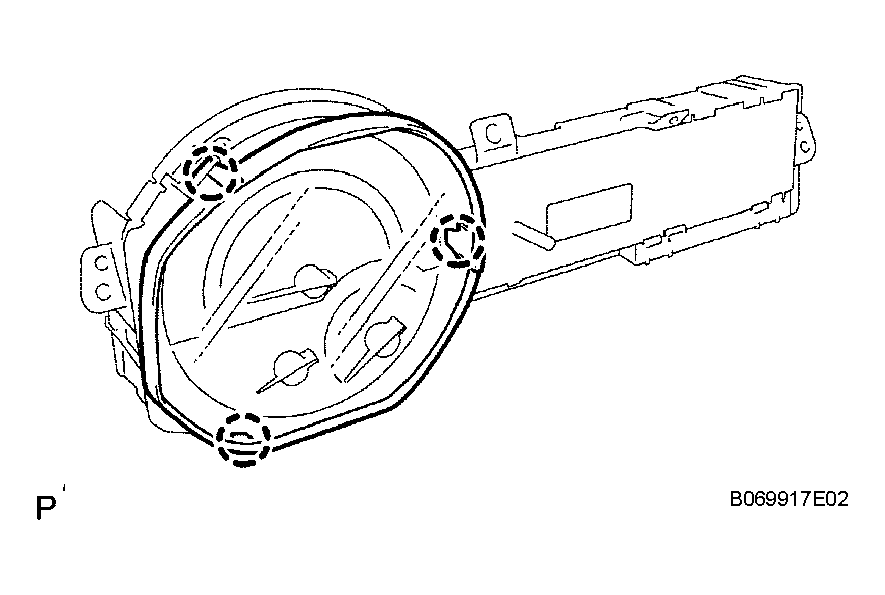

      Fig 1: Attaching Claws
      G04229366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
