Combination Meter: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE INSTRUMENT CLUSTER FINISH PANEL
1. Remove the clip.
2. Using a screwdriver, detach the 7 claws and 2 clips, and remove the instrument cluster finish panel.
  HINT:

  Tape the screwdriver tip before use.

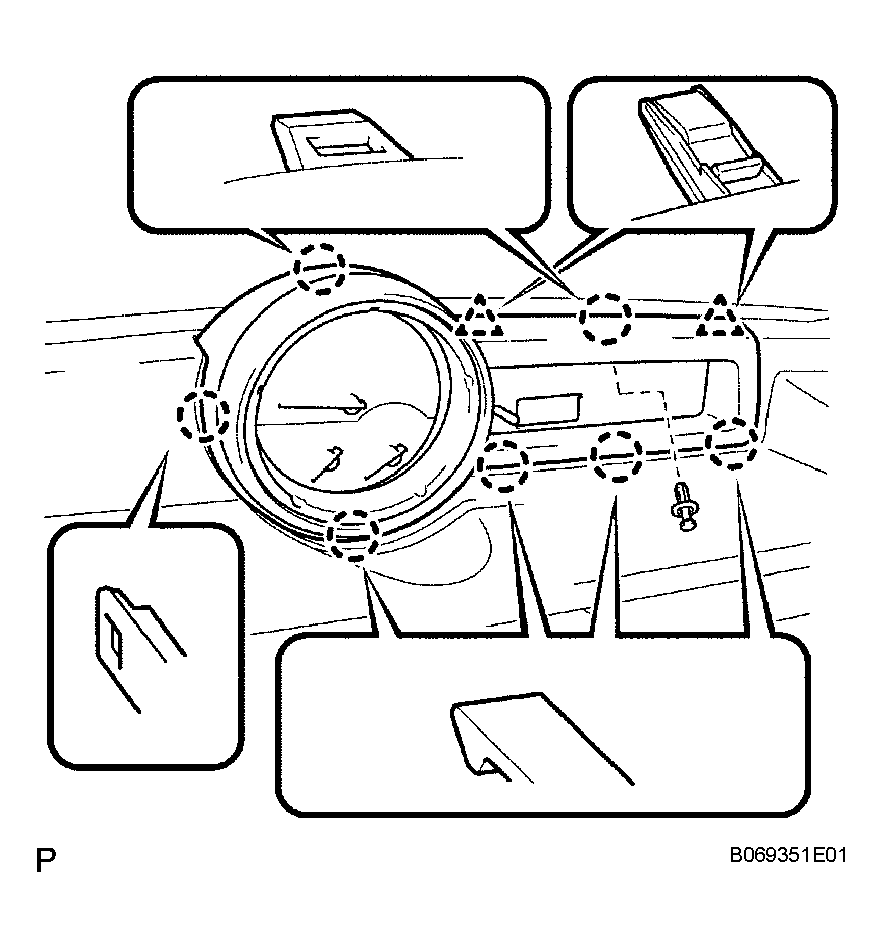

  Fig 1: Removing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSEMBLY
1. Remove the 3 screws.
2. Disconnect the connector, and remove the combination meter.

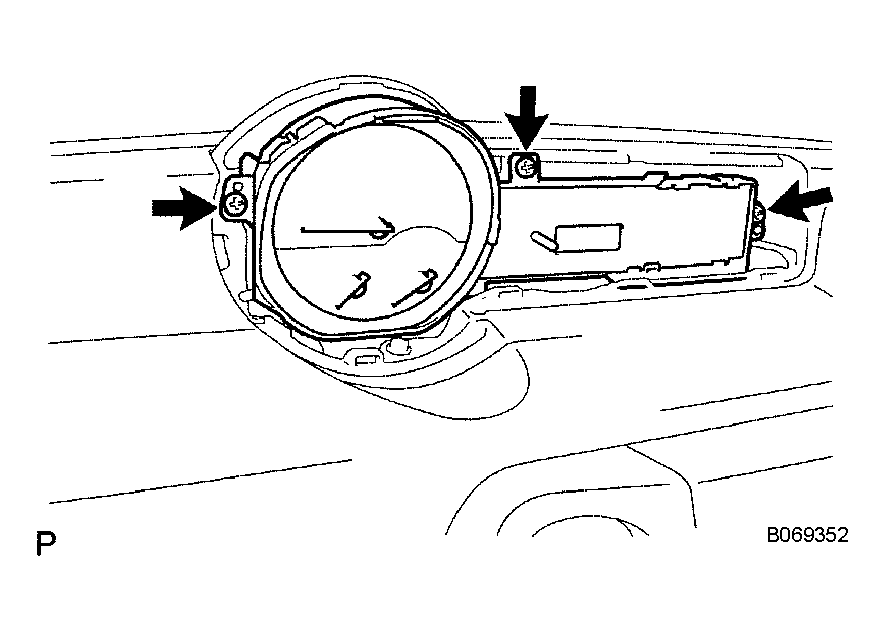

  Fig 2: Removing 3 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
