Automatic Transaxle Unit: Components

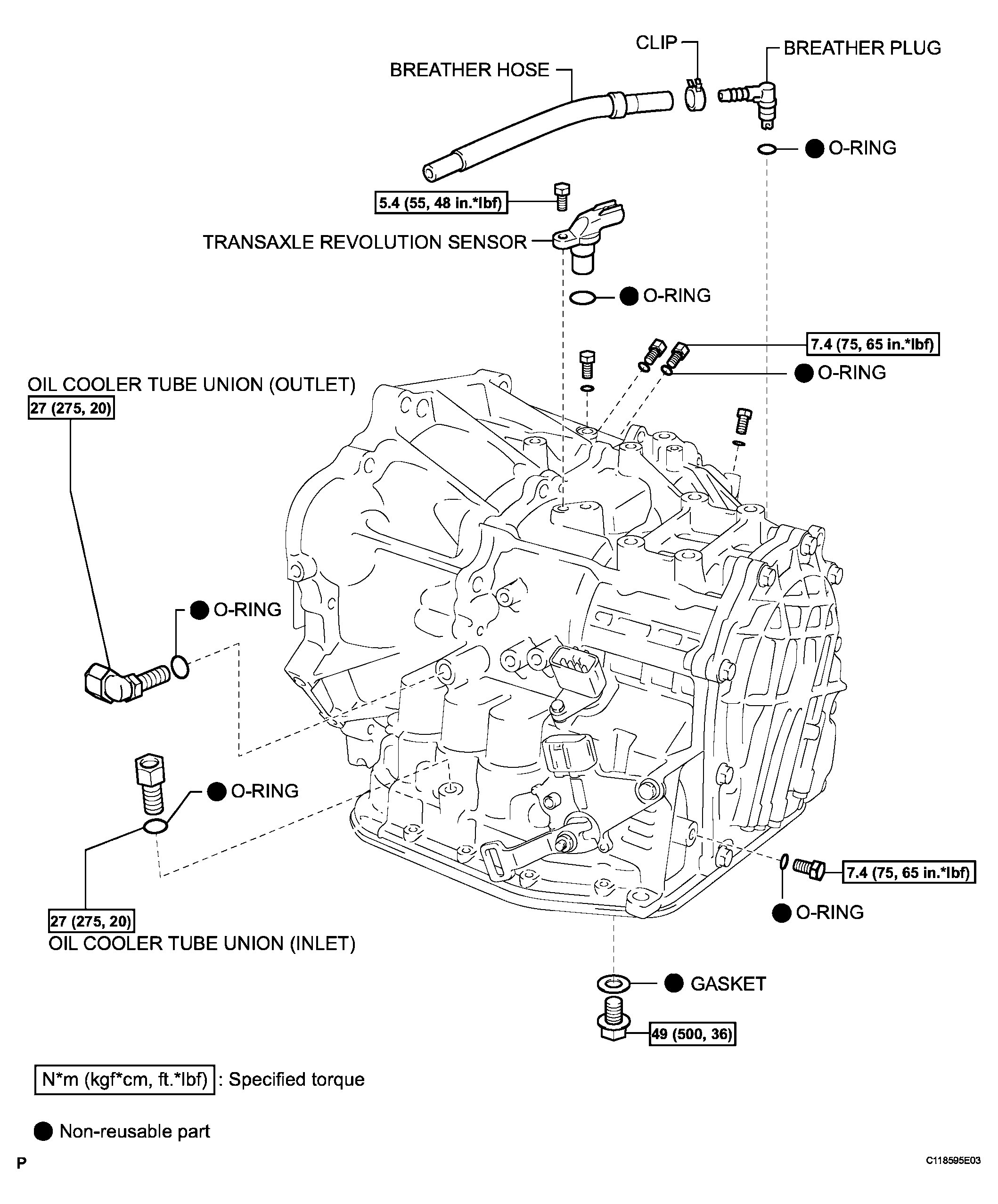

Fig 1: Identifying Automatic Transaxle Unit Components (1 Of 8)
G04227653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

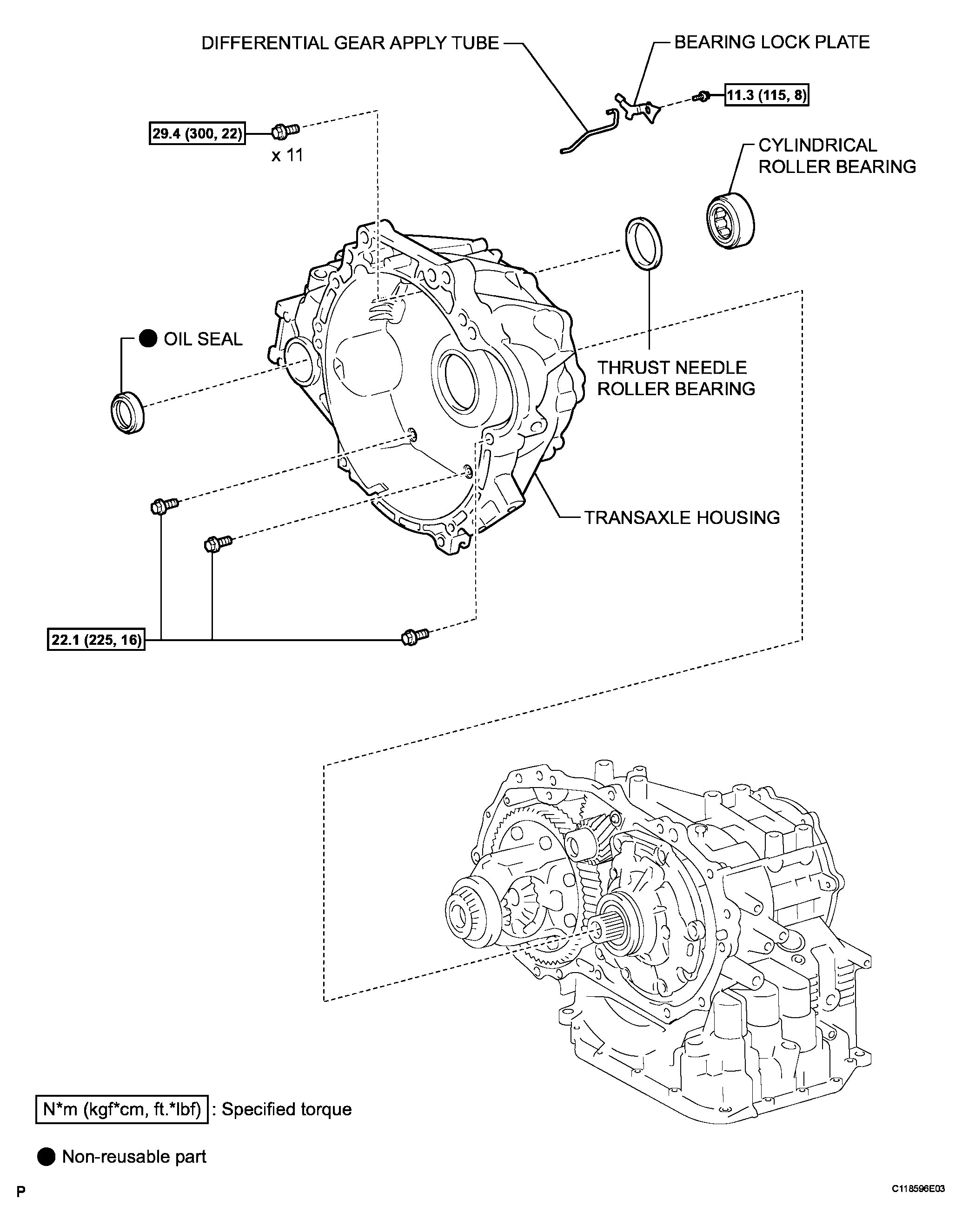

Fig 2: Identifying Automatic Transaxle Unit Components (2 Of 8)
G04227654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

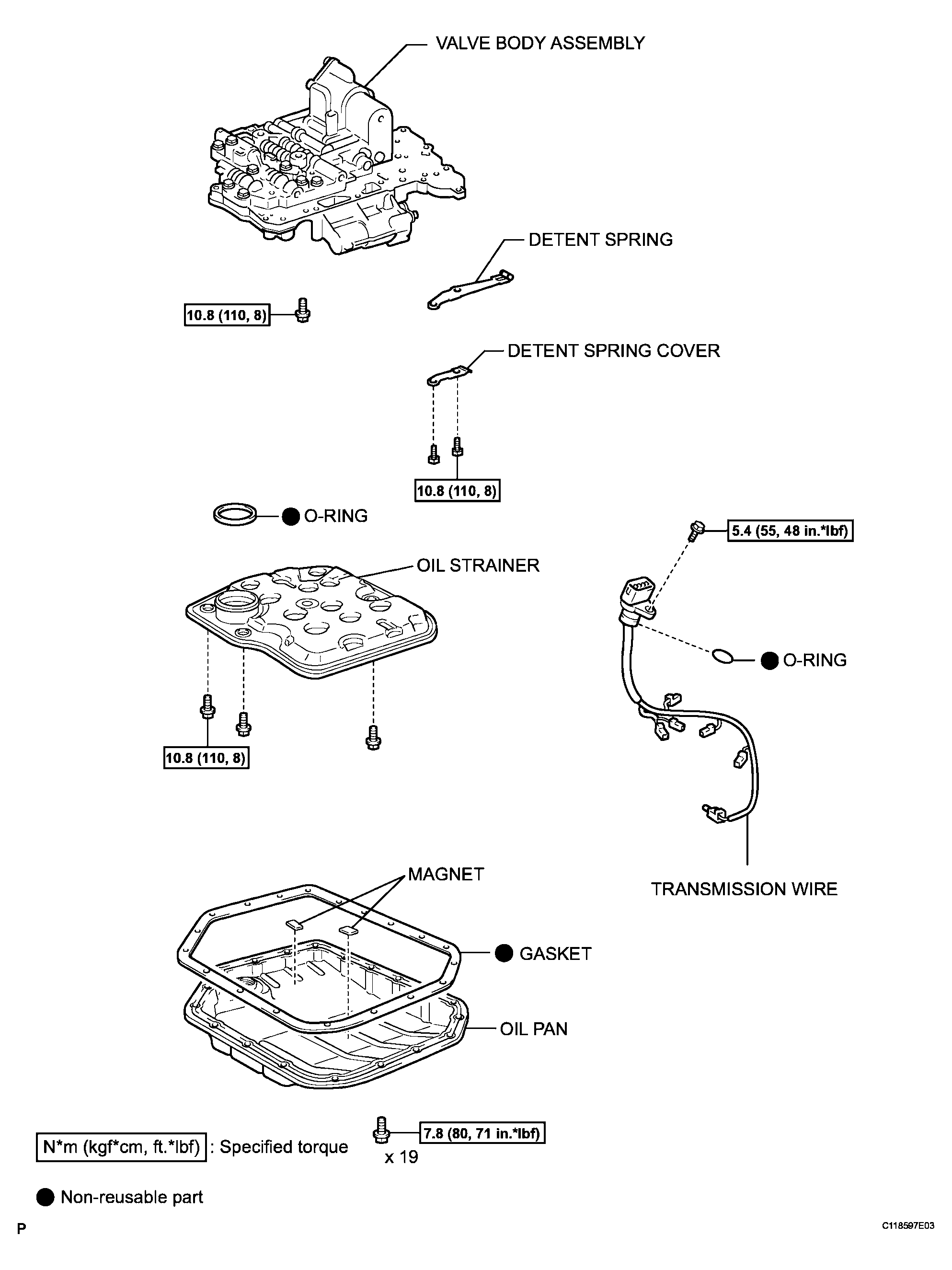

Fig 3: Identifying Automatic Transaxle Unit Components (3 Of 8)
G04227655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

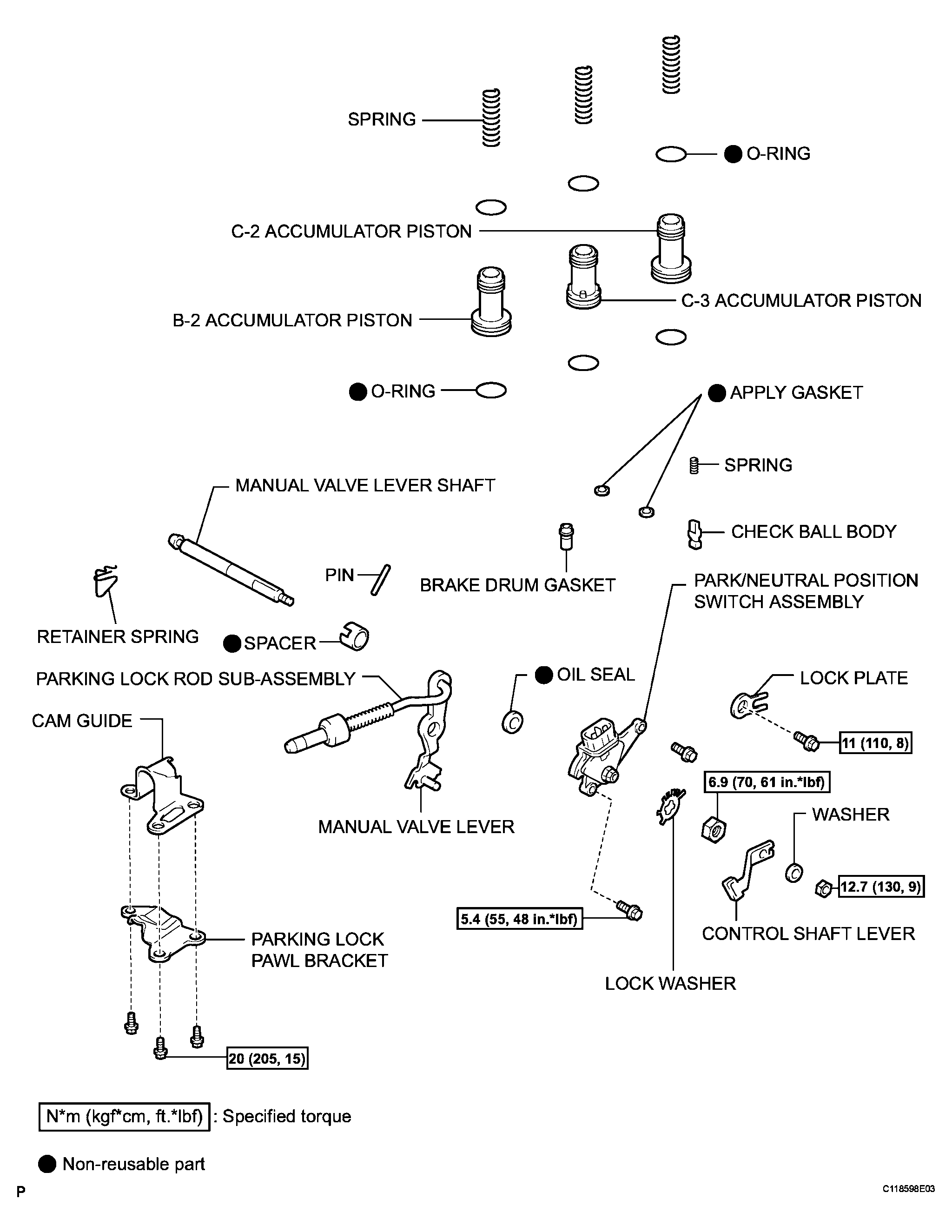

Fig 4: Identifying Automatic Transaxle Unit Components (4 Of 8)
G04227656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

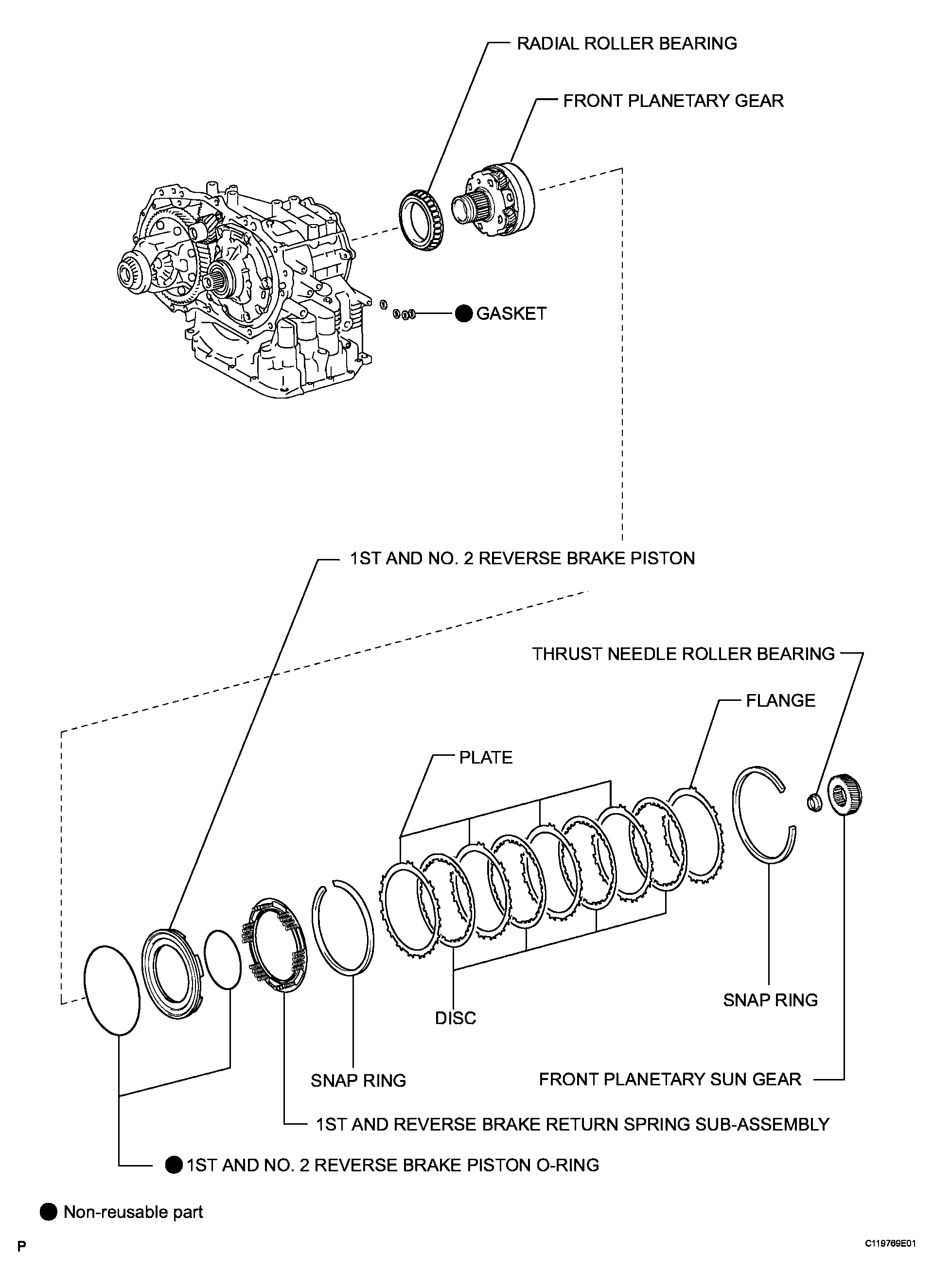

Fig 5: Identifying Automatic Transaxle Unit Components (5 Of 8)
G04227657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

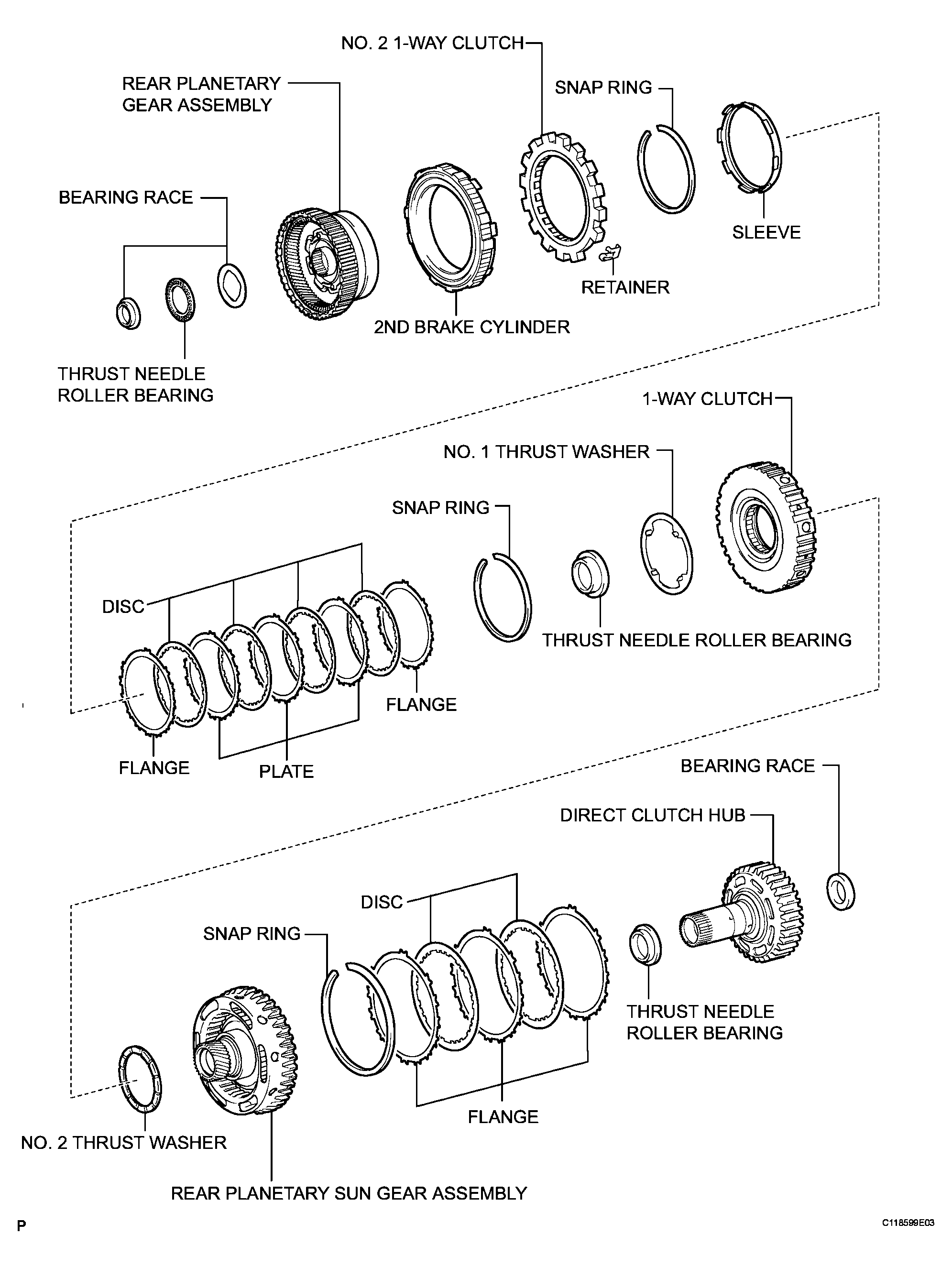

Fig 6: Identifying Automatic Transaxle Unit Components (6 Of 8)
G04227658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

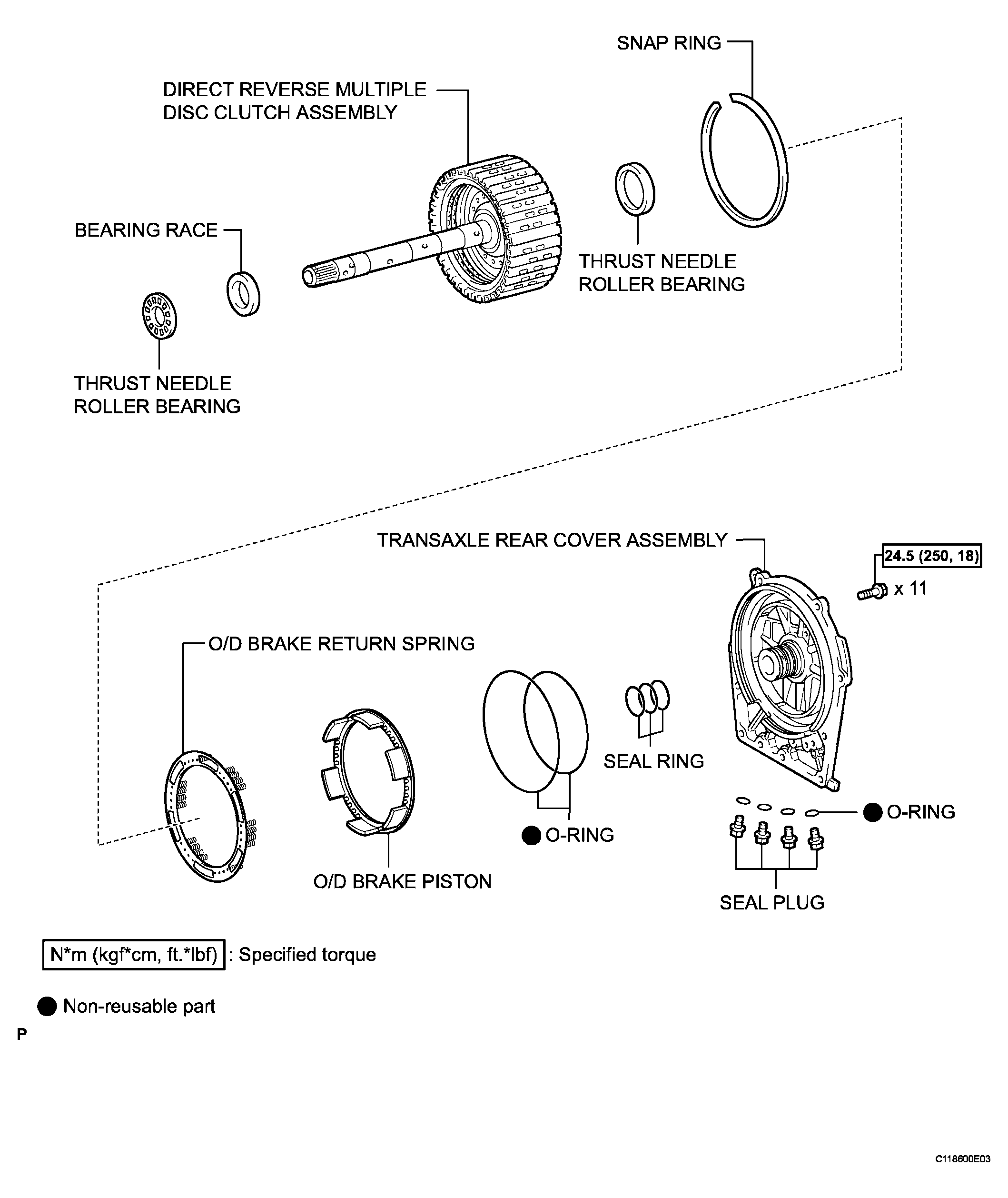

Fig 7: Identifying Automatic Transaxle Unit Components (7 Of 8)
G04227659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

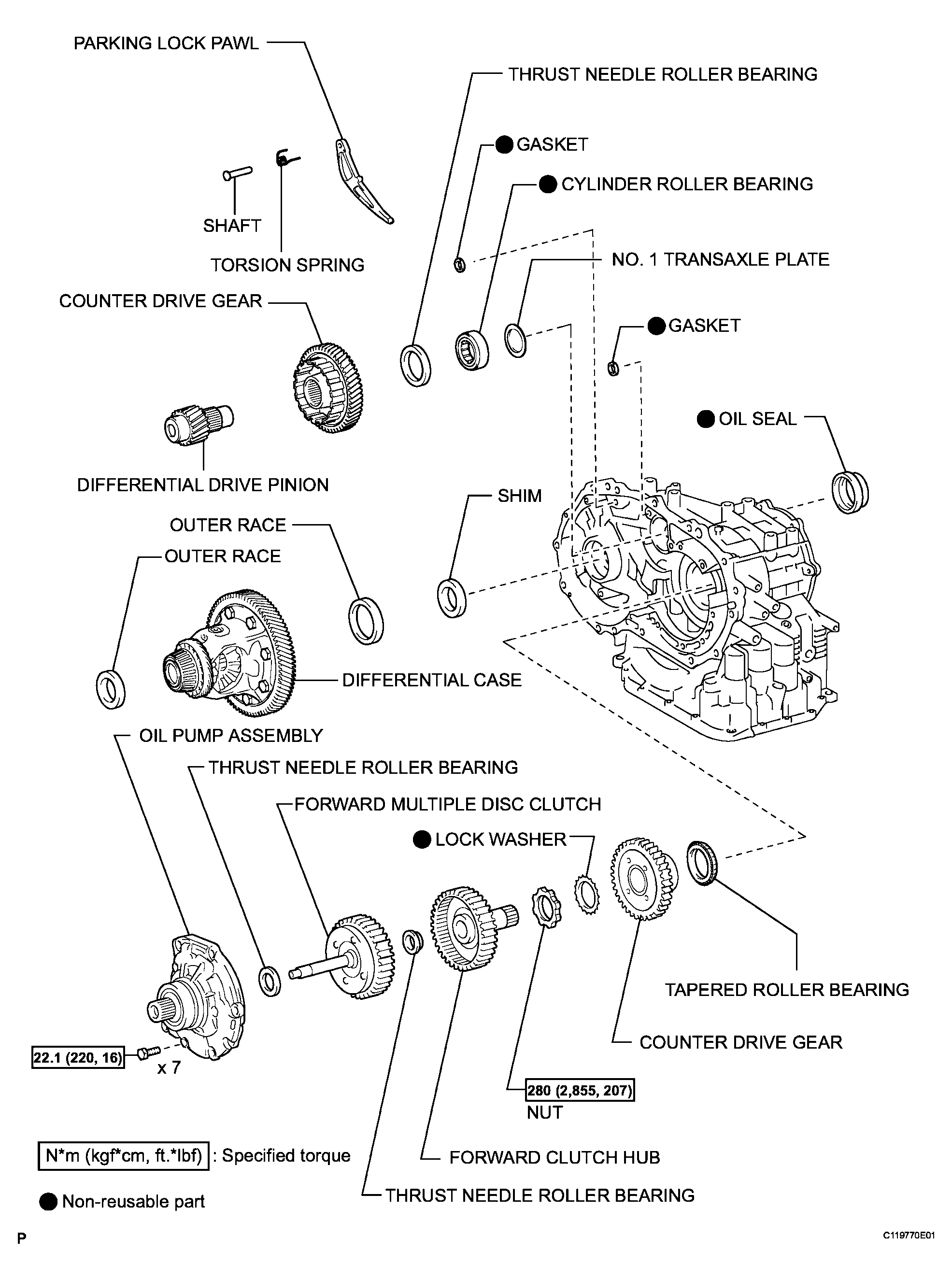

Fig 8: Identifying Automatic Transaxle Unit Components (8 Of 8)
G04227660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
