Power Mirror Control System: Inspection

  1. INSPECT OUTER MIRROR SWITCH ASSEMBLY
    1. Select L on the left/right adjustment switch: Measure the resistance of the switch.

      Standard resistance

      OUTER MIRROR SWITCH ASSEMBLY TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (L)

      Tester Connection Switch Condition Specified Condition
      4(VL)-8(B) 6(M+)-7(E) UP Below 1 Ω
      4(VL)-7(E) 6 (M+) - 8 (B) DOWN Below 1 Ω
      5(HL)-8(B) 6(M+)-7(E) LEFT Below 1 Ω
      5(HL)-7(E) 6 (M+) - 8 (B) RIGHT Below 1 Ω

      If the result is not as specified, replace the switch assembly.

    2. Select R on the left/right adjustment switch: Measure the resistance of the switch.

      Standard resistance

      OUTER MIRROR SWITCH ASSEMBLY TESTER CONNECTION AND SPECIFIED CONDITION REFERENCE (R)

      Tester Connection Switch Condition Specified Condition
      3 (VR)-8(B) 6(M+)-7(E) UP Below 1 Ω
      3 (VR)-7(E) 6 (M+) - 8 (B) DOWN Below 1 Ω
      2 (HR) - 8 (B) 6(M+)-7(E) LEFT Below 1 Ω
      2 (HR)-7(E) 6 (M+) - 8 (B) RIGHT Below 1 Ω

      If the result is not as specified, replace the switch assembly.

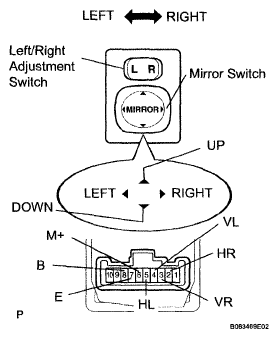

      Fig 1: Inspecting Outer Mirror Switch Assembly
      G04867441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
    1. Disconnect the mirror connector.
    2. Apply battery voltage to the mirror and check the operation of the mirror.

      OK

      OUTER REAR VIEW MIRROR ASSEMBLY MEASUREMENT CONDITION REFERENCE (LH)

      Measurement Condition Mirror Condition
      Battery positive (+) --> 3 (MV)
      Battery negative (-) --> 4 (COM)      		 Turns upward (A)
      Battery positive (+) --> 4 (COM)
      Battery negative (-) --> 3 (MV)      		 Turns downward (B)
      Battery positive (+) --> 5 (MH)
      Battery negative (-) --> 4 (COM)      		 Turns left (C)
      Battery positive (+) --> 4 (COM)
      Battery negative (-) --> 5 (MH)      		 Turns right (D)

      If the result is not as specified, replace the mirror assembly.

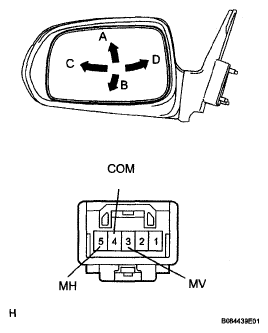

      Fig 2: Identifying Mirror And Mirror Connector
      G04867442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
    1. Disconnect the mirror connector.
    2. Apply battery voltage to the mirror and check the operation of the mirror.

      OK

      OUTER REAR VIEW MIRROR ASSEMBLY MEASUREMENT CONDITION REFERENCE (RH)

      Measurement Condition Mirror Condition
      Battery positive (+) --> 3 (MV)
      Battery negative (-) --> 4 (COM)      		 Turns upward (A)
      Battery positive (+) --> 4 (COM)
      Battery negative (-) --> 3 (MV)      		 Turns downward (B)
      Battery positive (+) --> 5 (MH)
      Battery negative (-) --> 4 (COM)      		 Turns left (C)
      Battery positive (+) --> 4 (COM)
      Battery negative (-) --> 5 (MH)      		 Turns right (D)

      If the result is not as specified, replace the mirror assembly.

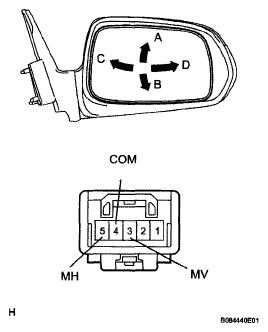

      Fig 3: Identifying Outer Rear View Mirror And Connector
      G04867443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
