Home >> Scion >> 2007 >> tC Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Windshield Glass >> Components

Windshield Glass: Components

Fig 1: Identifying Windshield Glass Components (1 Of 2)
G04867374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

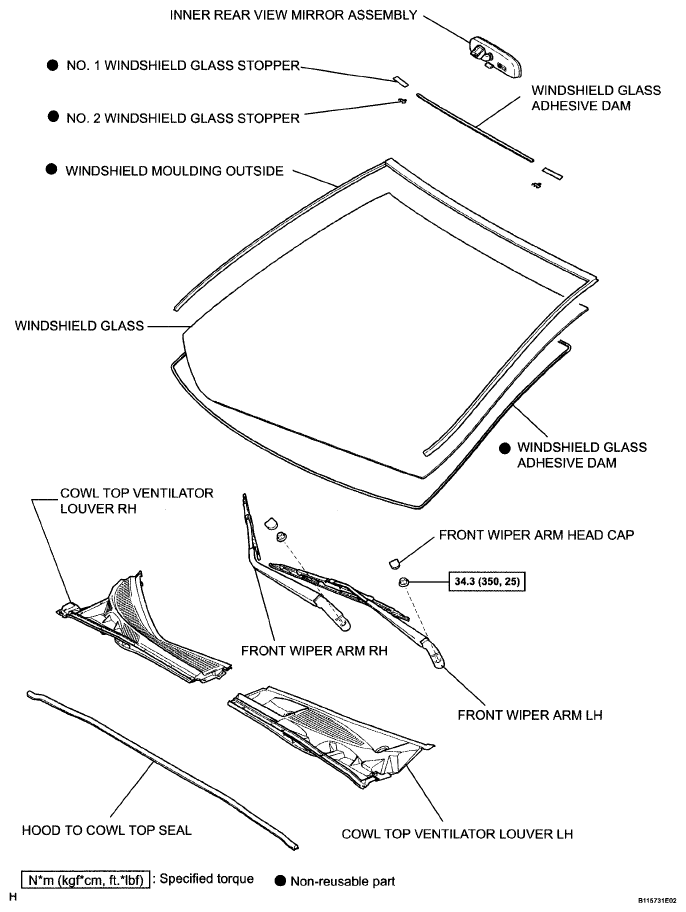

Fig 2: Identifying Windshield Glass Components (2 Of 2)
G04867375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
