Audio System: Notes

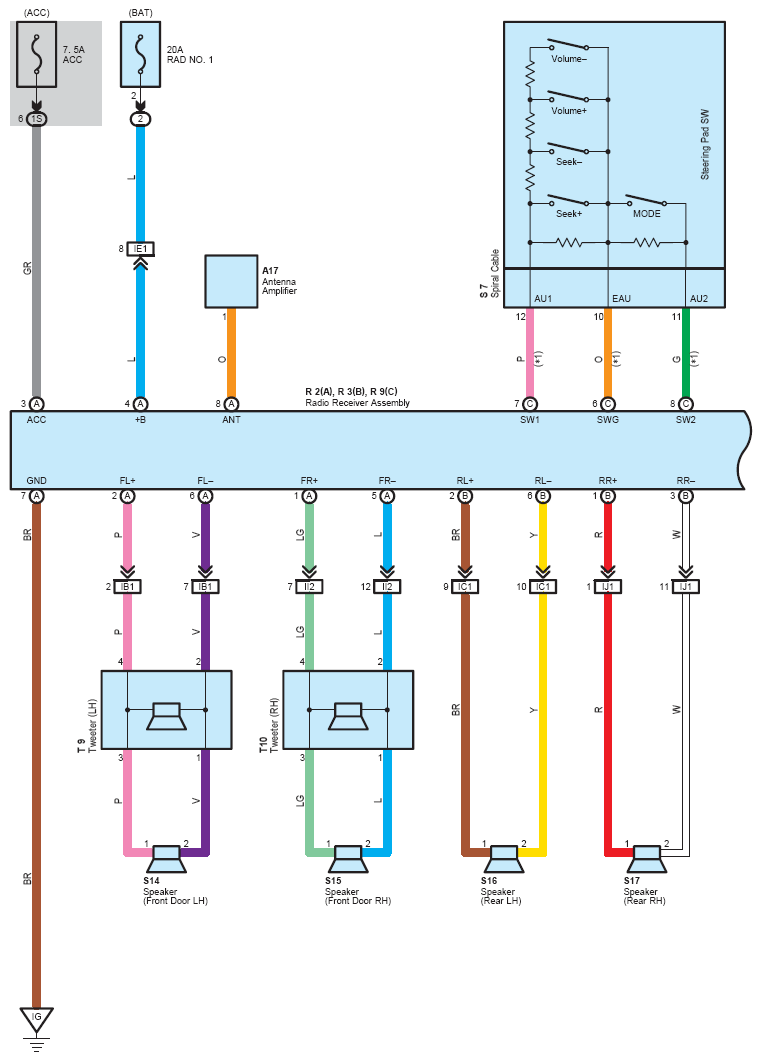

Fig 1: Audio System Wiring Diagram (1 Of 2)
G08759432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

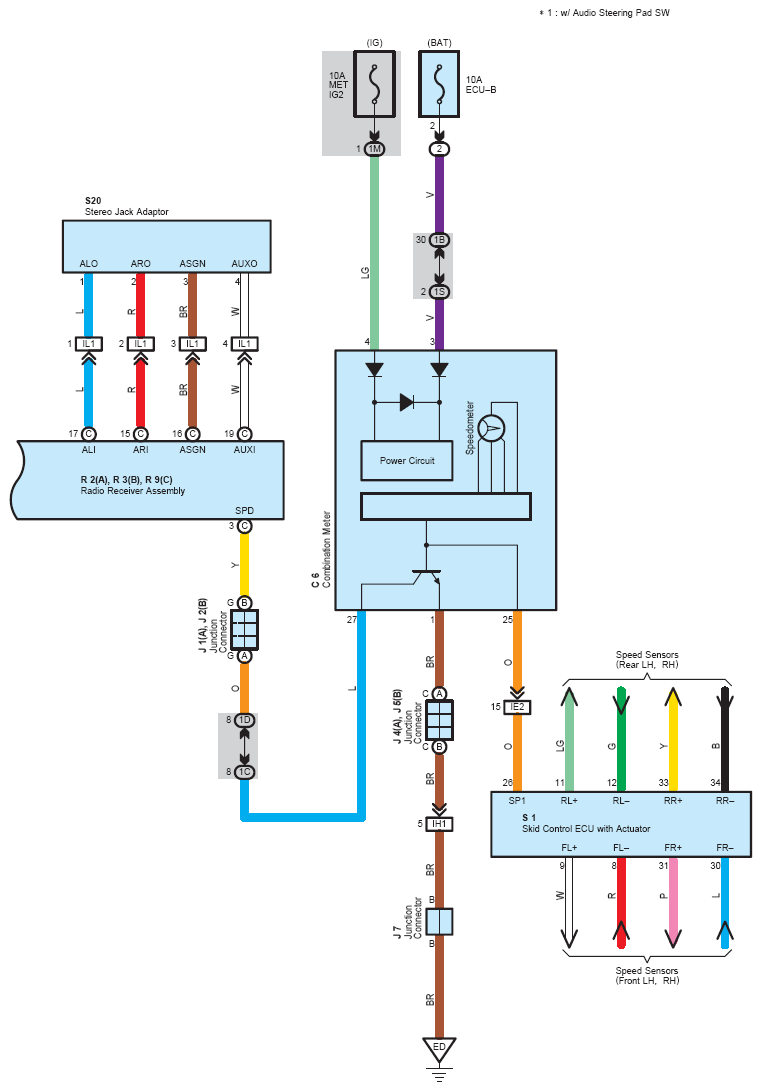

Fig 2: Audio System Wiring Diagram (2 Of 2)
G08759433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
