Home >> Scion >> 2007 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Key Reminder >> Notes

Key Reminder: Notes

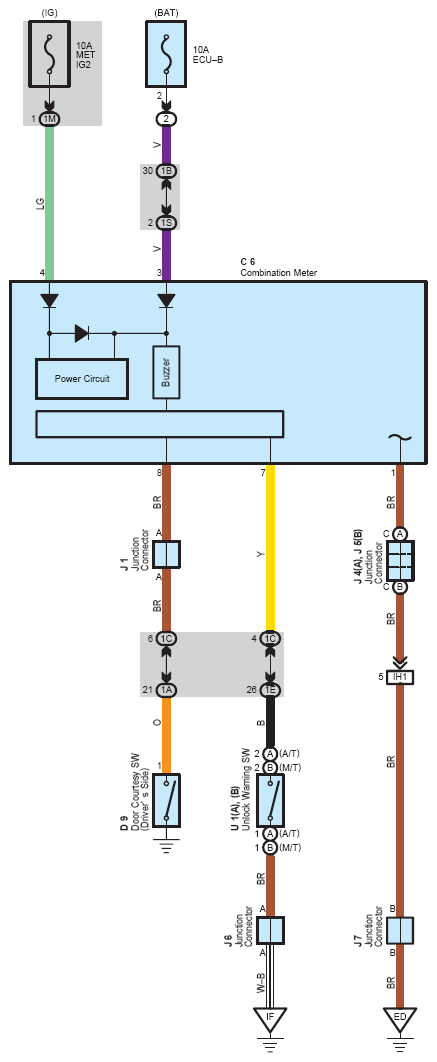

Fig 1: Key Reminder System Wiring Diagram
G08759428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
