Home >> Scion >> 2007 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Light Reminder >> Notes

Light Reminder: Notes

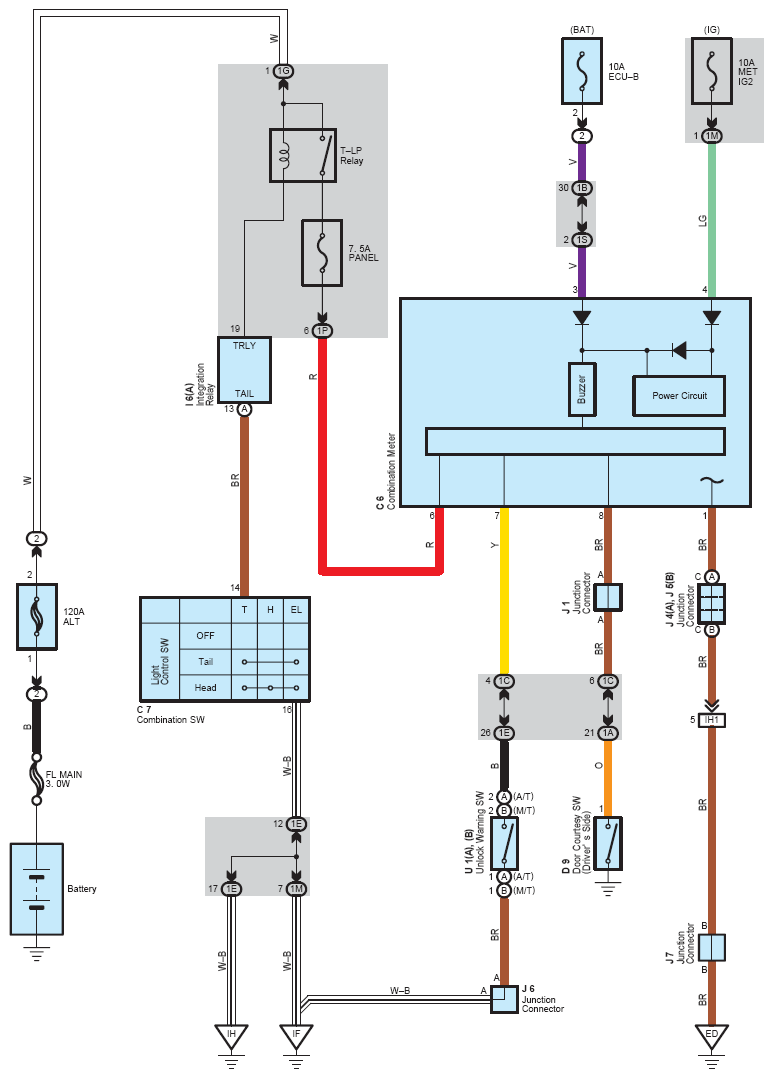

Fig 1: Light Reminder System Wiring Diagram
G08759429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
