Home >> Scion >> 2007 >> tC Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Power Window without Jam Protection >> Notes

Power Window without Jam Protection: Notes

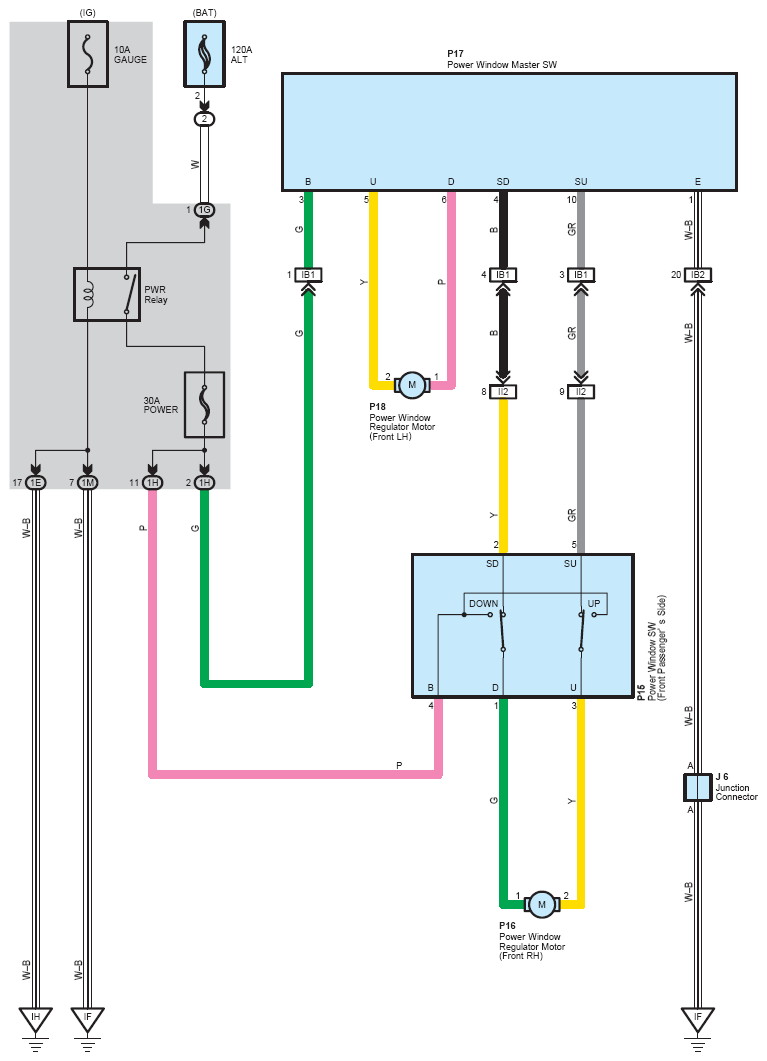

Fig 1: Power Window Without Jam Protection System Wiring Diagram

G08759396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
