OEM System Circuits: Taillight: Notes

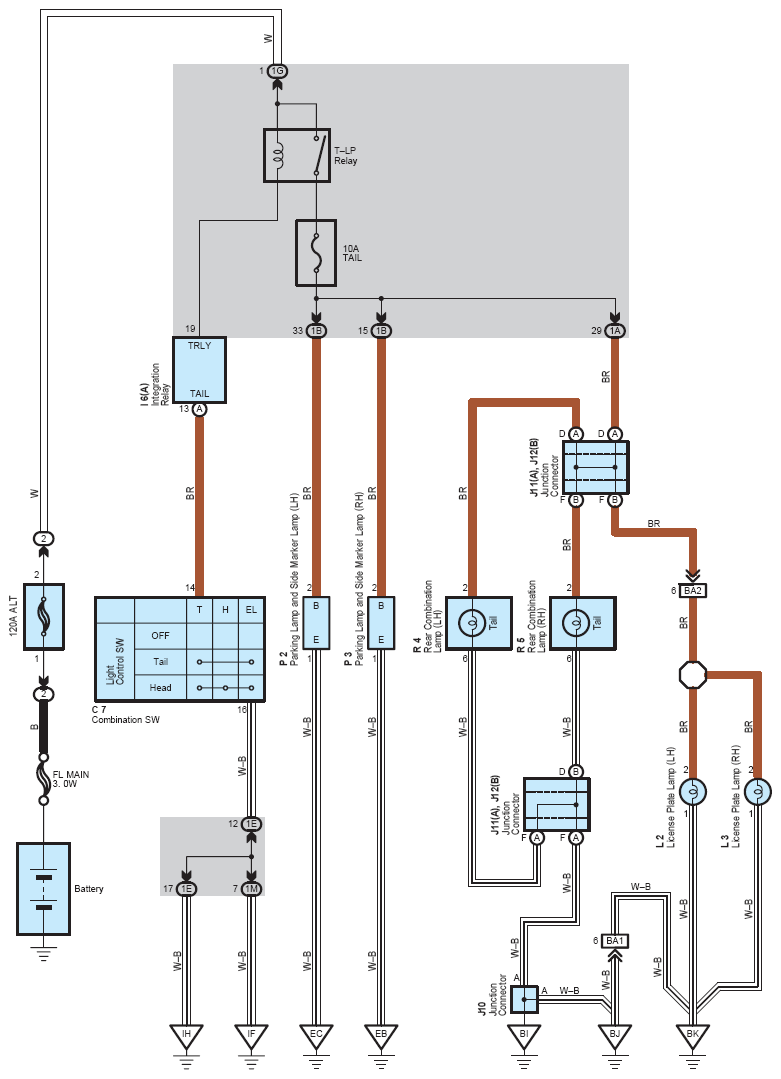

Fig 1: Taillight System Wiring Diagram

G08759388

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
