Lower Instrument Panel: Installation

  1. INSTALL LOWER INSTRUMENT PANEL ASSEMBLY
    1. Install the lower instrument panel, and check that the wire harness are not caught.

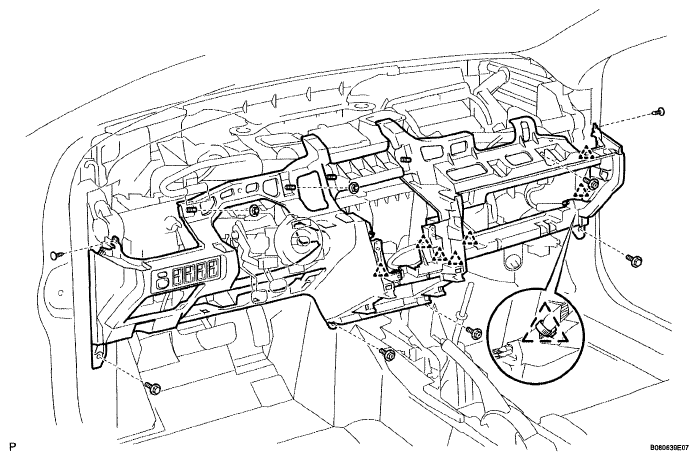

      Fig 1: Identifying Lower Instrument Panel Bolts And Nuts
      G04867495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 3 connectors.
    3. Attach the 7 wire harness clamps.
    4. Install the 2 clips.
    5. Install the 3 screws, 2 bolts and 2 nuts.
    6. Connect the hood lock control cable.
  2. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the No. 2 heater to register duct with the 3 clips.
      Fig 2: Identifying No. 2 Heater To Register Duct With Clips
      G04867496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Attach the 2 clips to install the cowl side trim.
    2. Install the clip.
      3. Fig 3: Identifying Clips For Cowl Side Trim
      G04867497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and LH side.

  5. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Attach the 12 claws to install the front door scuff plate LH.
  6. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

  7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Install the instrument panel under cover, as shown in the illustration.
    2. Attach the 2 claws.
      3. Fig 4: Identifying Claws
      G04867498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Install the driver side knee airbag (see DRIVER SIDE KNEE AIRBAG ASSEMBLY ).
  9. INSTALL REAR CONSOLE BOX ASSEMBLY
    1. Connect the clamp and install the console box.
    2. Install the 2 bolts.
    3. Manual transaxle:

      Install the 2 screws.

    4. Automatic transaxle:

      Install the 4 screws.

      Fig 5: Identifying Screws And Bolts
      G04867499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the console box carpet.
    6. Connect the connector.
      Fig 6: Identifying Console Box Carpet And Connector
      G04867500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
    1. Attach the 7 claws to install the console upper rear panel.
      Fig 7: Identifying Claws For Console Upper Rear Panel
      G04867501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY (See  INSTALLATION  )
  12. INSTALL HEADLAMP DIMMER SWITCH ASSEMBLY (See  INSTALLATION  )
  13. INSTALL STEERING COLUMN COVER
  14. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )
  15. INSTALL STEERING WHEEL PAD ASSEMBLY (See  INSTALLATION  )
  16. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY
    1. Install the upper instrument panel (see INSTALLATION  ).
  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  18. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  19. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
