Home >> Scion >> 2007 >> tC Base, Automatic >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Front Seat Inner Belt Assembly >> Components

Front Seat Inner Belt Assembly: Components

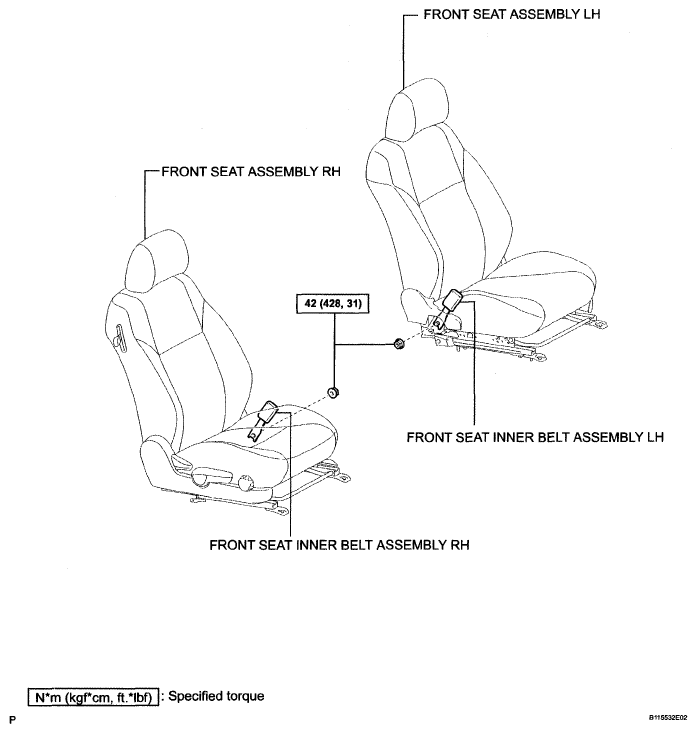

Fig 1: Identifying Front Seat Inner Belt Assembly Components With Specifications

G04866920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
