System Diagram

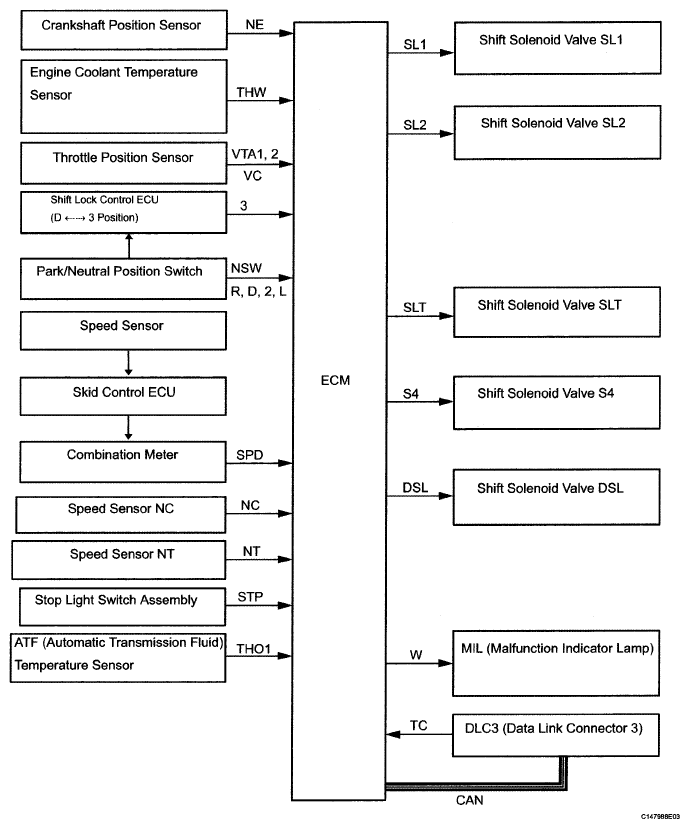

The configuration of the electronic control system in the U241E automatic transaxles is as shown in the following chart.

Fig 1: Identifying Automatic Transaxle System Diagram
G04866047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
